SGM700 Digitizer
Configuration Menu -tCL- -continue-
Press key 2 <2 sec to enter the theoreatic calibration settings.

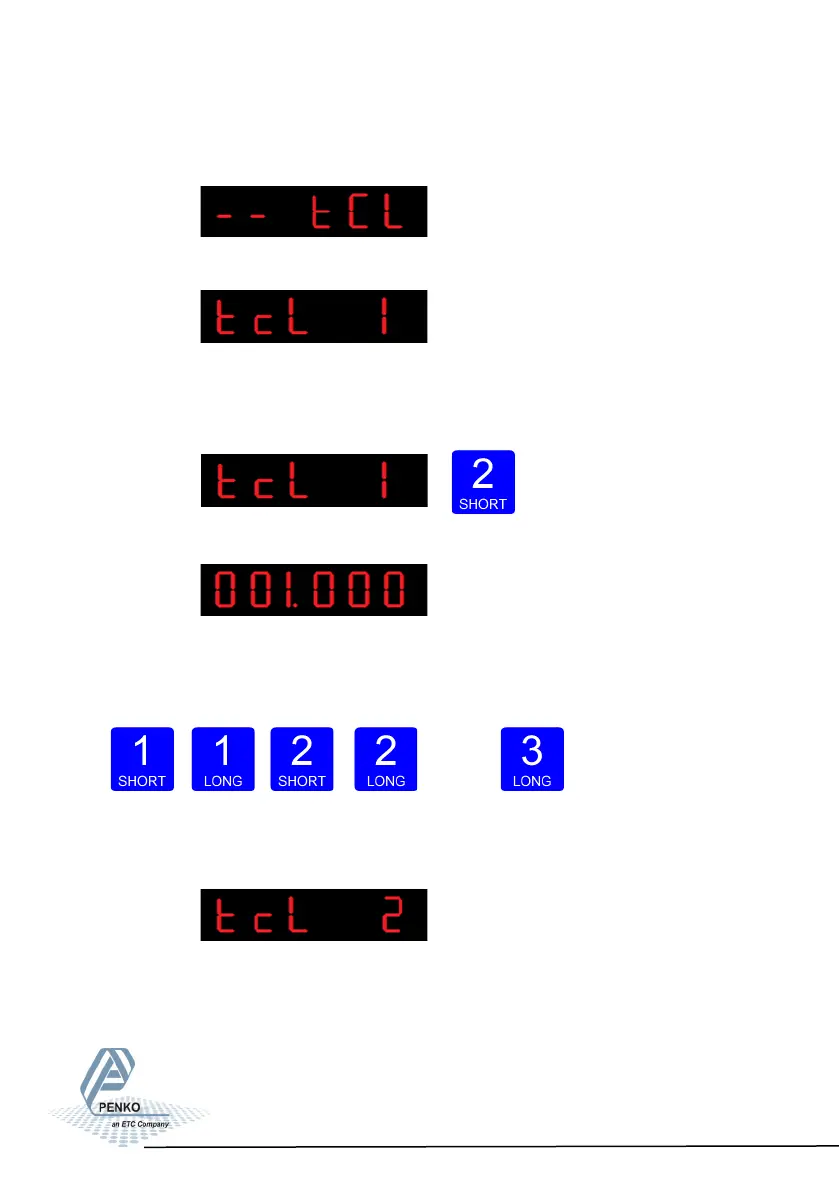

The following screen is visible:
In tcL 1 you can set the maximum loadcell load. When more then one loadcell is
used all loadcells should have the same maximum load. Press key 2 <2 sec. to
set the maximum load.
The following screen is visible:
Use key 1 and key 2 to enter the maximum load of
the loadcell(s). Key 1 is used for changing the number (1-9), key 2 is used for
changing the position of the
cursor. And press key 3 >2 sec.to set the maximum load.
Up Down
Left Right Confirm
The following screen is visible:
In tcL 2 you can set the loadcell sensitivity for loadcell 1. This information can be
found on the datasheet deliverd with the loadcell. Press key 2 <2 sec. to set the
loadcell sensitivity.
85
To Next Page
