24 V DC - Design

Electronics

Position measuring

system with LEDs

Service interface

DIP switches

for LEDs

Teach-In

button

Valve

control / monitor

LEDs for valves

Valve 1

Valve 2

Valve 3

Power supply

24 V DC

GND

Output position 1

(0/24 V, PNP)

Output position 2

(0/24 V, PNP)

Output position 3

(0/24 V, PNP)

Output ext. initiator

(0/24 V, PNP)

Input solenoid valve 1

(0/24 V)

Input solenoid valve 2

(0/24 V)

Input solenoid valve 3

(0/24 V)

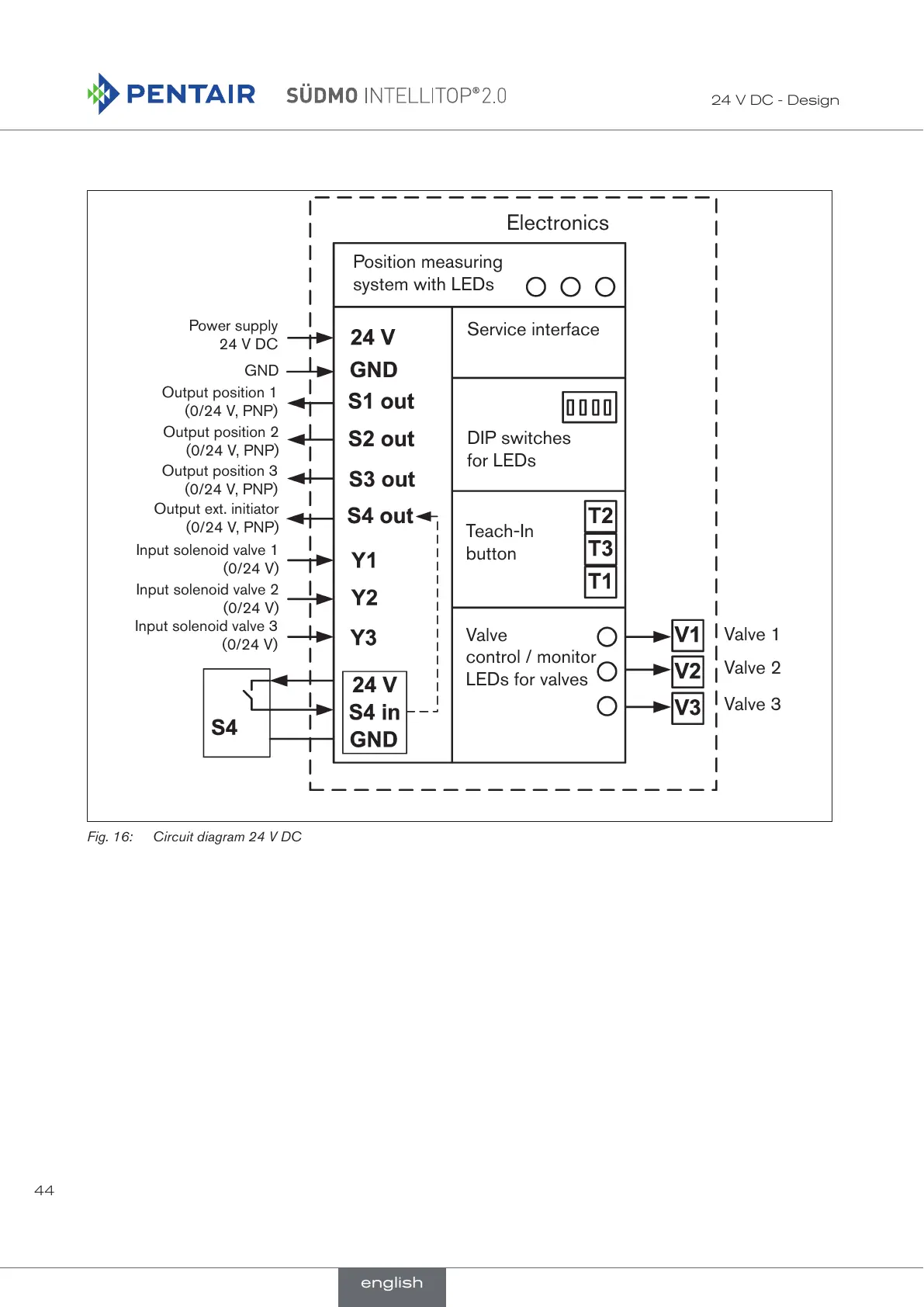

Fig. 16: Circuit diagram 24 V DC
