15
A1 Assembling the base with Ledger UHV 150
Standards and Ledgers
Pos. Component Qty.
3 Ledger UH Plus 2x
3a Ledger UH 75 Plus 4x
6 Standard UVR 300 4x
15 Ledger-to-Ledger Coupler UHA
Half with Spigot 2x
17 Locking Pin Ø 48/57 4x
Assembly
1. Place Ledger-to-Ledger Coupler
UHA (15) on the Ledger UHV 150 (4),
do not yet secure wedges for align-
ment. (Fig. A1.03c)
2. Insert Standards UVR (6).
(Fig. A1.03b)
3. Connect Base Standards UVB (2)
and Ledger-to-Ledger Couplers UHA
(15) with Standards UVR (6) by
means of Locking Pins (17).
(Fig. A1.03c)
4. Attach Ledgers UH (3) and securely
fix with wedges. (Fig. A1.03a)
5. Securely fix wedges for Ledger to
Ledger UHA (15).
6. Attach Ledgers UH 75 (3a) and
securely fix wedges.

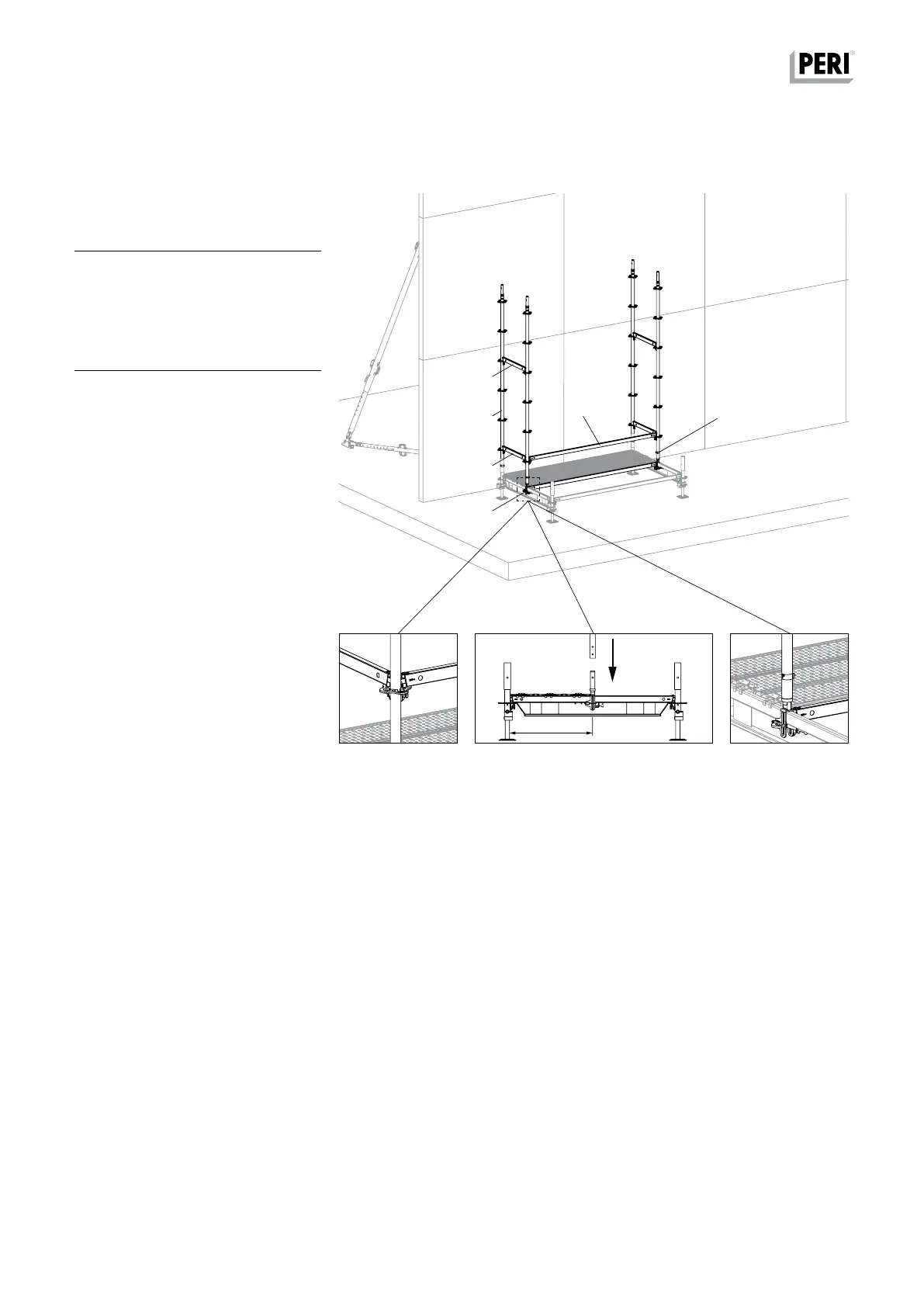

Fig. A1.03
Fig. A1.03a Fig. A1.03b Fig. A1.03c
75 cm
15
3a
6
3a
3
17
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
