Peri UP Flex - Access Decks, Decking and Guardrails

21
A2 Assembly of Extensions
Access decks, decking and
guardrails
Warning
Risk of falling!
 Use PPE to prevent falling.
Pos. Component Qty.
3 Ledger UH Plus 8x
3a Ledger UH 75 Plus 4x
7 Access Deck UAL-3 1x
8 Ladder Flex UEL 1x
9 Toeboard Wood UPF 2x
10 Steel Deck UDG 3x
11 Ledger Brace UBL 1x
Assembly
1. Mount Access Deck UAL (7) and
Steel Deck UDG (10) from below.
 Lift-off prevention devices drop
under the UH Ledger (3a) and
secure the decking.
2. Attach Ladder Flex UEL (8).
3. From the ladder or a safe working
position:
attach Ledger UH 75 (3a) and UH (3)
to the outer side.
From the decking:
mount ledgers as guardrails all the
way round from outside to inside.
Securely fix the wedges.
4. Attach Toeboard UPF (9) on the out-
side to the Standards.
5. Insert Ledger Brace UBL (11) with
the lower finger into the bottom
Ledger UH.
Insert the gravity pin into the holes
of the top ledger, turn pin to secure.
(Fig. A2.02)

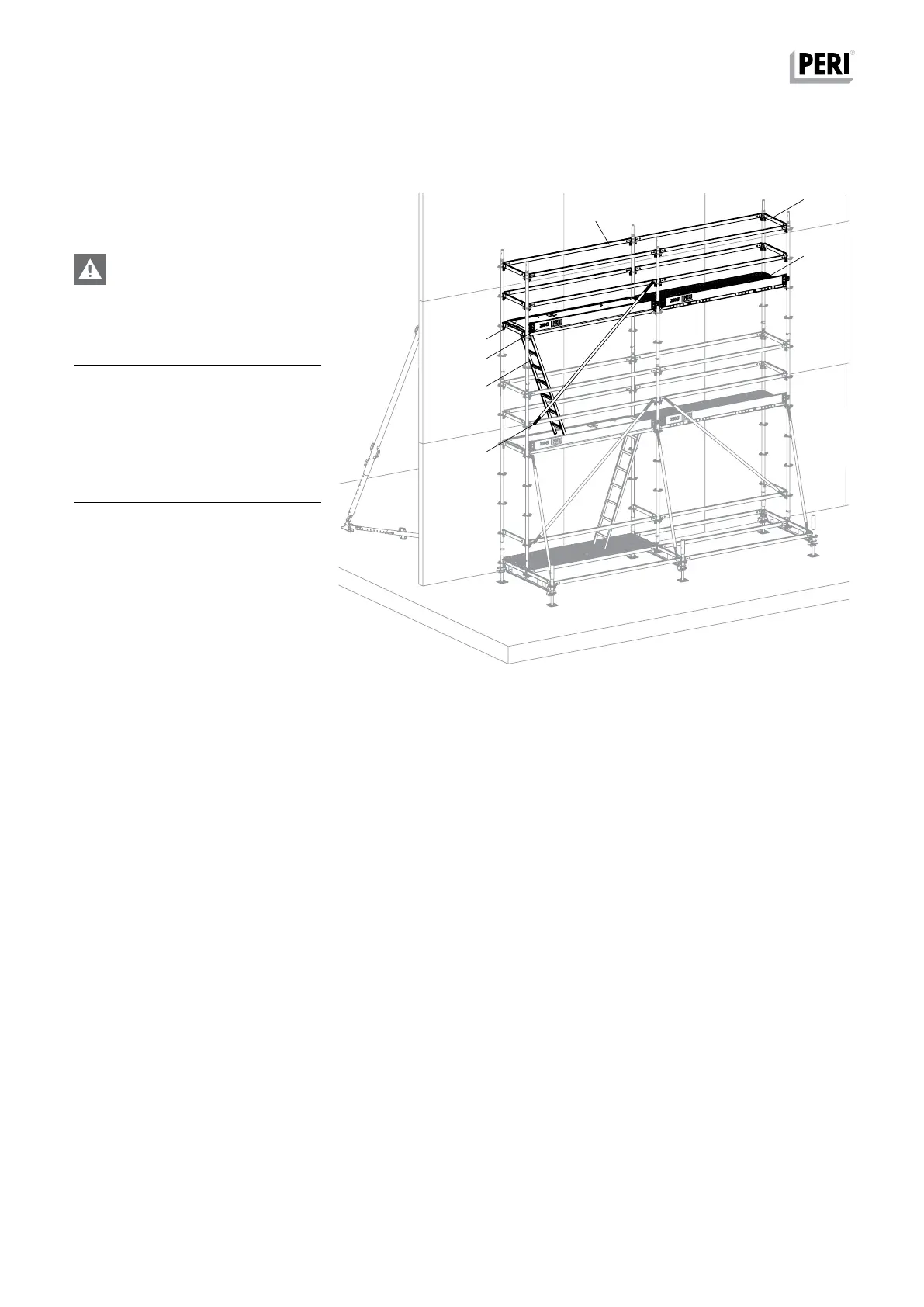

Fig. A2.02
3
3a
10
7
8
11
9
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
