E5 Hatch UAF
As an alternative to the Access Deck
UAL-3, the Hatch UAF can be mounted.
Assembly
1. Attach Ledgers UH (3) and securely
fix with wedges.
2. Securely fix wedges for Ledg-
er-to-Ledger Coupler UHA (13a).
3. Install Ledger UH 75 (3a) on Ledg-
er-to-Ledger Couplers UHA (13a) at
spacings of 100 cm as support for

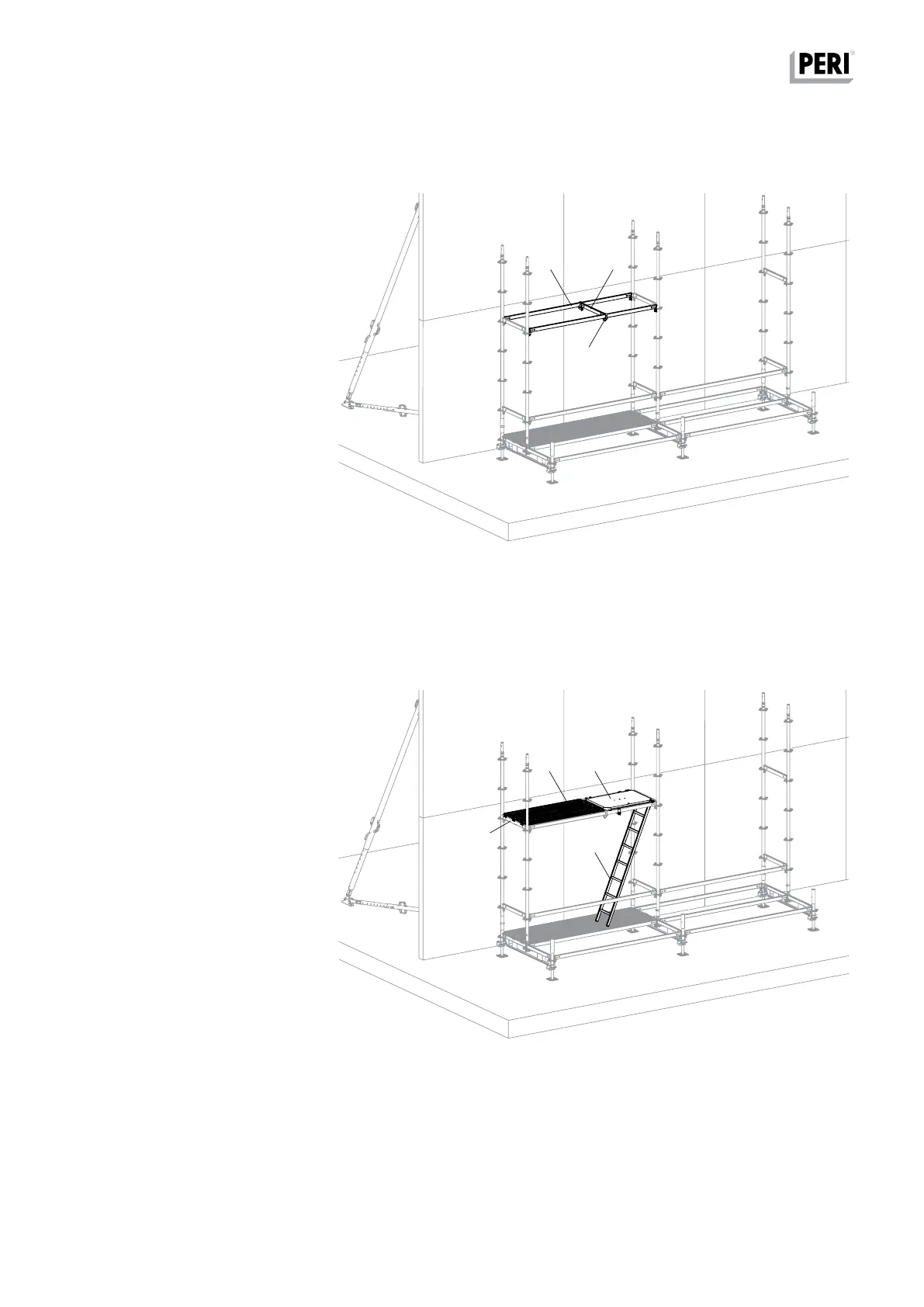

Hatch UAF. (Fig. E5.01)
4. Mount Hatch UAF (21) and Steel
Deck UDG (10). Standing position:
below.
J Lift-off prevention devices drop
under the UH Ledger (3a) and se-
cure the decking.
5. Attach Ladder UAF (22). (Fig. E5.02)
6. Additional assembly as described in
Sections A1 - A3 or B1 - B3.
Fig. E5.02
Fig. E5.01
3a3
13a
2110
22
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
3a
