16
A1 Assembling the base with Ledger UHV 150
Attachment of base level
The base unit scaffolding can be ex-
tended by up to 2 additional bays.
Width of each bay: ≤ 300 cm.
Pos. Component Qty.
1 Adjustable Base Plate UJB 2x
2 Base Standard UVB 24 2x
3 Ledger UH Plus 2x
4 Ledger UHV 150 Plus 1x
16 Spindle Locking UJS 2x
Assembly
1. Place Adjustable Base Plates (1) in
Base Standards (2) and attach Ledg-
er UH (3) in the rosettes.
2. Mount on base level.
3. Horizontally align Addition by adjust-
ing the Adjustable Base Plates (1).
4. Establish perpendicularity of the
base.
5. Secure wedges on all Ledgers using
a 500 g hammer.
6. Secure Adjustable Base Plate UJB
with Spindle Locking UJS (16).

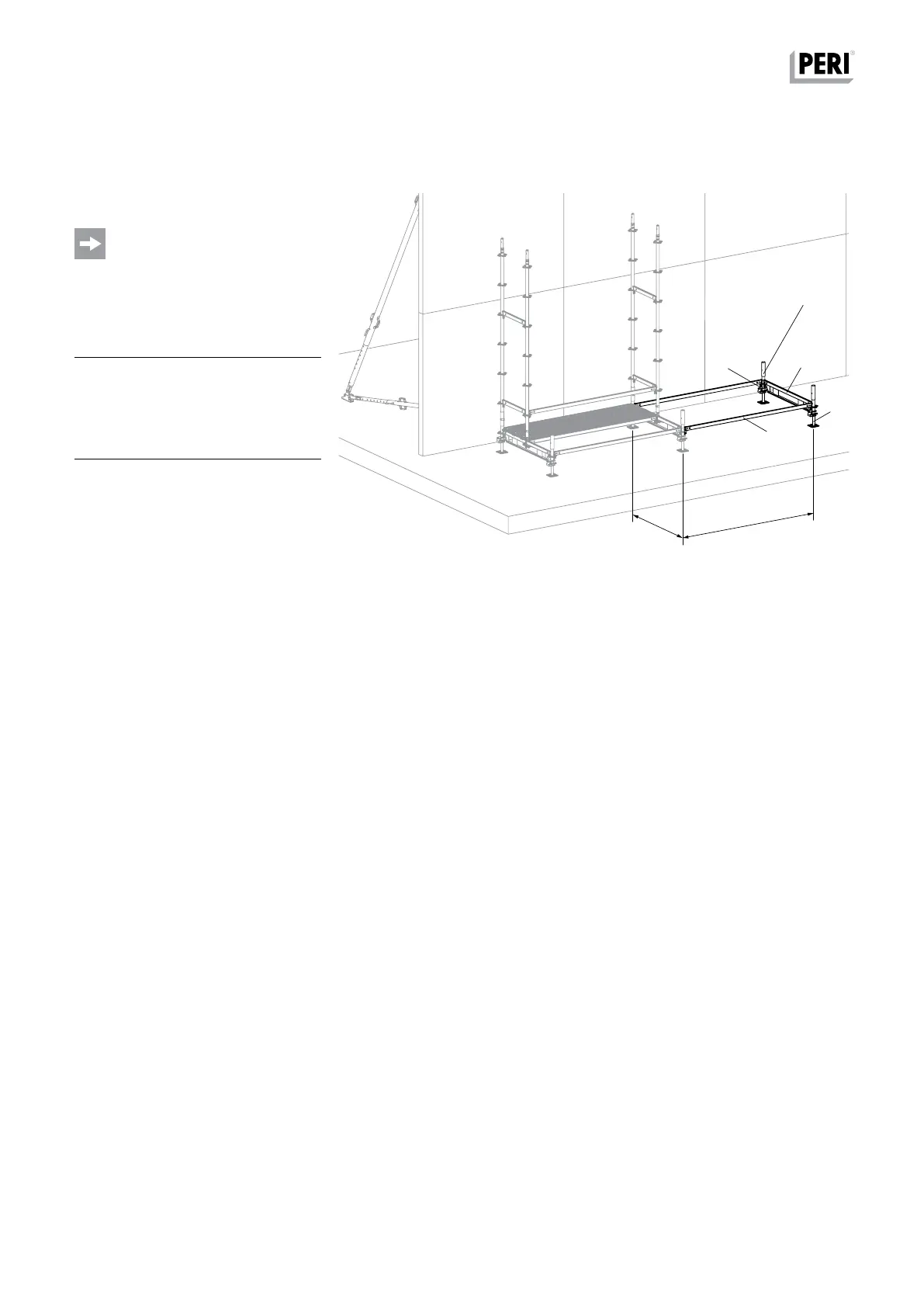

(Fig. A1.04)
Fig. A1.04
150 cm
≤ 300 cm
4
2
3
1
16
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
