Peri UP Flex - Access Decks, Decking and Guardrails

30
B1 Assembling the base with Ledger UHV 250
Access decks, decking and
guardrails
Warning
Risk of falling!
 Use PPE to prevent falling.
 During work operations, keep the
hatch closed.
Pos. Component Qty.
3 Ledger UH Plus 8x
3a Ledger UH 75 Plus 4x
7 Access Deck UAL-3 1x
8 Ladder Flex UEL with Hook 1x
9 Toeboard Wood UPF 2x
10 Steel Deck UDG 3x
11 Ledger Brace UBL 2x
Assembly
1. Attach Access Deck UAL-3 (7).
Standing position: below.
2. Insert Steel Deck UDG (10). Standing
position: below.
3. Attach Ladder Flex UEL (8).
4. From the ladder:
attach Ledger UH (3) to the outer
side.
From the decking:
mount Ledgers as guardrails all the
way round from outside to inside.
Securely fix the wedges.
(Fig. B1.06)
5. Attach Toeboard UPF (9) on the out-
side to the Standards. (Fig. B1.06a)
6. Insert Ledger Brace UBL (11) with
the lower finger in the bottom
Ledger UH (3). (Fig. B1.06b + B1.06c)
7. Insert the gravity pin into the holes
of the top Ledger UH (3), turn pin to
secure. (Fig. B1.06d + B1.06e)

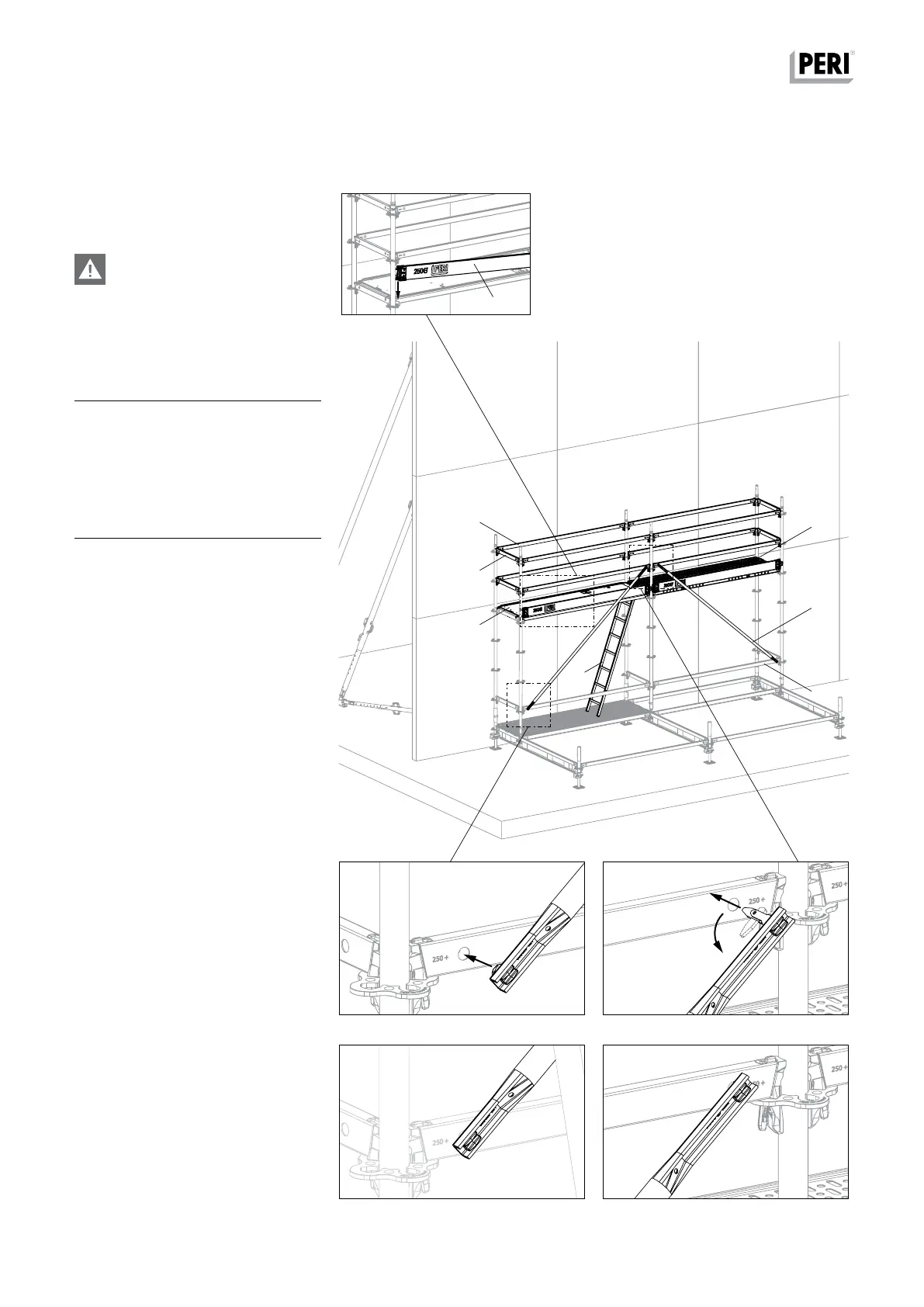

Fig. B1.06
Fig. B1.06a
7
3a
3
8
10
11
3
9
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
Fig. B1.06eFig. B1.06c
Fig. B1.06b Fig. B1.06d
1.
2.
