20
A2 Assembly of Extensions
Standards and Ledgers
Pos. Component Qty.
3a Ledger UH 75 Plus 3x
6a Standard UVR 200 6x
17 Locking Pin Ø 48/57 6x
Assembly
1. Insert Standards UVR (6a). Align legs
in accordance with the holes.
2. Tightly connect Standards (6) (6a) by
means of Locking Pins (17).
3. Attach Ledgers UH 75 (3a) and
securely fix wedges.

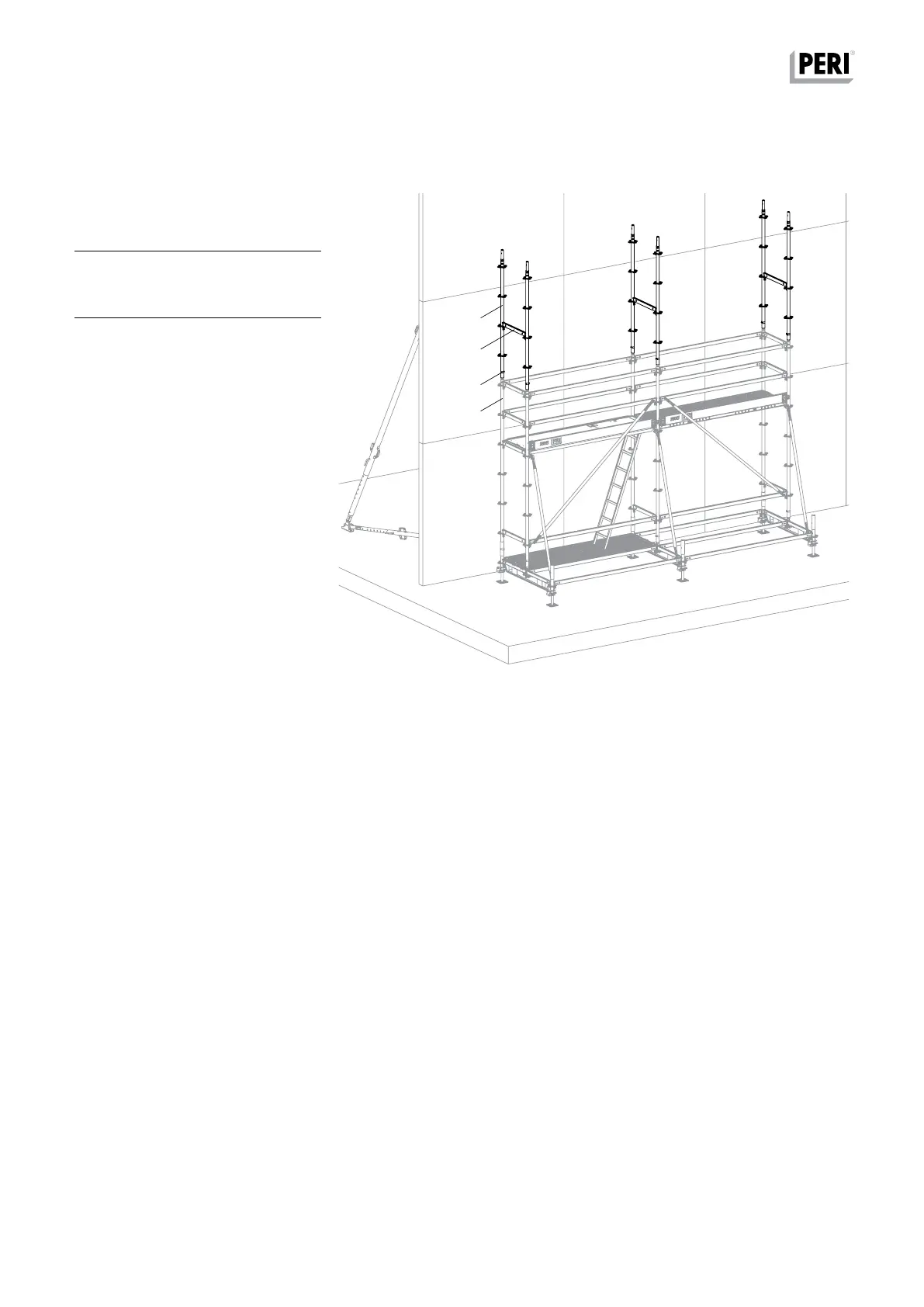

(Fig. A2.01)
Fig. A2.01
3a
17
6a
6
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
