Peri UP Flex - Attachment of Standards and Ledgers

17
A1 Assembling the base with Ledger UHV 150
Attachment of Standards and
Ledgers
Pos. Component Qty.
3 Ledger UH Plus 2x
3a Ledger UH 75 Plus 2x
6 Standard UVR 300 2x
15 Ledger-to-Ledger Coupler UHA
Half with Spigot 1x
17 Locking Pin Ø 48/57 2x
Assembly
1. Place Ledger-to-Ledger Coupler
UHA (15) on Ledger UHV (4), do not
yet secure wedges for alignment.
2. Insert Standards UVR (6).
3. Connect Base Standards UVB (2)
and Ledger-to-Ledger Coupler UHA
(15) with Standards UVR (6) by
means of Locking Pins (17).
4. Attach Ledgers UH (3) and securely
fix wedges.
5. Attach Ledgers UH 75 (3a) and se-
curely fix wedges.
(Fig. A1.05)

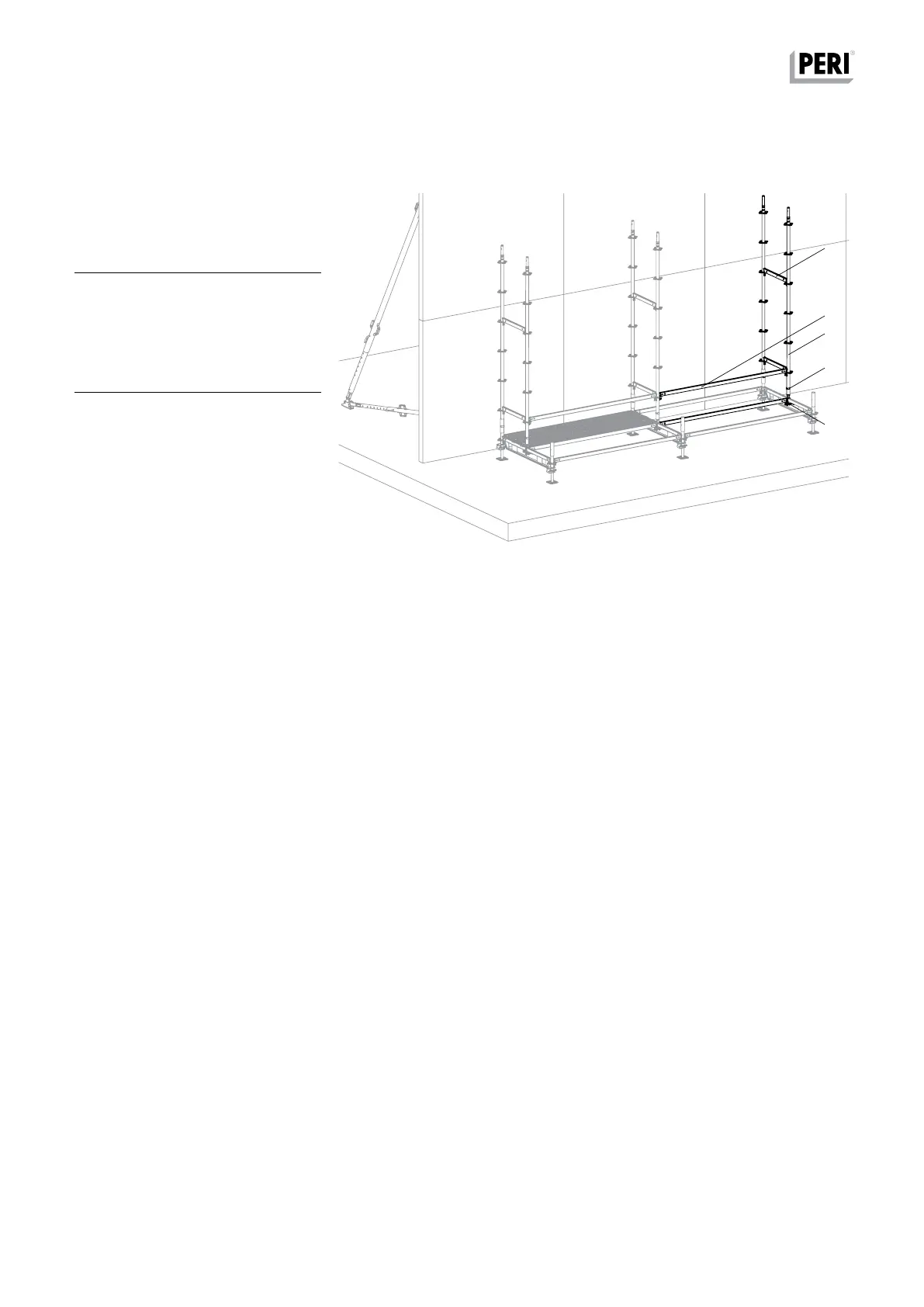

Fig. A1.05
15
17
6
3a
3
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
