E6 Coupler Braces UBC
Alternatively, instead of the Node
Brace UBK, the Coupler Brace UBC
can be mounted for stability.
Assembly
Mount Coupler Brace UBC (23) at the
top to the outside Standard. Mount at
bottom with Swivel Coupling 48/60
(14b) to the Base Standard UVB 24.

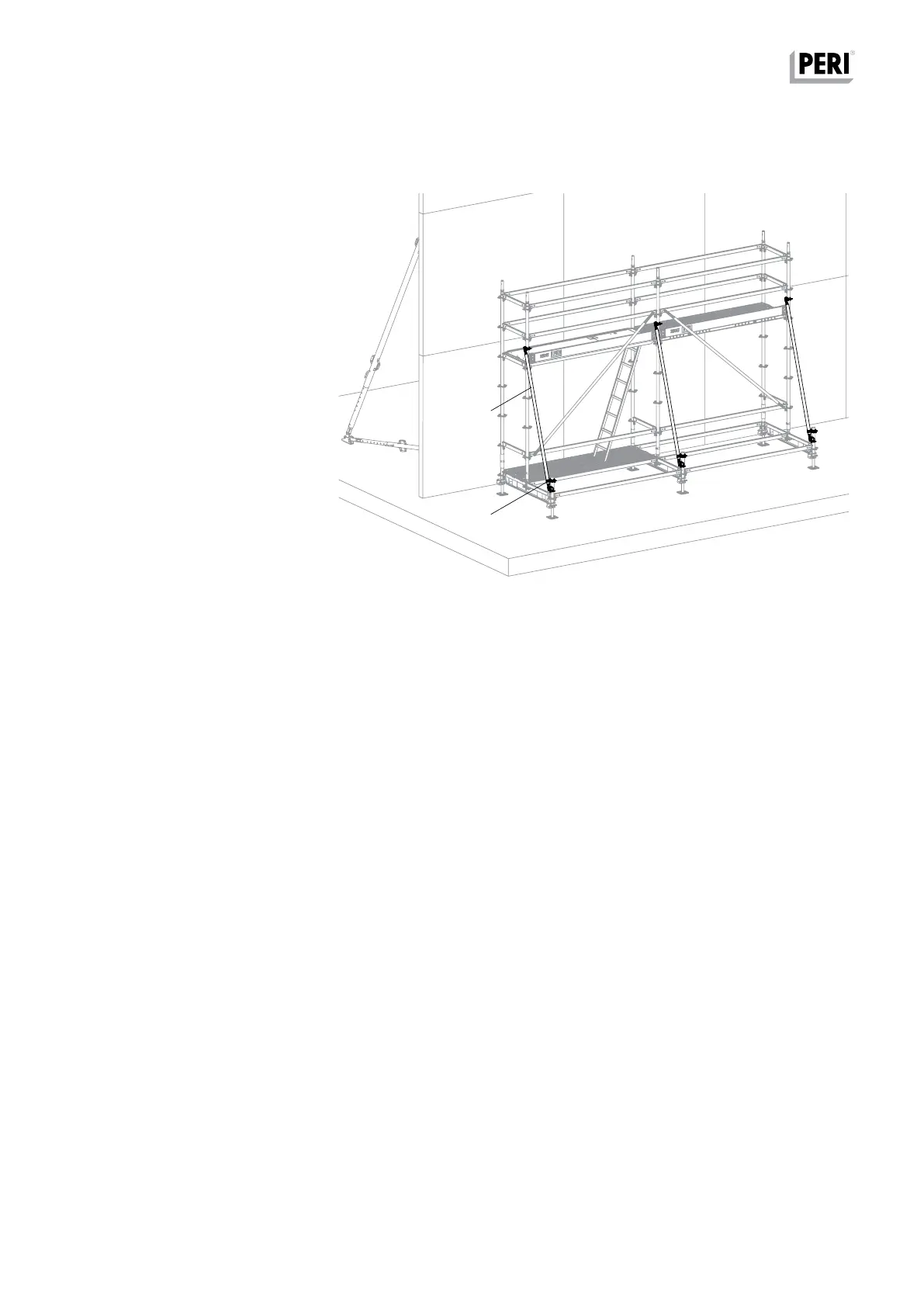

(Fig. E6.01)
Fig. E6.01
23
14b
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
