Peri UP Flex - C4 Anchors, Anchor Forces

42

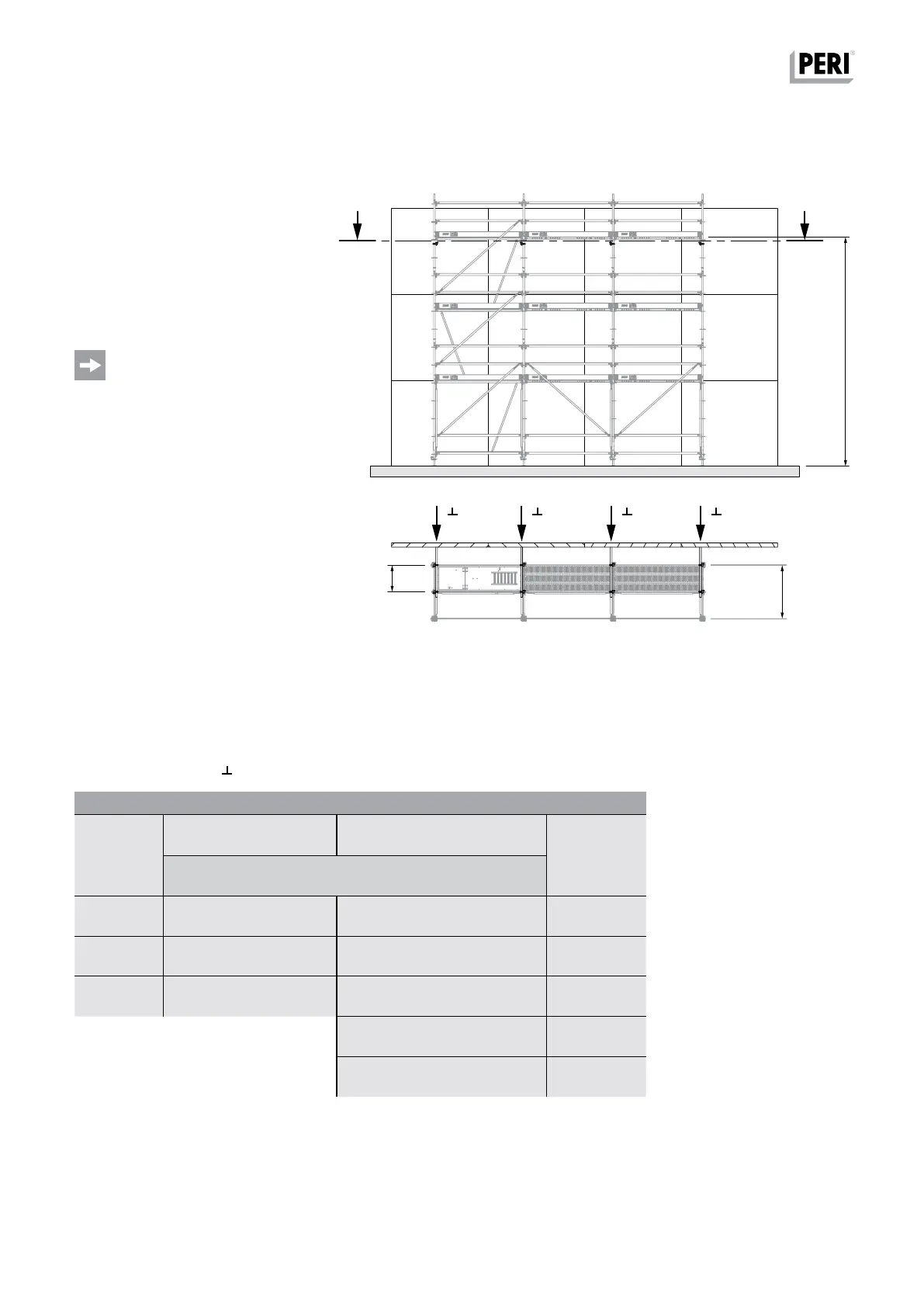

C4 Anchors, anchor forces
Pressure-resistant ties are used for an-
choring so that moving the reinforce-
ment scaffold by crane is possible.
Pressure-resistant ties are installed di-
rectly under the highest deck level on
each Standard and are supported by
being positioned against secure form-
work units or solid wall.
For wind speeds v > 17.9 m/s (wind
force 6), the reinforcement scaffolds
are to be prevented from tipping over
by means of tension and compres-
sion-proof anchorage.
Table C4.01
Scaffold width 75 cm (100 cm)
Standing
height
[cm]
Base width 150 cm
Assembly on UHV 150
Base width 250 cm
Assembly on UHV 250 / UVA 250
Standing
height
[cm]
Up to 17.9 m/s (wind force 6) only pressure-resistant
ties required
224 – 260 no ties required no ties required 224 – 260 /
248 – 280
424 – 460 0.5
(0.5)
no ties required 424 – 460 /
448 – 480
624 – 660 0.5
(0.5)
1.1
(1.1)
624 – 660 /
648 – 680
1.1
(1.1)
824 – 860 /
848 – 880
1.1
(1.1)
1024 – 1060 /
1048 – 1080
Scaffold width
Base width
Standing height
F FFF
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
Compression forces F [kN]
