Peri UP Flex - Attachment of Standards and Ledgers

29
B1 Assembling the base with Ledger UHV 250
Attachment of Standards and
Ledgers
Pos. Component Qty.
3 Ledger UH Plus 2x
3a Ledger UH 75 Plus 2x
6 Standard UVR 300 2x
15
Ledger-to-Ledger Coupler UHA 1x
17 Locking Pin Ø 48/57 2x
Assembly
1. Place Ledger-to-Ledger Coupler
UHA (15) on Ledger UHV (5), do not
yet secure wedges for alignment.
2. Insert Standards UVR (6).
3. Connect Base Standard UVB (2) and
Ledger-to-Ledger Coupler UHA (15)
with Standard UVR (6) by means of
Locking Pins (17).
4. Attach Ledgers UH (3) and securely
fix with wedges.
5. Attach Ledgers UH 75 (3a) and
securely fix wedges.
(Fig. B1.05)

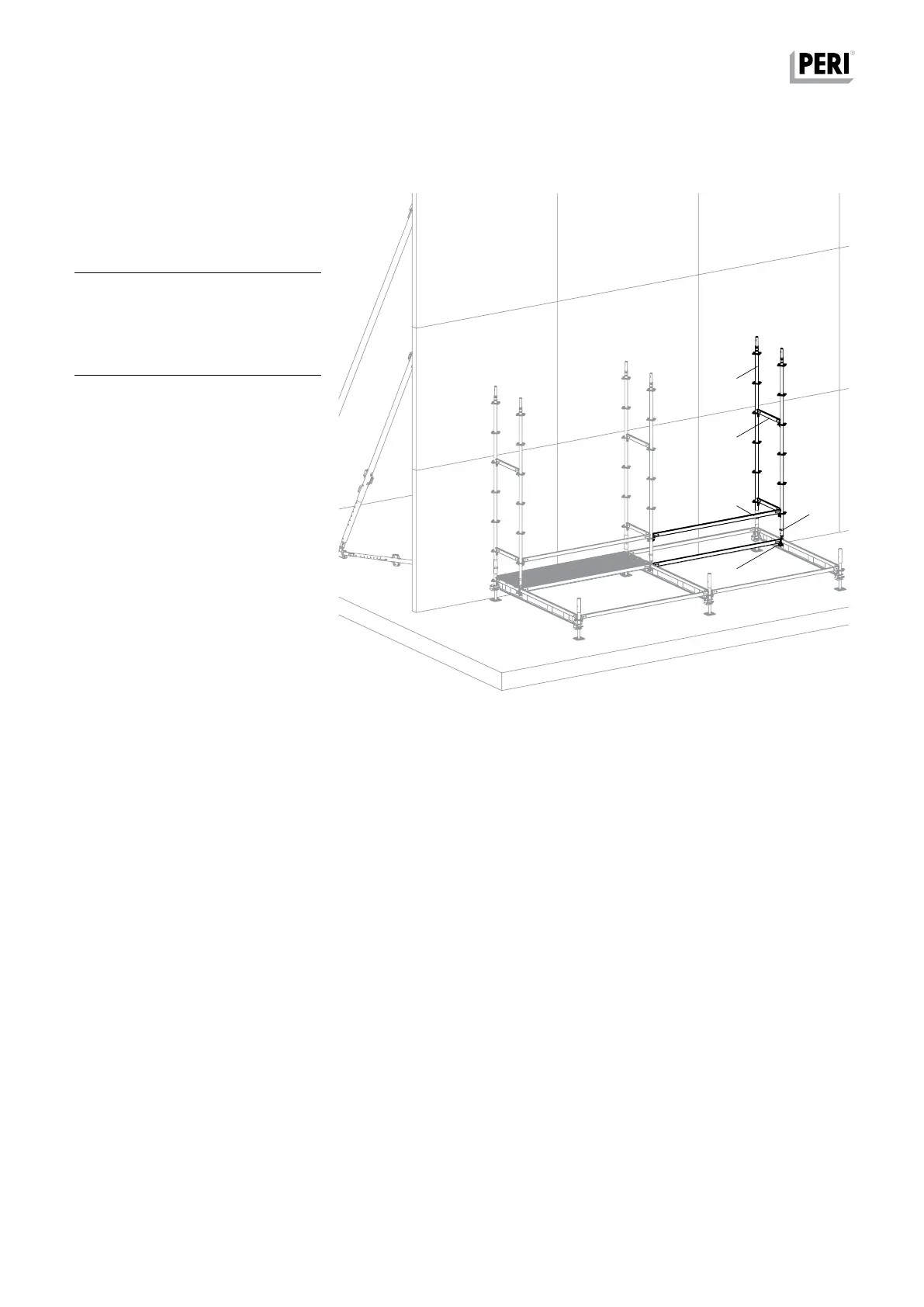

Fig. B1.05
6
3a
3
15
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
17
