D2 Working on the reinforcement scaffold
Assembly tips
Warning
Risk of falling!
 During work operations, keep the
hatch closed.
 Use PPE to prevent falling.
First scaffold bay
– In order to be able to immediately in-
stall the Ledgers UH (guardrails),
Standards UVR are always slotted in
1 m above the decking level.
– From a safe working position, the
front side and outer Ledgers UH are
installed.
Additional scaffold bays
For any additional scaffold bays, the
outer Ledgers UH are mounted from a
safe position (previous scaffold bay)
(e.g. PPE).
End guardrail
Mount Ledger UH 75 from a safe posi-
tion (previous scaffold bay) (e.g. PPE).
Reinforcement work tips
The reinforcement scaffold is posi-
tioned 30 – 80 cm in front of the prima-
ry formwork. Guardrails are therefore
required on the inner side of the rein-
forcement scaffold. They provide a
safe working position:
1. One leg is wrapped around the bot-
tom Ledger UH.
2. Lean against the top Ledger UH and
lean forward.
(Fig. D2.03)

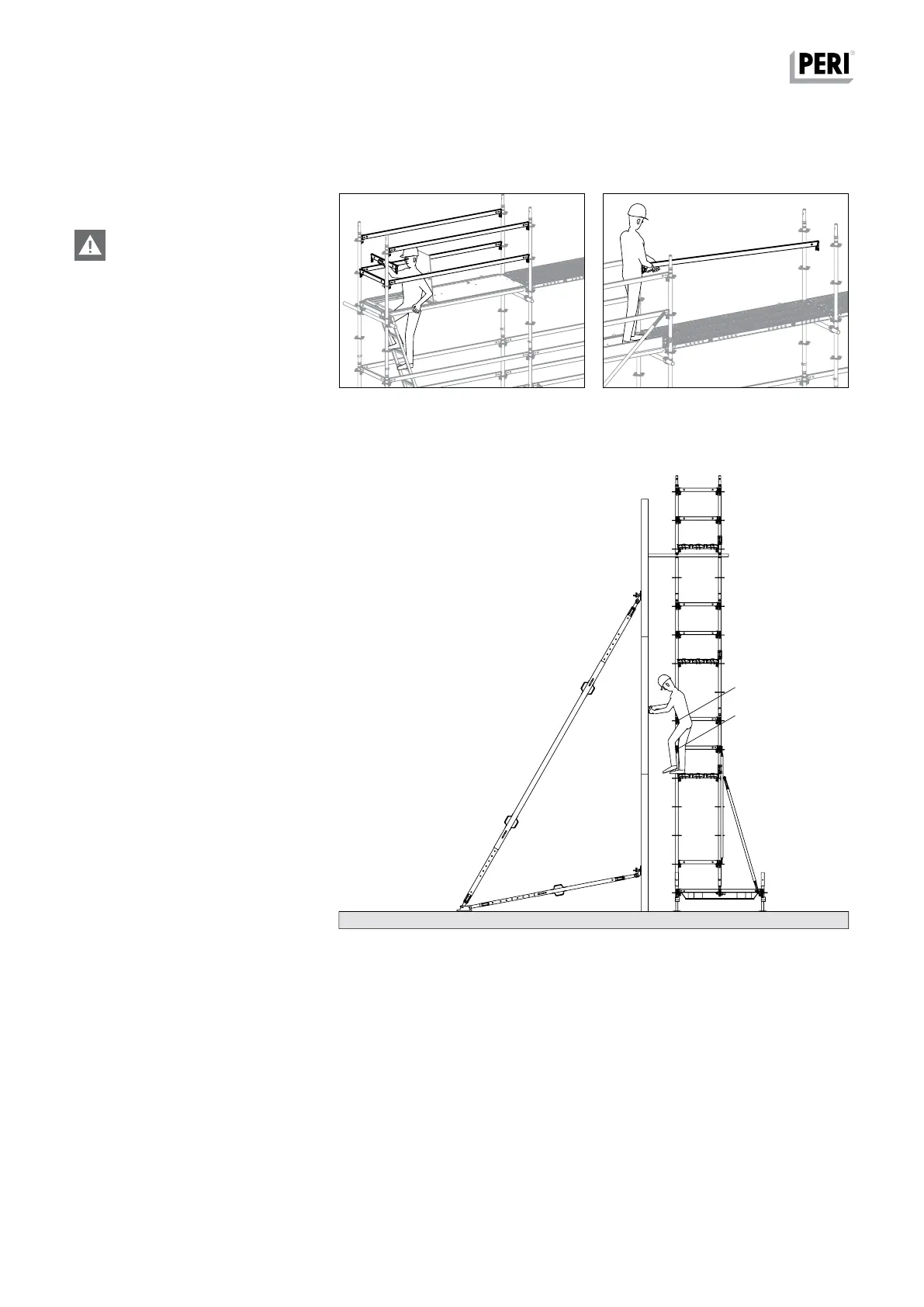

Fig. D2.01 Fig. D2.02
Fig. D2.03
top Ledger UH
bottom Ledger
UH
