Peri UP Flex - Stability

19
A1 Assembling the base with Ledger UHV 150
Stability
Warning
Risk of falling!
 During the assembly work, keep the
hatch closed.
Pos. Component Qty.
11 Ledger Brace UBL 2x
12 Node Brace UBK 3x
Assembly

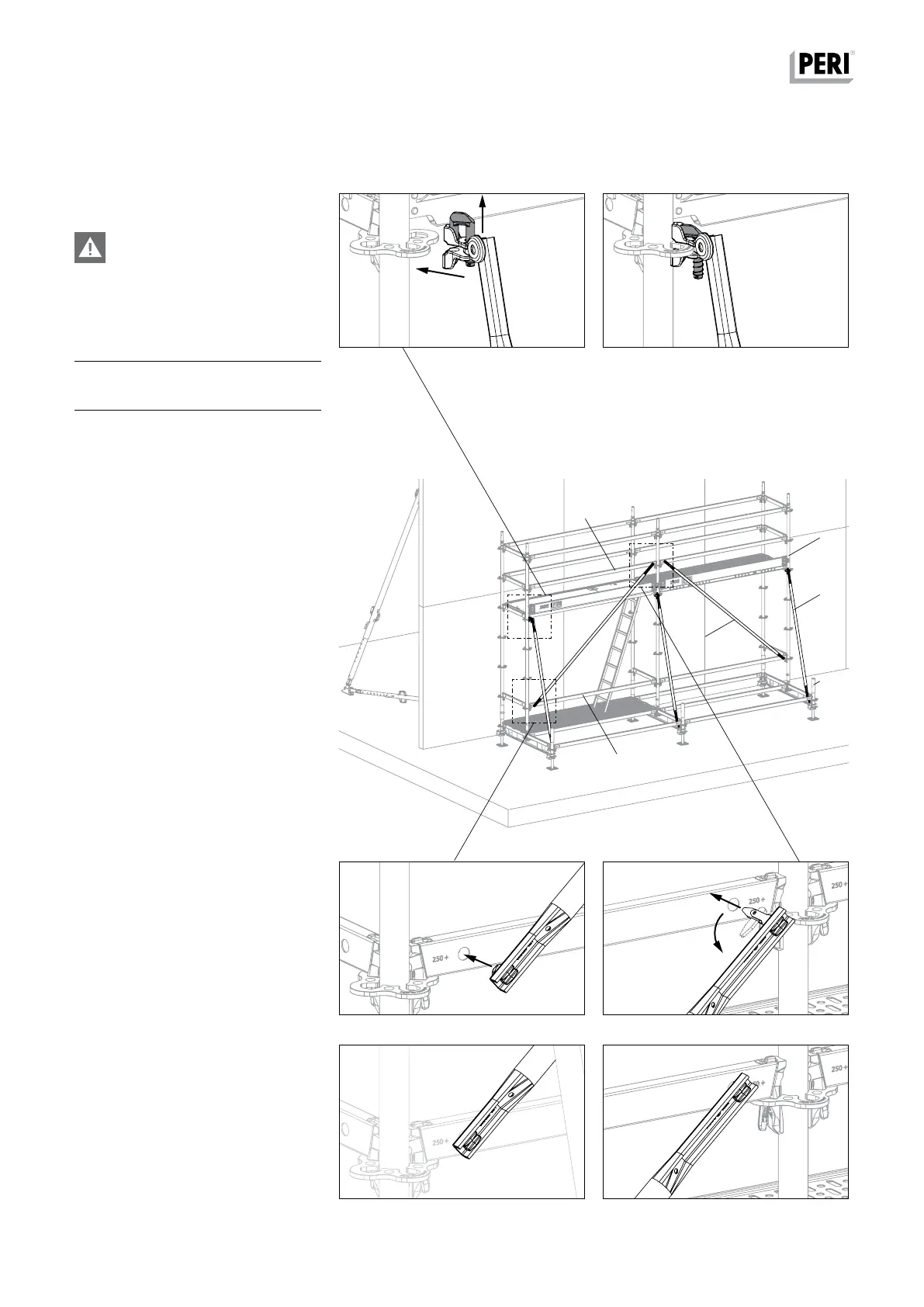

1. Insert Ledger Brace UBL (11) with
the lower finger in the bottom Ledg-
er UH (3). (Fig. A1.07c + A1.07d)
2. Insert the gravity pin into the holes
of the top Ledger UH (3), turn pin to
secure.
(Fig. A1.07e + A1.07f)
3. Mount Node Brace UBK (12) at top
to Standard UVR (6). (Fig. A1.07a +
A1.07b)
4. Mount Node Brace UBK (12) below
on the Base Standard UVB (2).
Fig. A1.07fFig. A1.07d
Fig. A1.07c
Fig. A1.07a
Fig. A1.07e
Fig. A1.07b
Fig. A1.07
12
2
6
11
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
1.
1.
2.
2.
3
3
