51
E3 Bay length 300 cm
Scaffold width 100 cm
For bay lengths of 300 cm and scaffold
widths of 100 cm, components must
be installed in addition to the Access
Deck (7) in the bay of ascent.
Additional components:
– Ledger UH 100 Plus (3)
– Ledger-to-Ledger Coupler UHA (13a)
– 2x Steel Deck UDG 25 x 100 (10a)
– 1x Steel Deck UDG 25 x 250 (10)
The following changes are to be
made:
– UH 300 Plus instead of Ledger UH
250 Plus

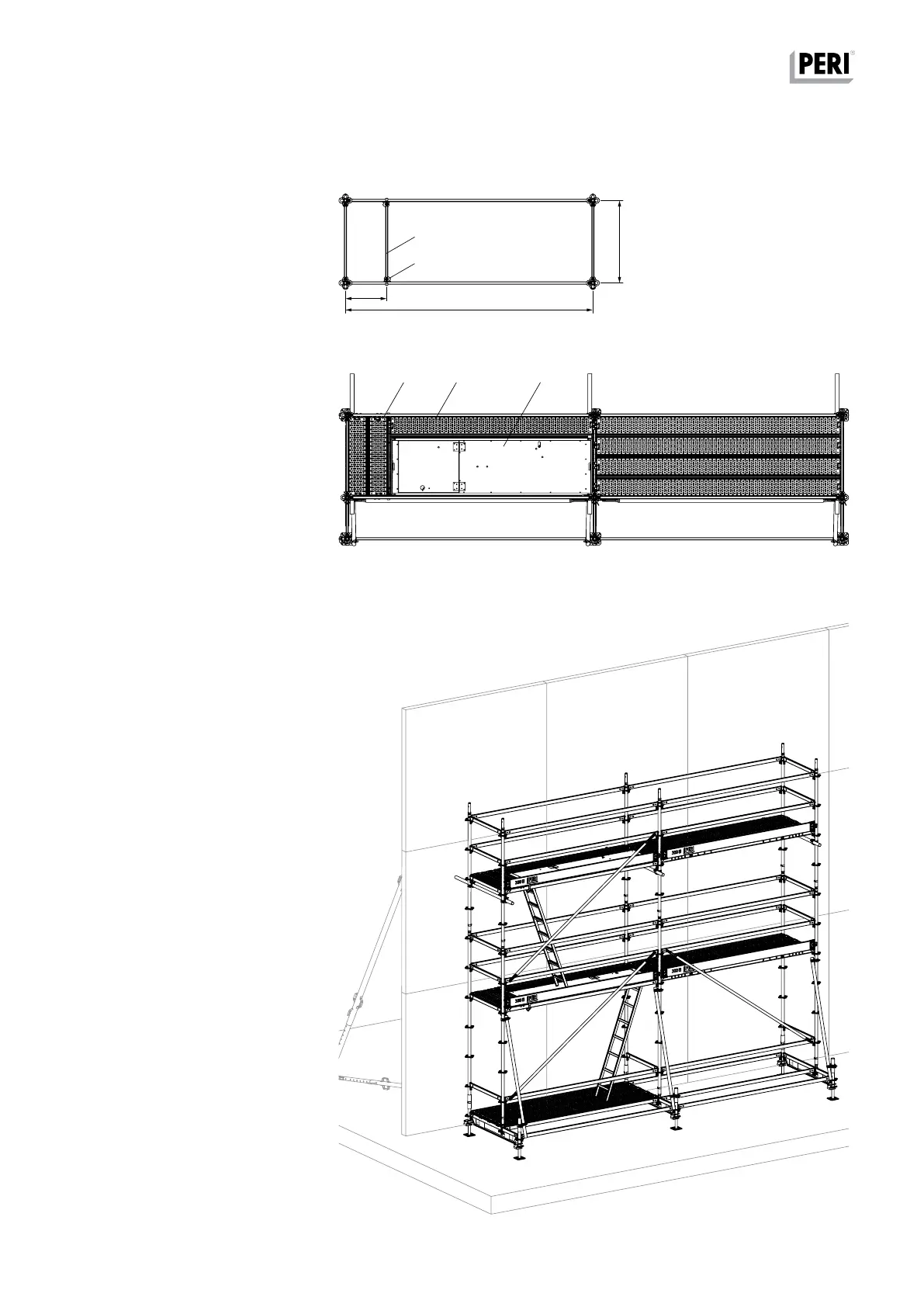

Fig. E3.02b
Fig. E3.02a
Fig. E3.02
50
300
100
71010a
13a
3
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
