Peri UP Flex - Standards and Ledgers

27
B1 Assembling the base with Ledger UHV 250
Standards and Ledgers
Pos. Component Qty.
3 Ledger UH Plus 2x
3a Ledger UH 75 Plus 4x
6 Standard UVR 300 4x
15 Ledger-to-Ledger Coupler UHA
Half with Spigot 2x
17 Locking Pin Ø 48/57 4x
Assembly
1. Place Ledger-to-Ledger Coupler
UHA (15) on the Ledger UHV 250
(5), do not yet secure wedges for
alignment. (Fig. B1.03c)
2. Insert Standards UVR (6).
(Fig. B1.03b)
3. Connect Base Standards UVB (2)
and Ledger-to-Ledger Coupler UHA
(15) with Standards UVR (6) by
means of Locking Pins (17).
(Fig. B1.03c)
4. Attach Ledgers UH (3) and securely
fix with wedges. (Fig. B1.03a)
5. Securely fix wedges for Ledg-
er-to-Ledger UHA (15).
6. Attach Ledgers UH 75 (3a) and
securely fix wedges.

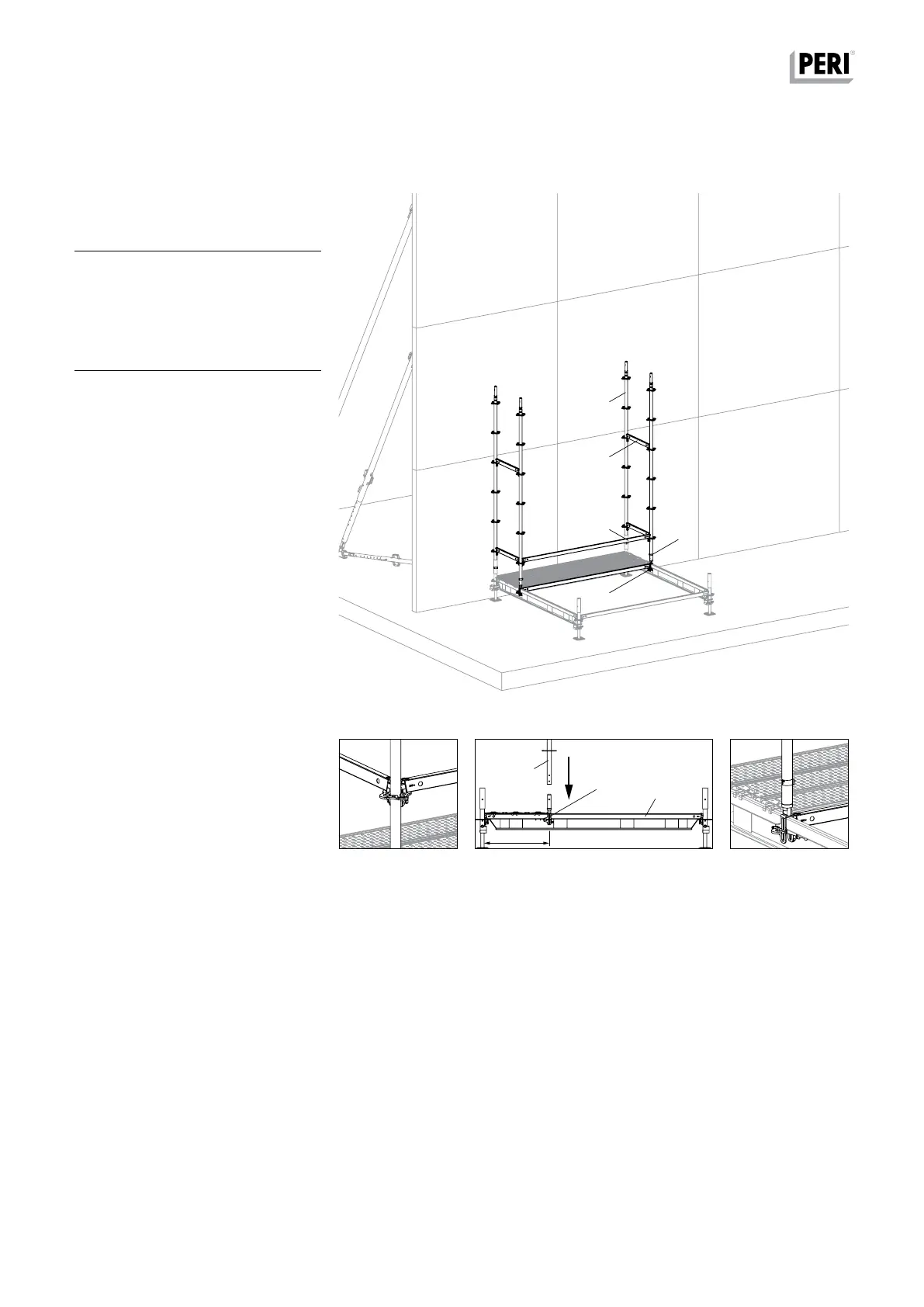

Fig. B1.03
Fig. B1.03a Fig. B1.03b Fig. B1.03c
3a
15
3
6
17
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
75 cm
15
6
5
