E1 Optional/alternative components
Components are to be installed as an
option or as an alternative if required by
local standards and regulations.
In this example, the Locking Pins Ø
48/57 (17) have been replaced by bolts
(Bolt ISO 4014 M10 x 70-8.8) and con-
tinuous side protection consisting of
Ledgers UH in the bay of ascent is
mounted on the ladder.

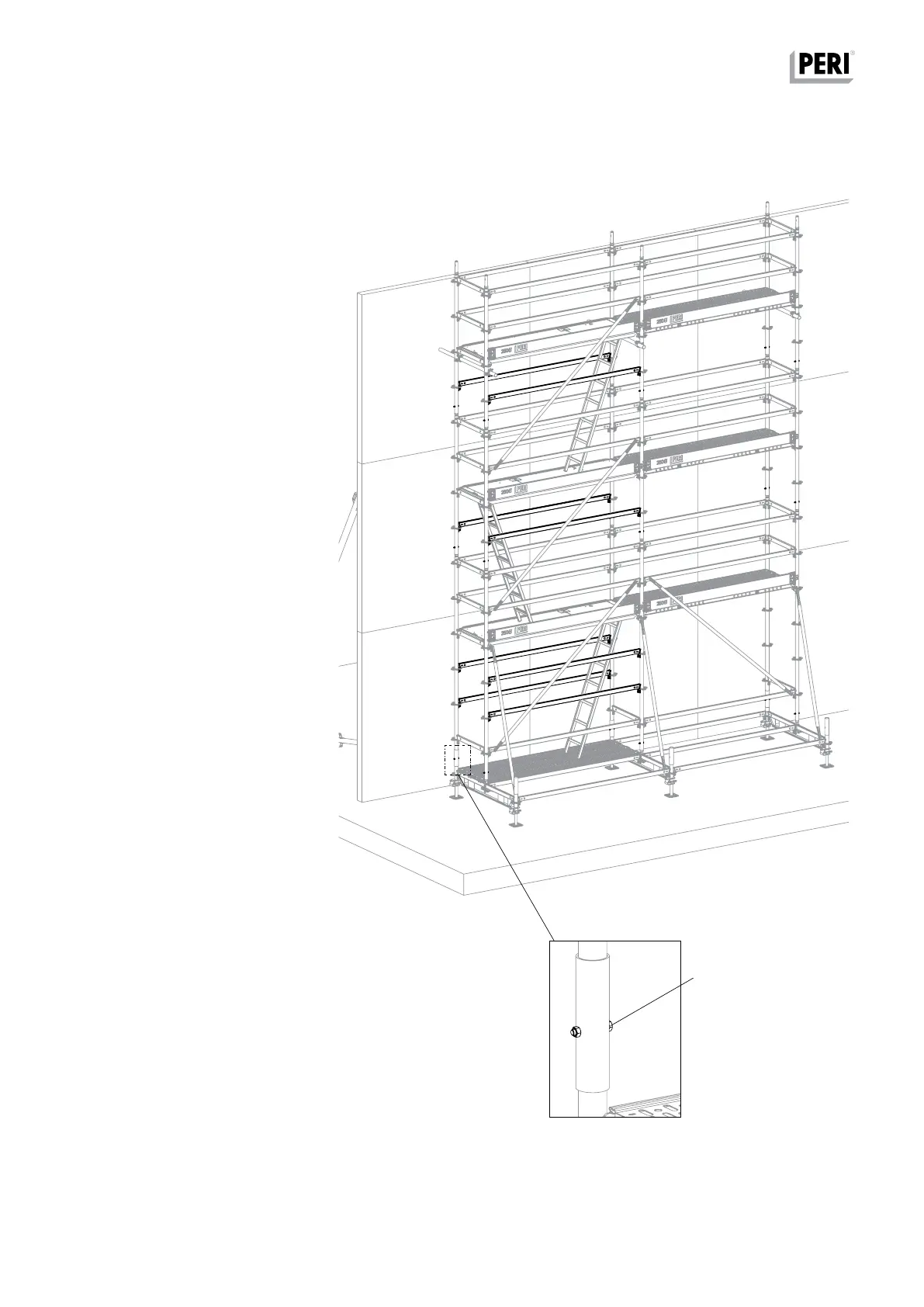

Fig. E1.01
Fig. E1.01a
Bolt ISO 4014 M10 x
70-8.8
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
