B2 Assembly of Extensions
Standards and Ledgers
Pos. Component Qty.
3a Ledger UH 75 Plus 3x
6a Standard UVR 200 6x
17 Locking Pin Ø 48/57 6x
Assembly
1. Insert Standards UVR (6a). Align legs
in accordance with the holes.
2. Tightly connect Standards (6) (6a)
bymeans of Locking Pins (17).
3. Attach Ledgers UH 75 (3a) and
securely fix wedges.
(Fig. B2.01)

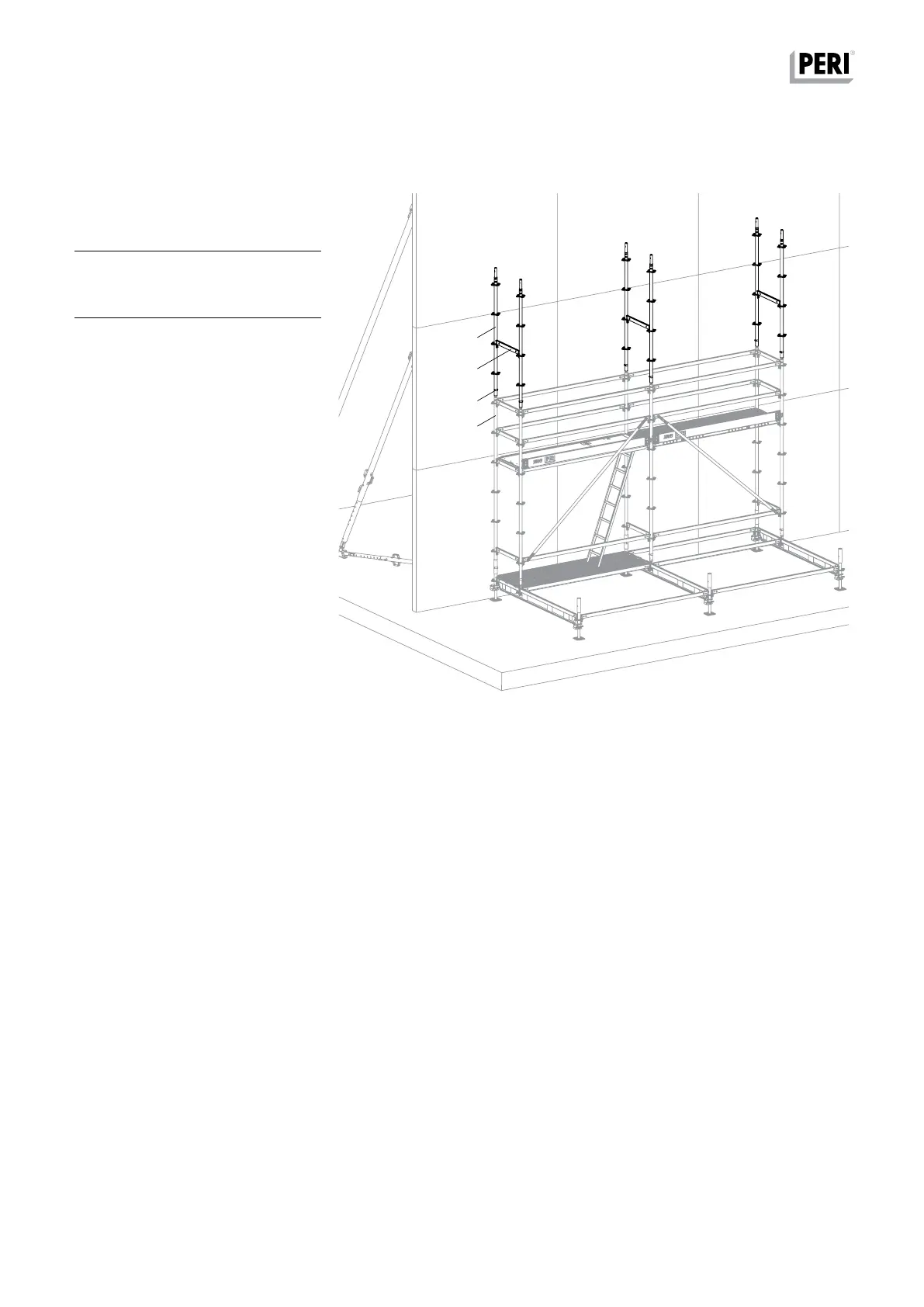

Fig. B2.01
3a
6a
6
17
