Peri UP Flex - B1 Assembling the Base with Ledger UHV; Base Level

26
B1 Assembling the base with Ledger UHV 250
Base level
– Assembly of the reinforcement scaf-
fold must always take place in front
of a wall or secure formwork units!
– The surface used must have suffi-
cient load-bearing capacity.
Pos. Component Qty.
1 Adjustable Base Plate UJB 4x
2 Base Standard UVB 24 4x
3 Ledger UH Plus 2x
5 Ledger UHV 250 Plus 2x
10 Steel Deck UDG 3x
16 Spindle Locking UJS 4x
Assembly
1. Assemble frame.
2. Horizontally align frame by adjusting
the Adjustable Base Plates.
Max. spindle adjustment range for
– Base Plate UJB 38-50/30:
≤ 26 cm
– Base Plate UJB 38-80/55:
≤ 39 cm
3. Establish perpendicularity of the
base.
4. Secure wedges on all ledgers using
a 500 g hammer.
(Fig. B1.01a + B1.01b + B1.01c)
5. Insert Steel Deck UDG (10).
 Lift-off prevention devices drop
under the UH Ledger (5) and se-
cure the decking.
6. Secure Adjustable Base Plate UJB
with Spindle Locking UJS (16).
(Fig. B1.01d)

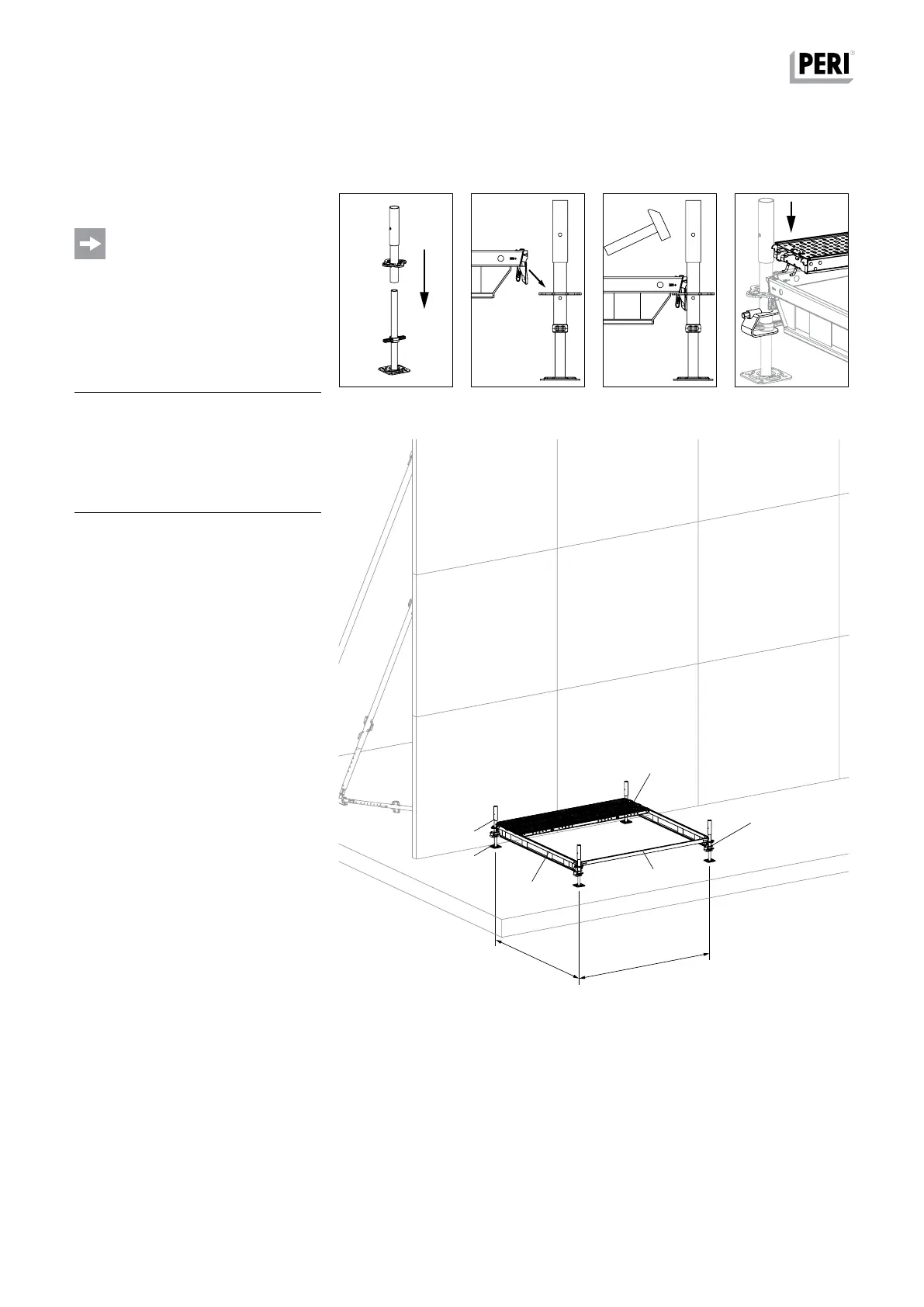

Fig. B1.02
Fig. B1.01a Fig. B1.01b Fig. B1.01c Fig. B1.01d
500 g
250 cm
≤ 250 cm
2
1
5
3
10
16
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
