33
B2 Assembly of Extensions
Stability
Pos. Component Qty.
13 Steel Scaffold Tube Ø 48.3 x 3.2
3x
14a Swivel Coupling DK 48/48 3x
14b Swivel Coupling DK 48/60 3x
Assembly
Attach scaffold tubes (13) at the top to
the outside Standard with Swivel Cou-
pling 48/48 (14a) and at the bottom to
the Base Standard using Swivel Cou-
pling 48/60 (14b).

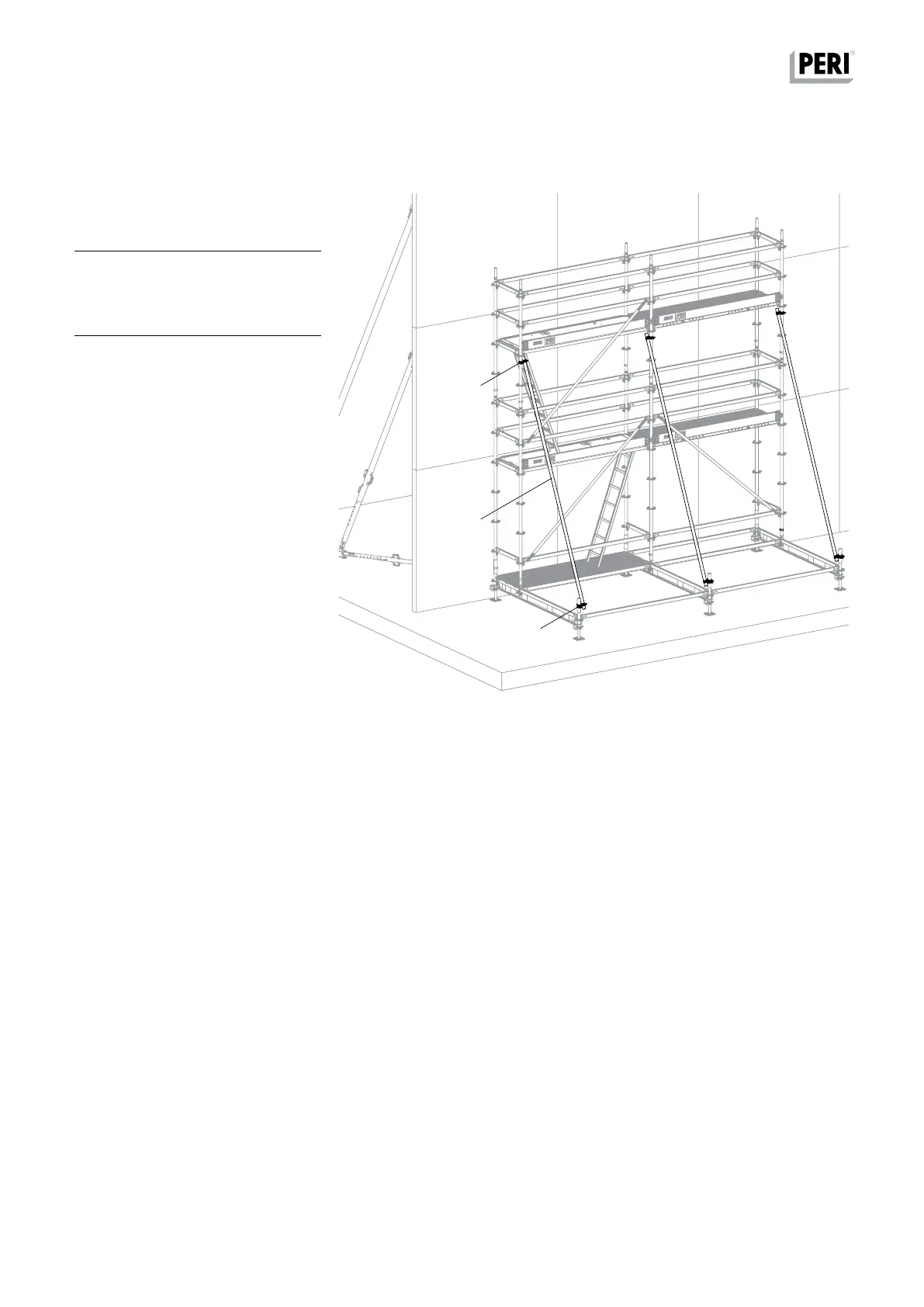

(Fig. B2.03)
Fig. B2.03
14a
13
14b
PERI UP Flex Reinforcement Scaffold 75 and 100
Instructions for Assembly and Use – Standard Configuration
