B2 Assembly of Extensions
Access decks, decking and
guardrails
Warning
Risk of falling!
 During work operations, keep the
hatch closed.
Pos. Component Qty.
3 Ledger UH Plus 8x
3a Ledger UH 75 Plus 4x
7 Access Deck UAL-3 1x
8 Ladder Flex UEL with Hook 1x
9 Toeboard Wood UPF 2x
10 Steel Deck UDG 3x
11 Ledger Brace UBL 1x
Assembly
1. Attach Access Deck UAL-3 (7).
Standing position: below.
2. Insert Steel Deck UDG (10). Standing
position: below.
3. Attach Ladder Flex UEL (8).
4. From the ladder or a safe working
position:
attach Ledger UH (3) to the outer
side.
From the decking:
mount Ledgers as guardrails all the
way round from outside to inside.
Securely fix the wedges.
5. Attach Toeboard UPF (9) on the
outside to the Standards.
6. Insert Ledger Brace UBL (11) with
the finger in the lower bottom
Ledger UH (3). Insert the gravity pin
into the holes of the top Ledger UH
(3), turn pin to secure.

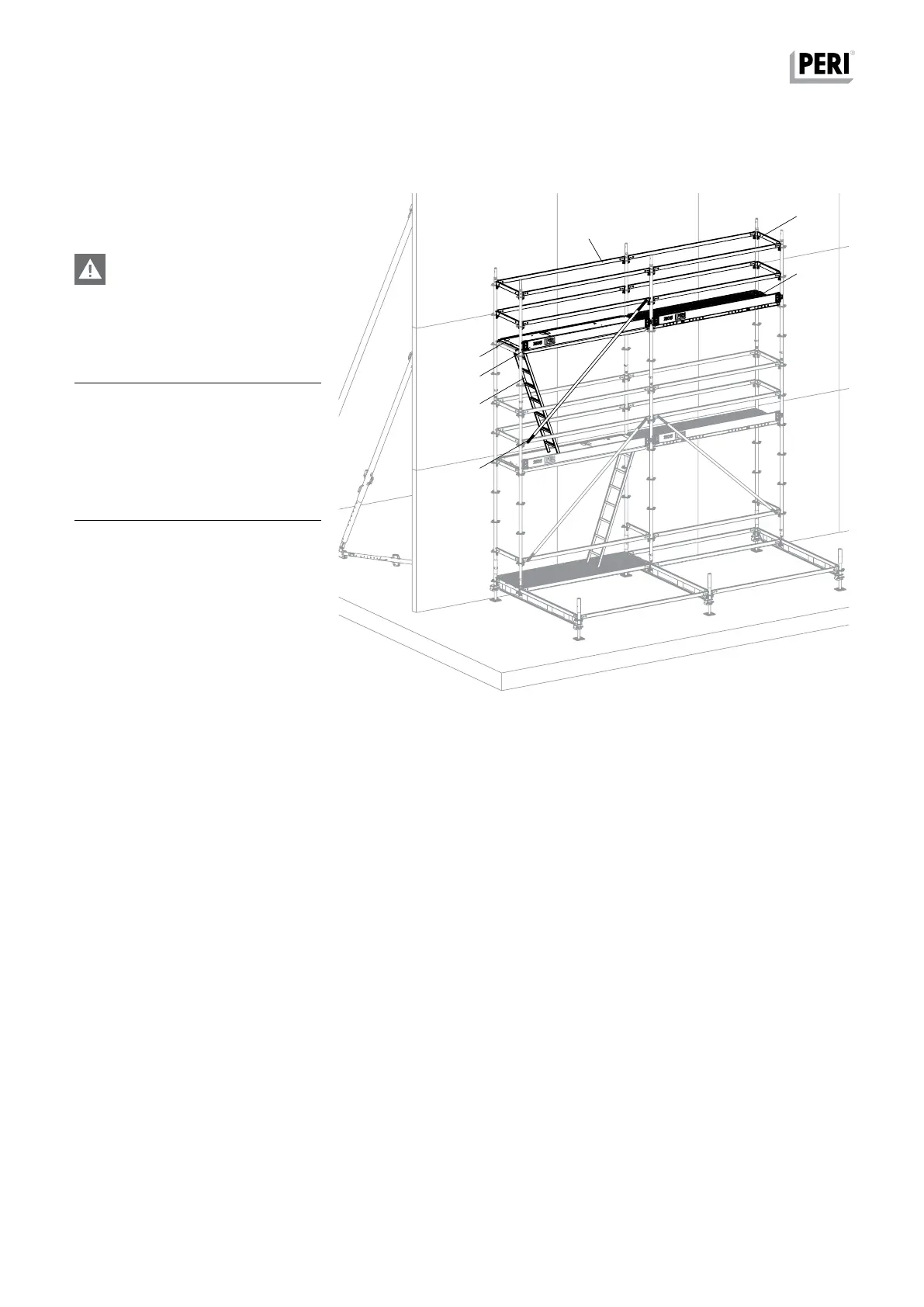

(Fig. B2.02)
Fig. B2.02
3
3a
10
7
8
11
9
