7 Start-Up
52 Version: 2.0.0 MS205Equ C-863 Mercury Controller

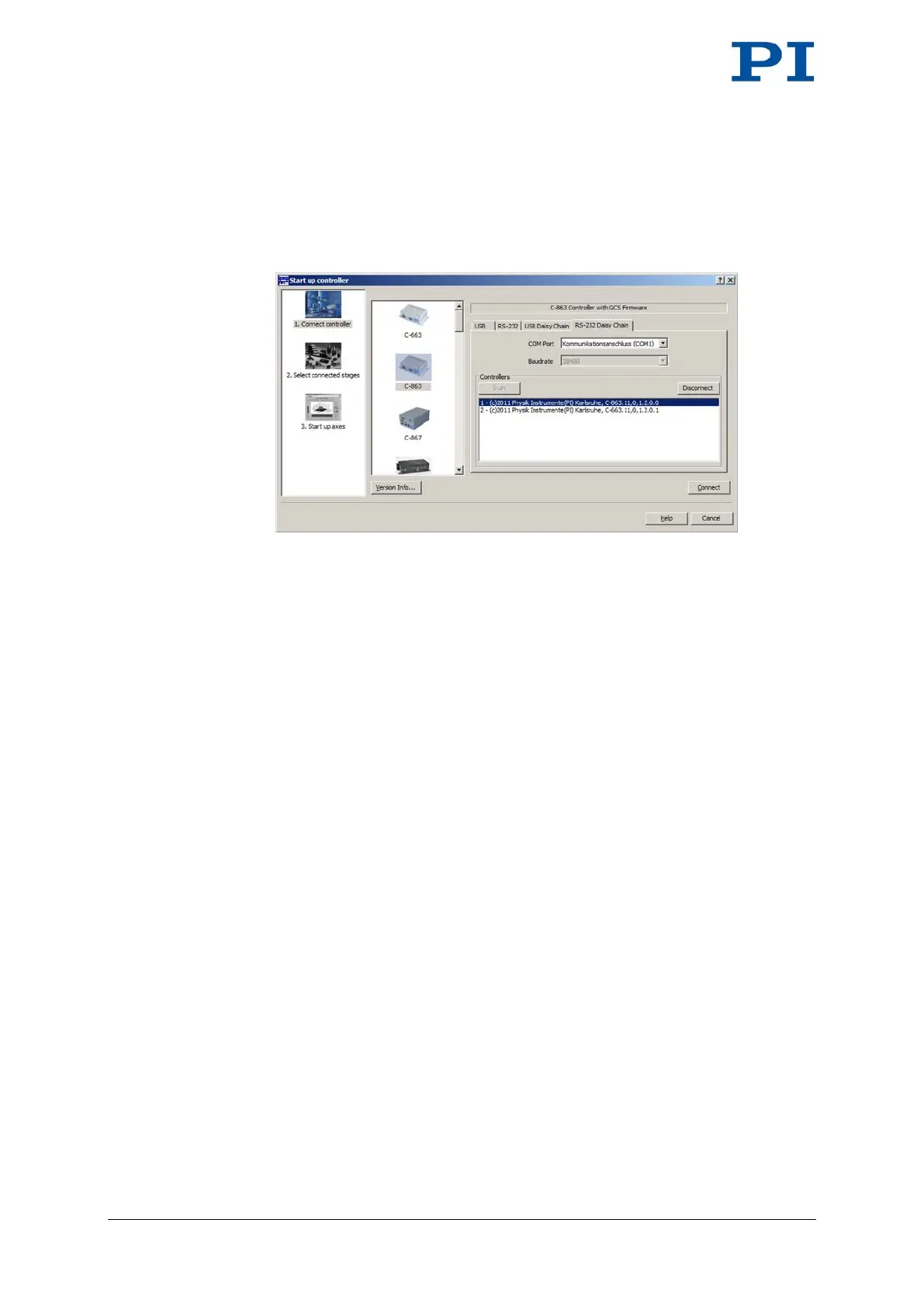

5. In the bottom section of the tab, click on the Scan button to list every
controller in the daisy chain network.
6. Select a controller from the list. The selection must match the controller type
that you selected in step 2.
7. Click Connect to establish communication with the controller selected.
If communication has been successfully established, the Select connected
stages dialog opens.
− Proceed further as described in "Starting Motions" (p. 55).
or
− Close the Select connected stages window by clicking on the Cancel
button.
8. If you want to connect an additional controller of the daisy chain network,
select the Connections > New... menu item in the main window.
9. Execute again steps 2, 6 and 7 in the order indicated.
