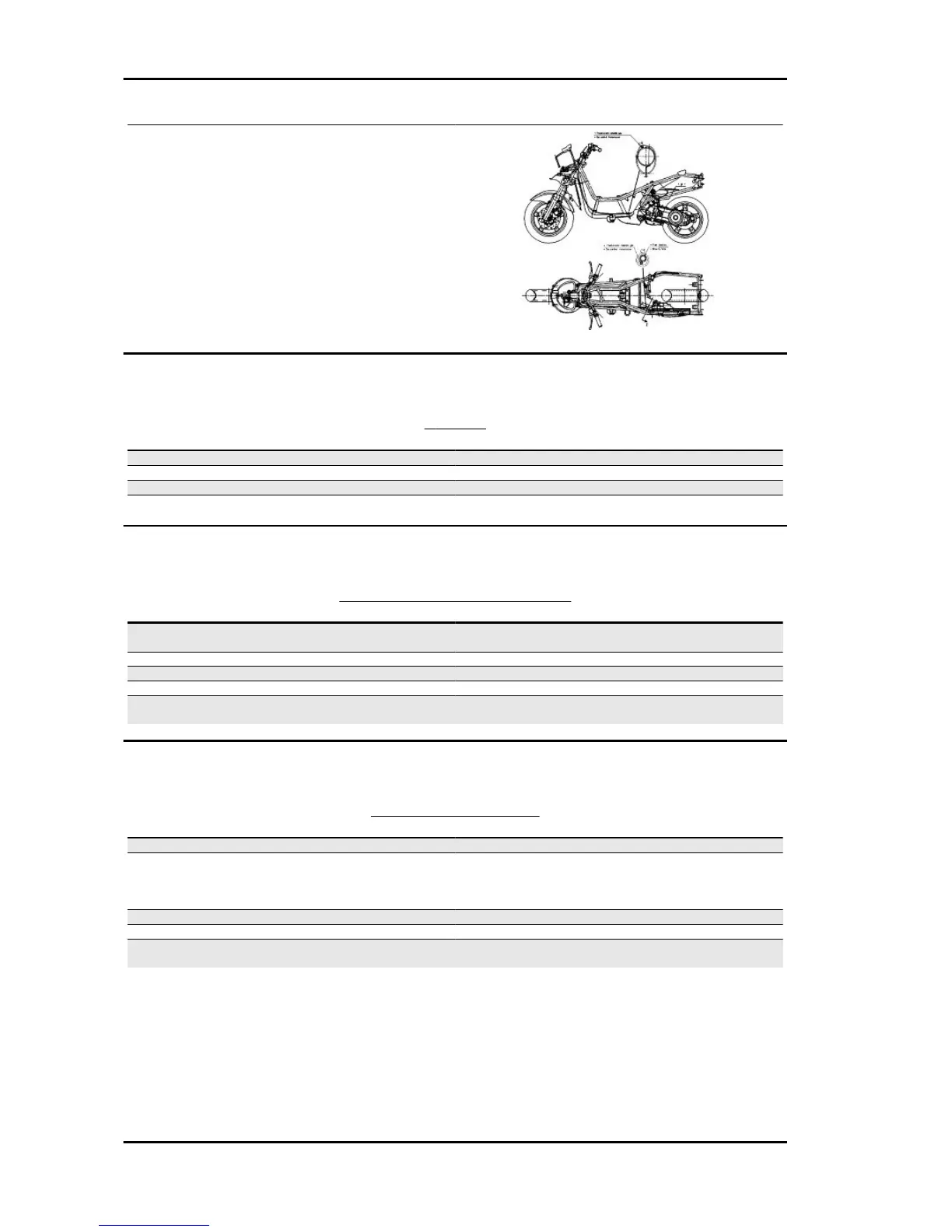

Gas control transmission fixing
Please take note that starting from the frame num-
ber ZAPM2300004502417, the gas control trans-
mission fixing has been changed, in fact a tear-off
clamp and a sheath have been introduced, in order
to improve its passage
Capacities
CAPACITÀ
Specification Desc./Quantity
Rear hub 150 cc (recommended oil: TUTELA ZC 90)
Cooling system ~ 1.2 litres (recommended fluid PARAFLU MOTORIDER).
Fuel tank (including a ~ 2.5 l reserve) ~ 14.5 l
Engine oil approx. 1300 cc (recommended oil Selenia HI Scooter 4 Tech)
Electrical system
ELECTRIC COMPONENTS 250
Specification
Desc./Quantity
Ignition type Electronic capacitive discharge ignition (CDI) and variable ad-
vance, with separate HV coil.
Spark plug CHAMPION RG4HC
Battery 12V-12Ah
Generator Three-phase alternating current
Variable spark advance 10° ± 1 at 2000 Rpm
28° ± 1 at 6500 Rpm
Frame and suspensions
CHASSIS AND SUSPENSIONS
Specification
Desc./Quantity
Rear wheel max. travel 90 mm.
Rear suspension Engine with oscillating fork articulated to the chassis by means
of a double swinging arm. Double-acting hydraulic shock ab-
sorbers, coaxial helicoidal spring with variable step, adjustable
at preloading on 4 positions.
Front fork stroke 90 mm
Front suspension Hydraulic telescopic fork with Ø 35-mm stem
Type of chassis Welded tubular steel chassis with stamped sheet reinforce-
ments.
X9 Evolution 125-250-500:
Please take note that, starting from chassis serial number ZAPM2300003509521, the front small chas-
sis fixing system has changed in order to improve its locking to the chassis. Therefore we have
introduced:
• N°2 screws drawing 432142
• N°2 4x11x0 external teeth spring washers drawing 012533
Characteristics MSS X9 Evolution 250
CHAR - 10
