PIAGGIO MSS X9 EVOLUTION 250 - Flywheel and starting; Removing the flywheel magneto

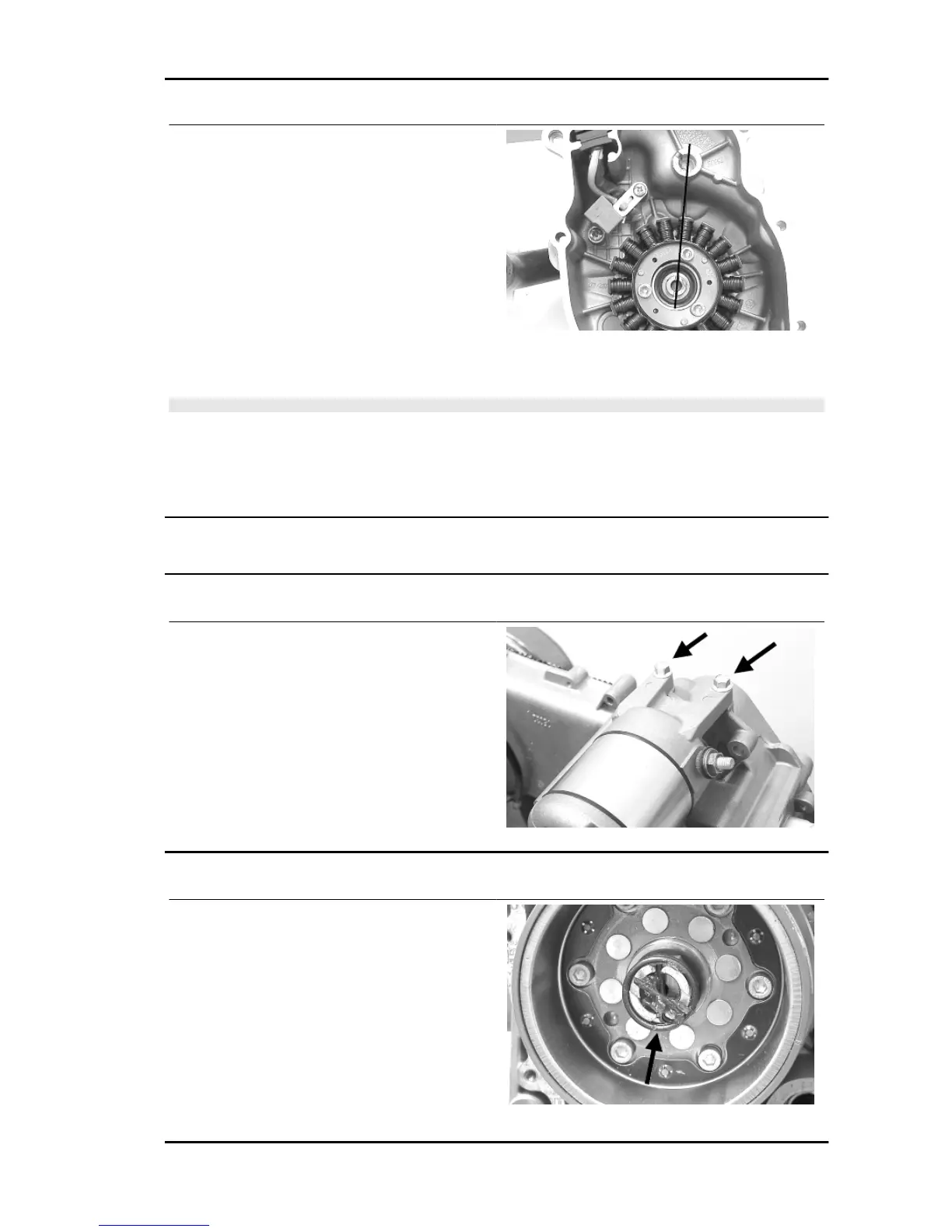

- Orient the water pump shaft with reference to the
transmission gear seat as shown in the photo.
- Refit the cover over the engine and tighten the screws to the prescribed torque.
- Carry out the steps in the reverse order from the dismantling procedure.
CAUTION
TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL CONNECTOR. MAKE SURE THE CEN-
TRING DOWELS ARE PRESENT.
Locking torques (N*m)
Flywheel cover screws 11 - 13
Flywheel and starting
Removing the starter motor
- Remove the two screws indicated in the figure.
- Take the starter motor out of its seat
Removing the flywheel magneto
- Remove the water pump shaft and crankshaft
spline clip
MSS X9 Evolution 250 Engine
ENG - 103
