PIAGGIO MSS X9 EVOLUTION 250 - Shock Absorbers Removal; Shock Absorbers Refitting; Centre-Stand

Removal

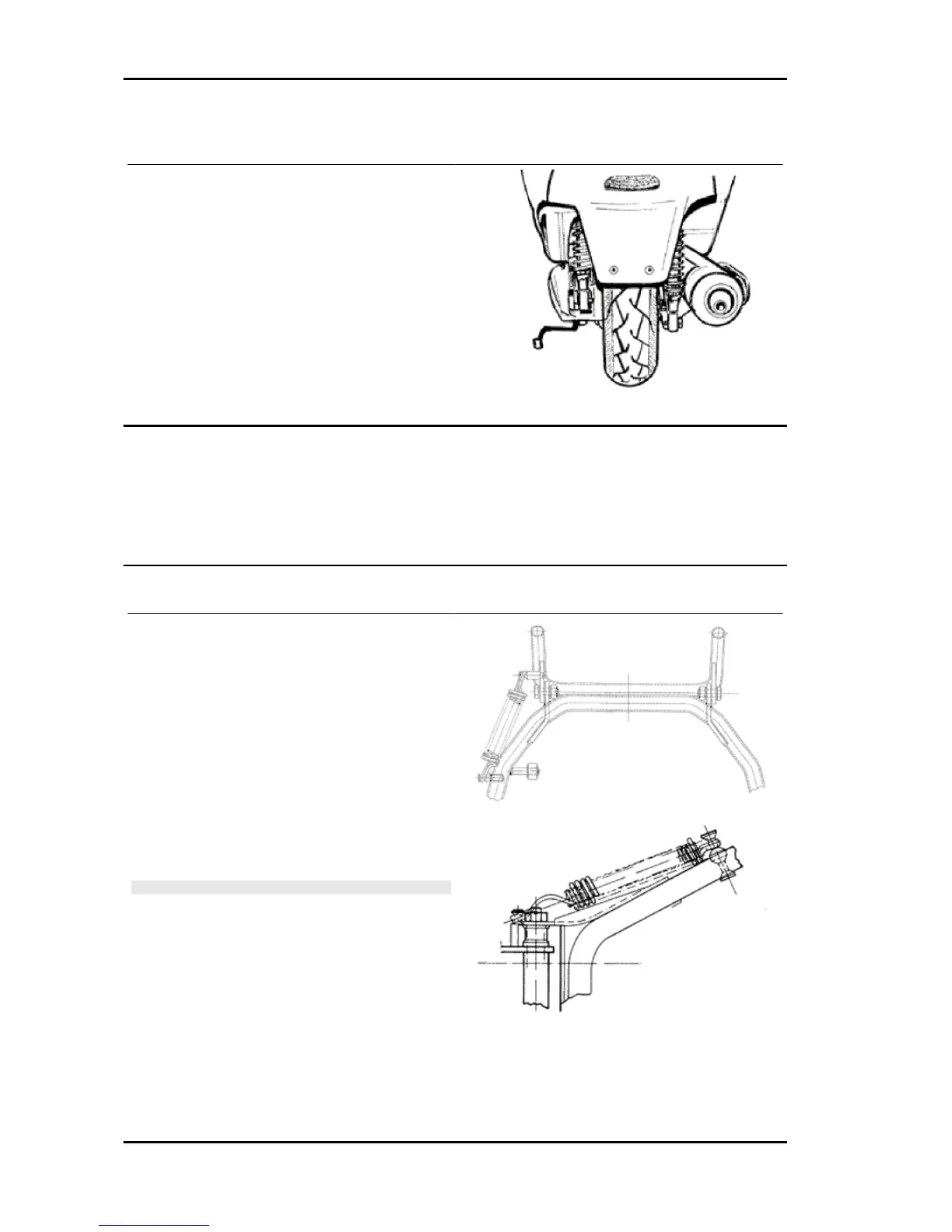

Proceed as follows:
- Undo the screw fixing the shock absorber spring
unit to the engine (A) on one side and the corre-
sponding support (B) on the other;
- remove the saddle and the helmet compartment;
- undo the two upper nuts (one on each side) fixing
the shock absorber spring unit to the chassis and
remove the shock absorbers.
Refitting
Carry out the previous operations but in reverse order.
Locking torques (N*m)
Lower shock absorber clamp 33 ÷ 41 Upper shock absorber clamp 33 ÷ 41
Centre-stand
Removal
- Unhook the springs.
- Loosen the nut.
- Pull out the screw.
Reassembly
- Install the sealing rings on the support tube of the
stand;
- Carry out the operations described above in re-
verse order, then insert the sealing rings into their
seats.
CAUTION
Lubricate the following parts with grease: spring coupling
pins, bushings on stand fixing bracket.
Recommended products
AGIP GREASE PV2 Grease for control levers
on the engine
White anhydrous-calcium based grease to protect
roller bearings; temperature range between -20 °
C and +120 °C; NLGI 2; ISO-L-XBCIB2
Locking torques (N*m)
