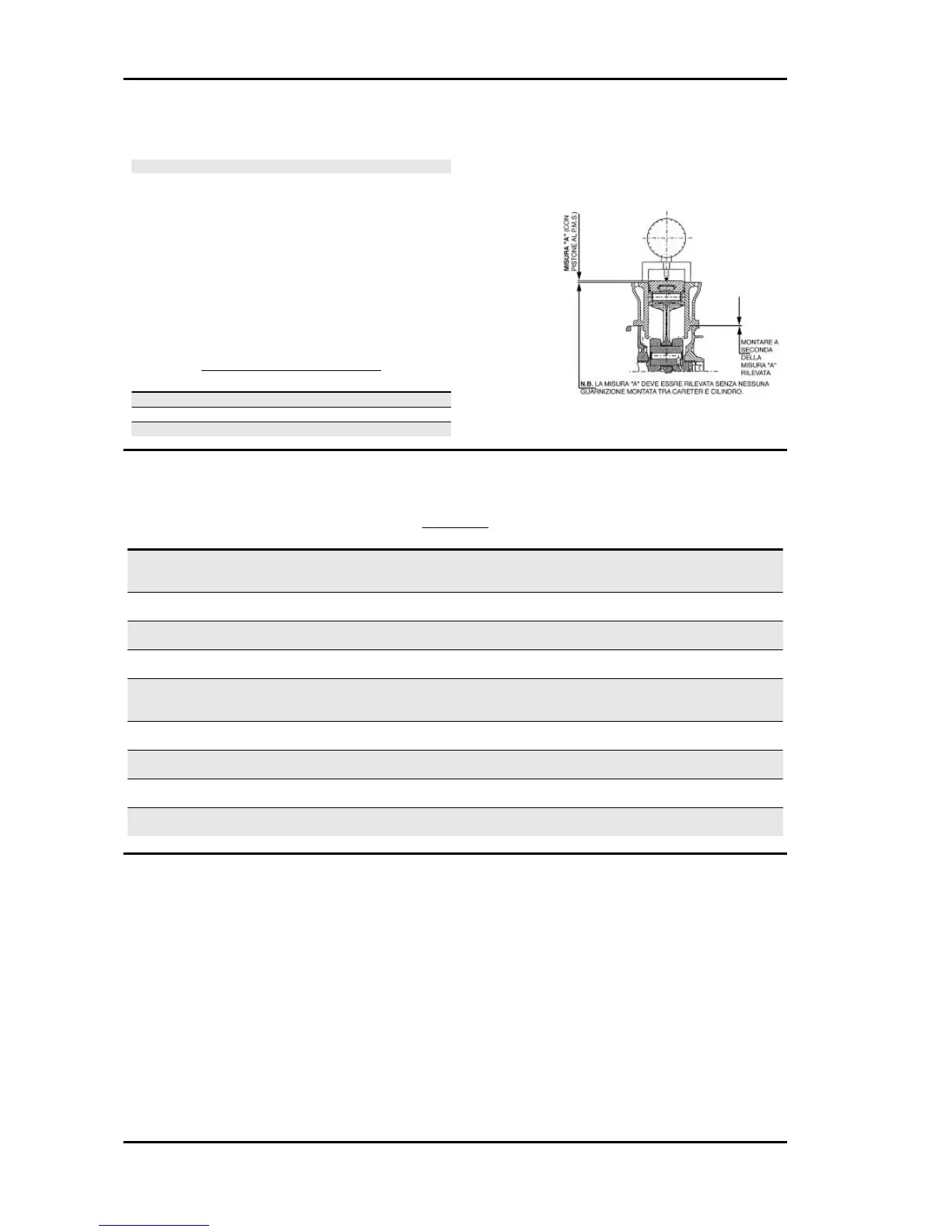

Slot packing system
N.B.
MEASUREMENT "A" TO BE TAKEN IS A VAL-
UE OF PISTON RE-ENTRY, IT INDICATES BY
HOW MUCH THE PLANE FORMED BY THE PIS-
TON CROWN FALLS BELOW THE PLANE
FORMED BY THE TOP OF THE CYLINDER. THE
FURTHER THE PISTON FALLS INSIDE THE
CYLINDER, THE LESS THE BASE GASKET IS
TO BE APPLIED (TO RECOVER THE COM-
PRESSION RATIO) AND VICE VERSA.
ENGINE 250 SHIMMING
Name Measure A Thickness
shimming 3.70 - 3.60 0.4 ± 0.05
shimming 3.60 - 3.40 0.6 ± 0.05
shimming 3.40 - 3.30 0.8 ± 0.05
Products
PRODUCTS
Product
Description Specifications
AGIP GREASE PV2 Grease for steering bearings and spindle
seats
Soap-based lithium and zinc oxide
grease containing NLGI 2; ISO-L-
XBCIB2 of the swinging arm
MONTBLANC MOLYBDENUM
GREASE
Grease for driven pulley shaft adjusting
ring and movable driven pulley housing
Grease with Molybdenum disulphide
AGIP FILTER OIL Oil for air filter sponge Mineral oil with specific additives for in-
creased adhesiveness
AGIP GREASE MU3 Grease for odometer transmission gear
case
Soap-based lithium grease with NLGI 3;
ISO-L-XBCHA3, DIN K3K-20
AGIP CITY HI TEC 4T Engine oil SAE 5W-40 Synthetic oil that exceed the
requirements of API SL, ACEA A3, JASO
MA specifications
AGIP GP 330 Calcium complex soap-based grease
with NLGI 2; ISO-L-XBCIB2
Grease (brake control levers, throttle
grip)
AGIP CITY HI TEC 4T Four-stroke engine oil Lubricating oil for flexible shafts (throttle
control)
AGIP ROTRA 80W-90 Rear hub oil SAE 80W/90 Oil that exceeds the re-
quirements of API GL3 specifications
AGIP PERMANENT SPEZIAL coolant Monoethylene glycol-based antifreeze
fluid, CUNA NC 956-16
Characteristics MSS X9 Evolution 250
CHAR - 18
