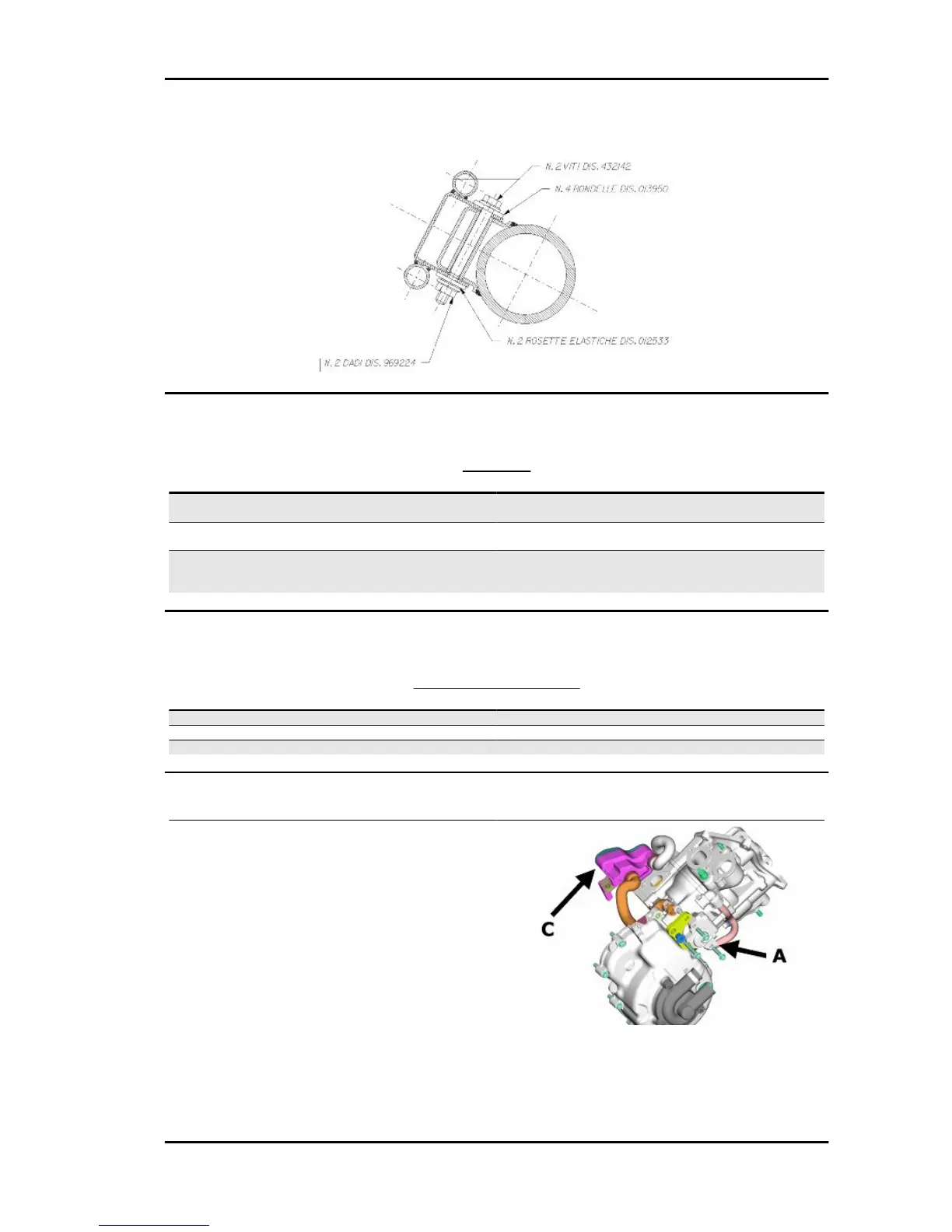

• N°2 nuts drawing 968224
Brakes
BRAKES
Specification Desc./Quantity
Front Twin disc in stainless steel Ø 240 mm with dual-piston floating
calliper Ø 25.4 mm (front right and left)
Rear Ø 240 mm stainless steel disc with Brembo "Serie Oro" floating
calliper with Ø 34 mm twin plungers
Integral braking system Left lever acts on the left front and rear discs, through a valve
that distributes the pressure; the right lever acts on the right
front disc only
Wheels and tyres
WHEELS AND TYRES
Specification
Desc./Quantity
Tyre pressure (when cold) Front: 2.1 bar Rear: 2.3 bar (2.5 bar with driver and luggage)
Tyres Front: 120/70-14" 55P Rear: 140/60-14" 64P
Light alloy rims Front rim: 3.50x14" Rear rim: 3.50x14"
Secondary air
General notes:
The SAS for Quasar 250 Euro 2 engines operates
in a similar manner to the SAS for 2T engines.
The differences are the following:
instead of entering through the muffler as for 2T
engine, the secondary air enters directly in the dis-
charge pipe on the head.
The 2T reed valve has a diaphragm. The unit
"A", indicated in the figure, has a cut-off device
connected to the depression intake on the inlet
MSS X9 Evolution 250 Characteristics
CHAR - 11
