PIAGGIO MSS X9 EVOLUTION 250 - Taillight Assy.; Footrest

Taillight assy.

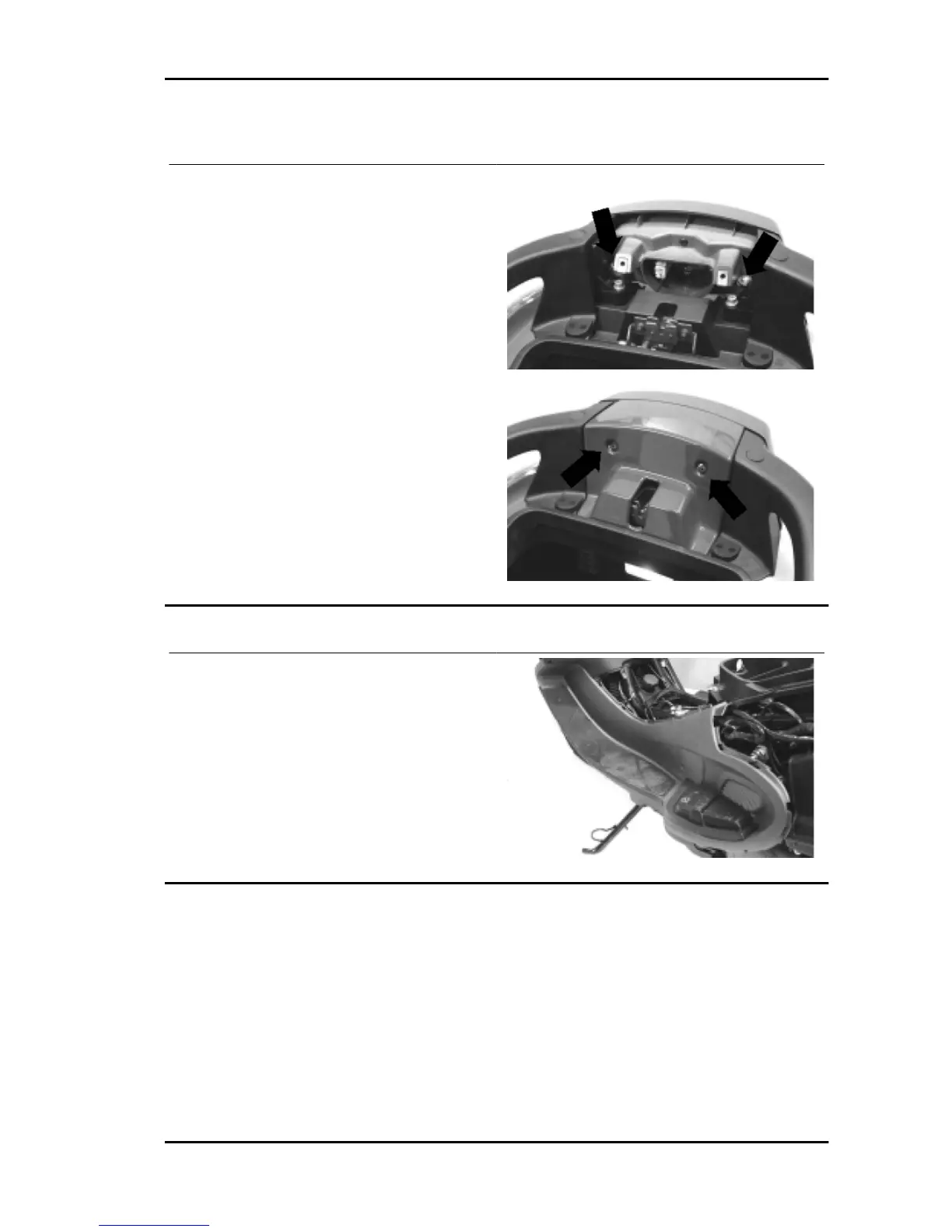

Unscrew the 2 fixing screws of the cover compo-
nent of the saddle coupling;
- Release it from the rear cover and remove it.
- Unscrew the 2 fixing screws indicated on the fig-
ure and remove them;
- Disconnect the stop lights connection wiring;
- Remove the stop lights support (battery cover) by
extracting it upwards so as to disengage the cou-
pling teeth from the side panels.
Footrest
- With the help of a small slotted screwdriver, re-
move the fixing caps and then the safety covers;
- Unscrew the fixing screws on the frame at the
rear shield and at the tunnel cover;
- Remove the footrest board complete with the
passenger boards.
