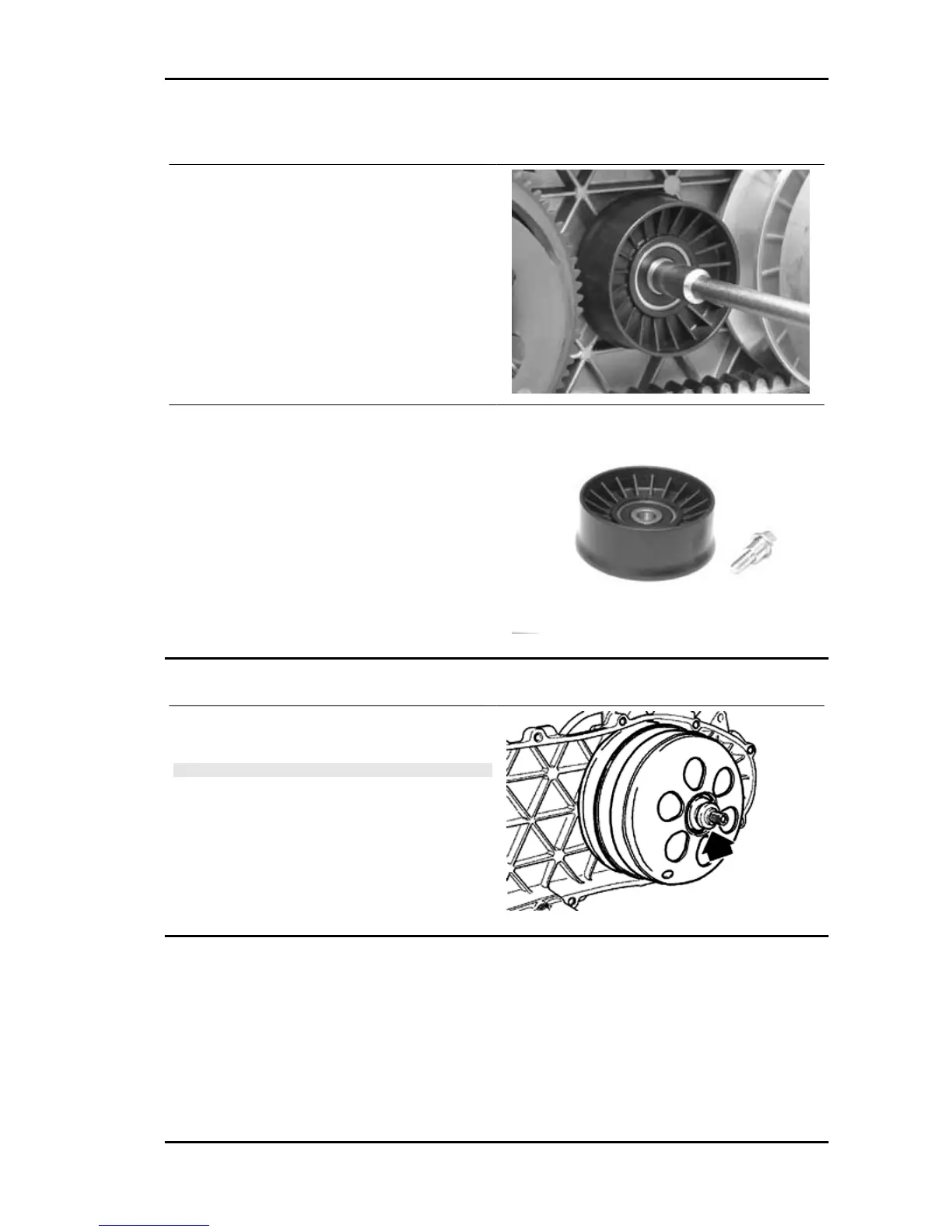

PIAGGIO MSS X9 EVOLUTION 250 - Removing the driven pulley

Plastic roller
- Check that the roller does not show signs of wear
and that it turns freely.
- Remove the special clamping screws as indica-
ted in the photograph
- Check the outside diameter of the roller does not
have defects that could jeopardise belt functioning
- For refitting, place the roller with the belt contain-
ment edge on the engine crankcase side
- Tighten the wrench to the prescribed torque.
Locking torques (N*m)
Anti-flapping roller 12 - 16
Removing the driven pulley
- Remove the spacer, the clutch bell and the whole
driven pulley unit.
N.B.
THE UNIT CAN ALSO BE REMOVED WITH THE DRIVING
PULLEY MOUNTED.
