PIAGGIO MSS X9 EVOLUTION 250 - Crankcase - crankshaft - connecting rod

Crankcase - crankshaft - connecting rod
Characteristic
Driving shaft / crankcase axial clearance
A= 0,15 ÷ 0,43 (when cold)
CRANKSHAFT
Titolo Durata/Valore Testo Breve (< 4000 car.) Indirizzo Immagine
Crankshaft Crankshaft to crankcase axial
clearance
Crankshaft to crankcase axial clearance

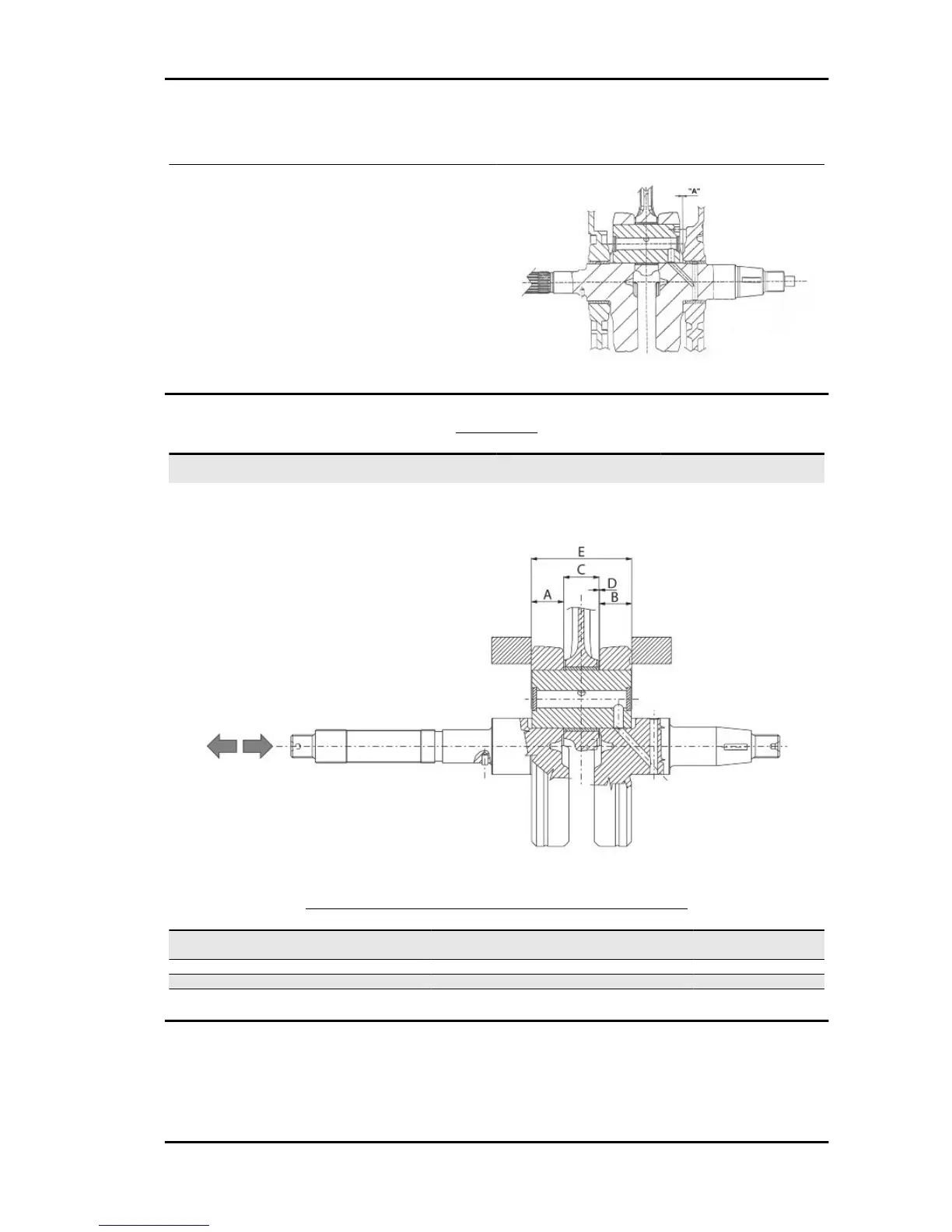

CRANKSHAFT/ CRANKCASE AXIAL CLEARANCE
Name
Description Dimensions Initials Quantity
Half-shaft, transmission
side
16.6 +0-0.05 A D = 0.20 - 0.50
Flywheel-side half-shaft 16.6 +0-0.05 B D = 0.20 - 0.50
Connecting rod 18 -0.10 -0.15 C D = 0.20 - 0.50
Spacer tool 51.4 +0.05 E D = 0.20 - 0.50
MSS X9 Evolution 250 Characteristics
CHAR - 17
