PIAGGIO MSS X9 EVOLUTION 250 - Refitting the starter motor; Cylinder assy. and timing system

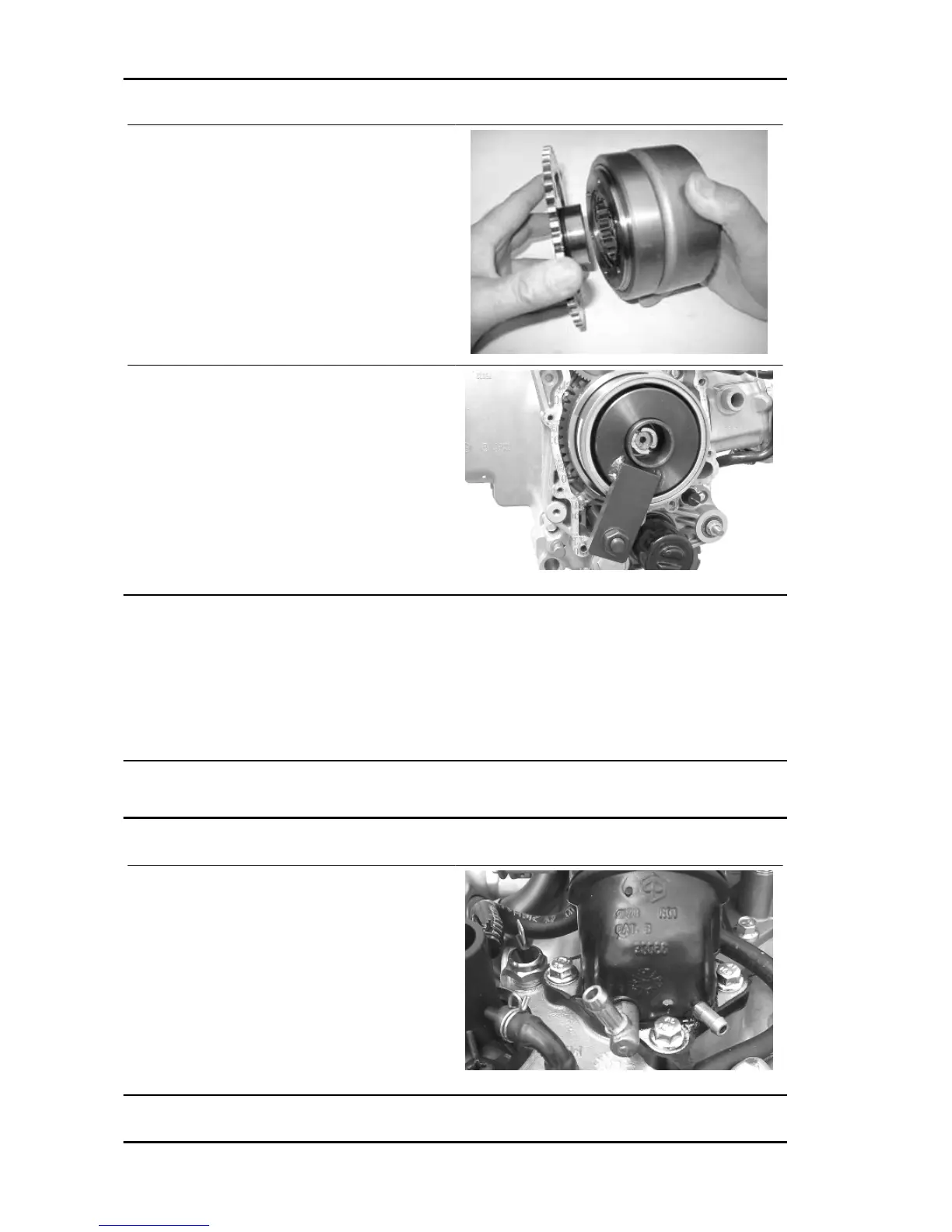

- Insert the free wheel on the flywheel as shown in
the photo
- Then refit the flywheel with free wheel and trans-
mission gear
- Using the special flywheel stop tool, tighten up
the flywheel fixing nut to the prescribed torque
-Refit the retention plate
Specific tooling
020627Y Flywheel lock wrench
Locking torques (N*m)
Flywheel nut 94 ÷ 102
Refitting the starter motor
- Fit a new O-ring on the starter motor and lubricate it.
- Fit the starter on the crankcase, locking the two screws to the prescribed torque.
Locking torques (N*m)
Starter motor screws 11 ÷ 13
Cylinder assy. and timing system
Removing the intake manifold
- Loosen the 3 crews and remove the intake mani-
fold.
