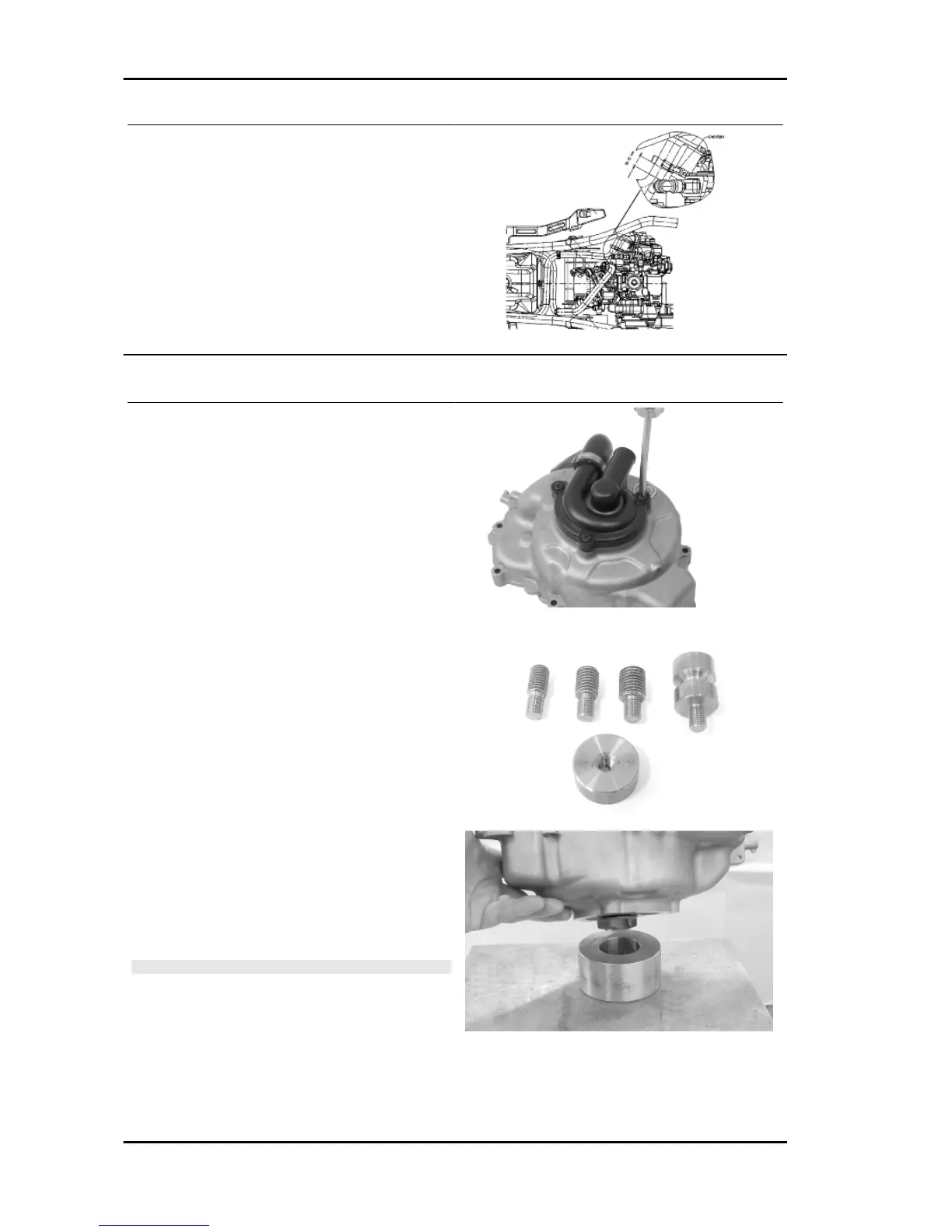

Cooling plant
We inform you that a tubes case spring has been
added starting with frame number
ZAPM2300004501449, in order to prevent possi-
bile contacts between the pump/radiator tube and
the secondary air tube. Place the spring at the dis-
tance indicated in the drawing.
Water pump - overhaul
- Remove the complete flywheel cover
- Remove the stator
- Remove the pump cover by loosening the 3 fixing
screws
- Remove the sealing gasket
The pump can be services using the special tool
and a press. The special tool is designed to be
used with the presses most commonly found in
workshops. For those presses equipped with a 35-
mm piston and protective cap with fixing screw, it
is sufficient to remove the cap and install the com-
ponents of the special tool in its place. The special
tool can be prepared in advance depending on its
use on presses equipped with piston with a threa-
ded type of coaxial coupling tang or cylindrical with
stop groove. Then prepare the threaded ring with
the adapter suitable for the coupling of the press
used.
- Position the flywheel cover in the hydraulic press
by inserting the impeller in the ring that is part of
the special tool, as shown in the photo
N.B.
POSITION THE BASE WITH THE SURFACE PROVIDED
WITH BETTER FINISH TURNED TOWARDS THE FLY-
WHEEL COVER. FAILURE TO COMPLY WITH THIS IN-
STRUCTION MAY RESULT IN DETERIORATION OF THE
SURFACE INTENDED FOR THE COOLANT'S SEAL.
Specific tooling
020628Y Water pump service kit
Cooling system MSS X9 Evolution 250
COOL SYS - 194
