PIAGGIO MSS X9 EVOLUTION 250 - Fuses

Stop lights
12V-2,3W x 5
Rear position lights
12V-5W x 2
Front turn indicator bulbs
Front turn indicator bulbs 12V-10W x 2
Front position lights
12V-5W x 2
Upper beam light
12V-55W
Dipped beam light
12V-55W
Fuses

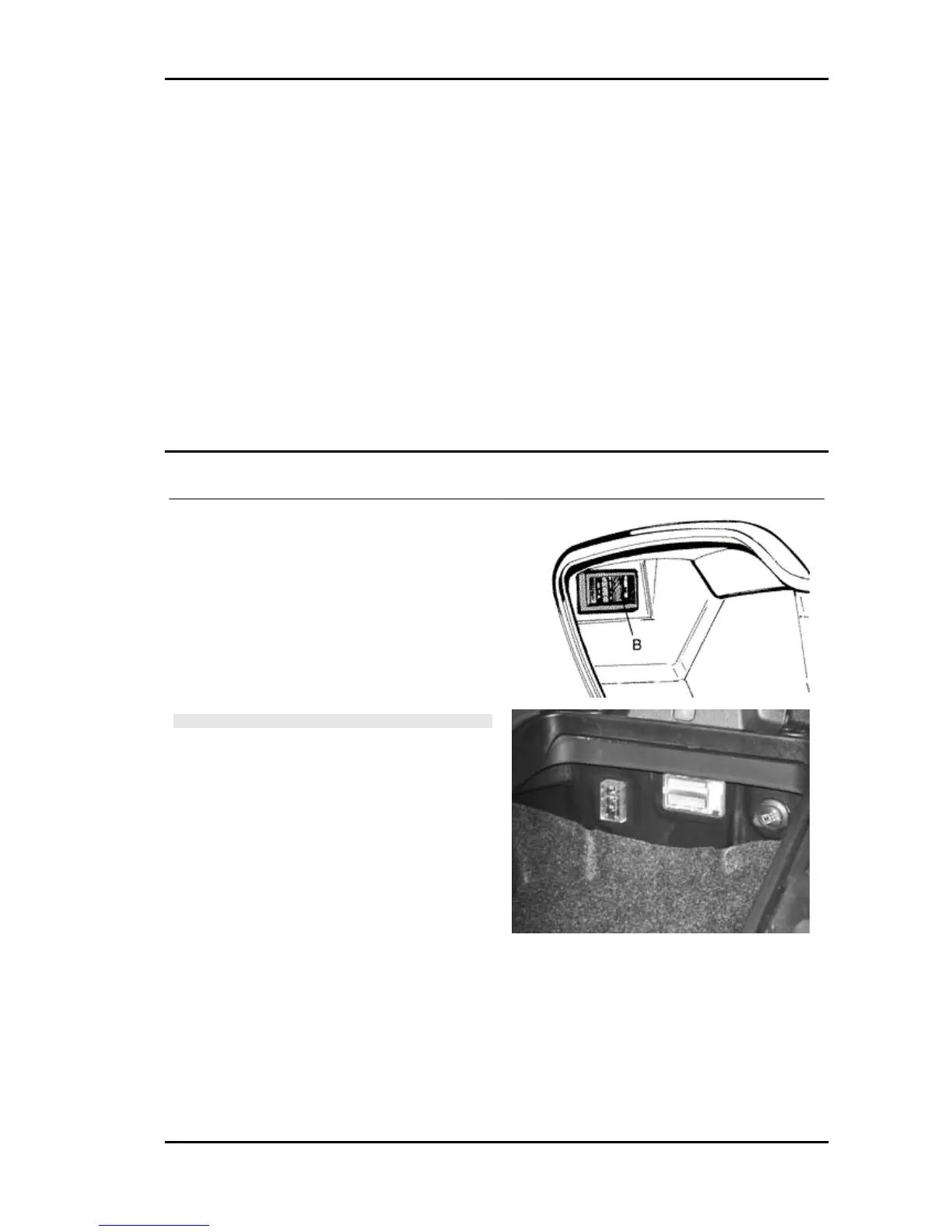

The electric system is equipped with:
- four protective fuses «A» into the helmet com-
partment,
- four fuses «B» for the system circuitry safety, lo-
cated inside the port in the rear left side of the
shield.
The tables shows the features of the fuses on the
vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE
THE FAILURE THAT CAUSED IT TO BLOW. NEVER TRY
TO REPLACE THE FUSE USING ANY OTHER MATERIAL
(A PIECE OF ELECTRICAL WIRE, FOR EXAMPLE) OR A
FUSE OF A DIFFERENT RATING THAN THAT SPECIFIED.
Electric characteristic
Light indicator on digital instrument panel,
front and rear side/taillights
7.5 A
Digital instrument panel, diagnostic led indi-
cator on analogue instrument.
10 A
Brake lights, vehicle start-up enabling signal
7.5 A
Horn, upper beam and indicator on "Passing"
function
10 A
MSS X9 Evolution 250 Electrical system
ELE SYS - 69
