PIAGGIO MSS X9 EVOLUTION 250 - Dashboard

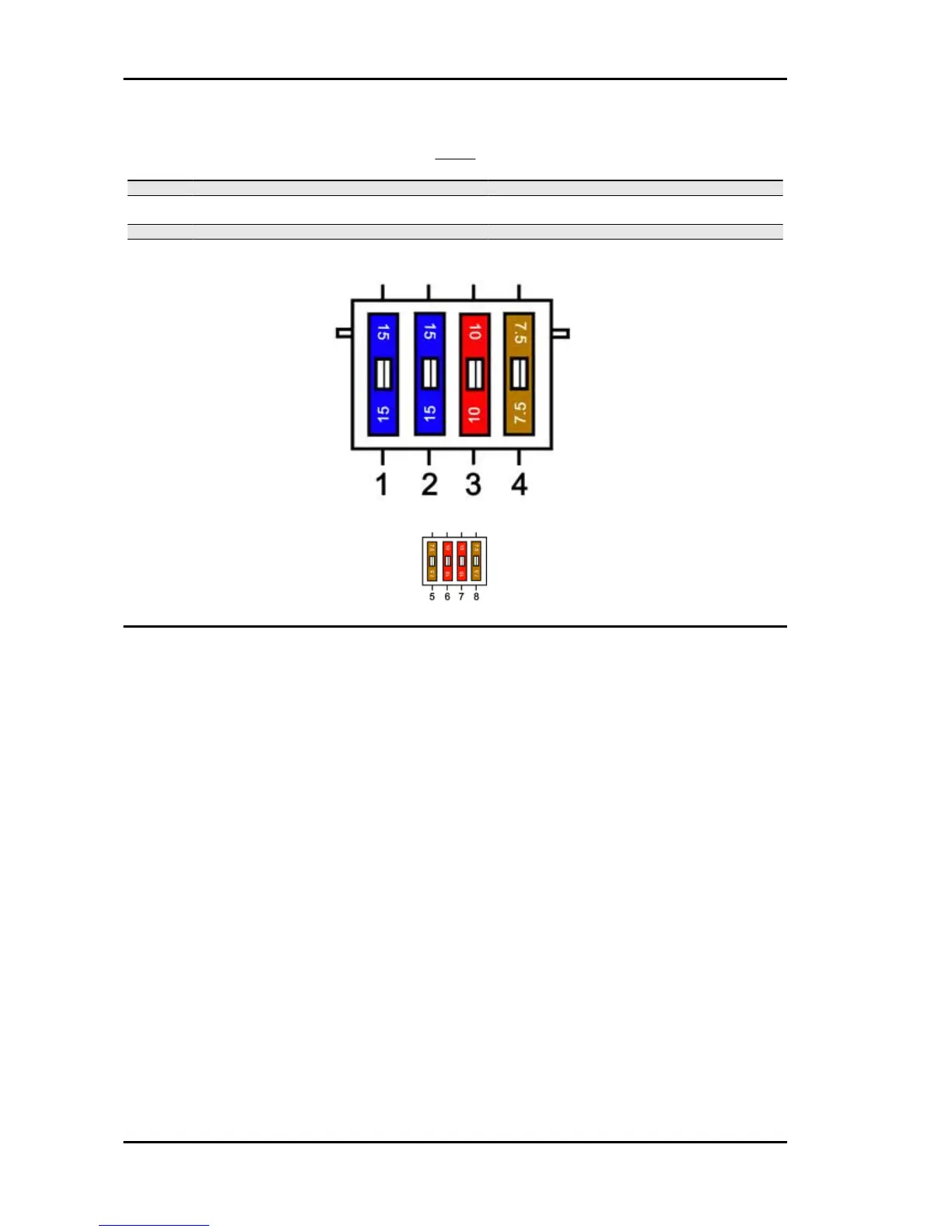

FUSES
Specification Desc./Quantity
1 Helmet compartment, 12-V socket 15 A
2 General (battery recharge, lights, radiator electric fan,
electronic control unit).
15 A
3 Headlight (upper and dipped beams). 10 A
4 Digital instrument panel 7.5 A
Dashboard
Vehicle X9 is provided with an instrument panel divided into 2 sections: the analogue section is fixed
into the cap while the digital section is integral to the handlebar.
The analogue section includes:
- Tachometer with dual scale (MPH/KMH) controlled by the fifth wheel;
- RPM counter controlled by the signal sent by the H.V. coil.
- Fuel level indicator controlled by a resistive sensor (into the tank)
- Cooling fluid temperature indicator controlled by a resistive sensor (on the head)
These instruments are electrical and managed by stepping motors.
The instrument panel digital section is completed by a liquid crystal display and 4 control buttons.
The display has 3 icons:
- Oil
- Service
- Belt
- The «Oil» icon flashes when 1,000 Km are reached, after that every 3,000 Km.
- The «Service» icon flashes when 1,000 Km or 1 year is reached. After that, it flashes every 6,000 km
or 1 year.
- The «Belt» icon warns the user of the need of replacing the driving belt. This occurs every 12,000 Km
