Headlights and automatic starter section

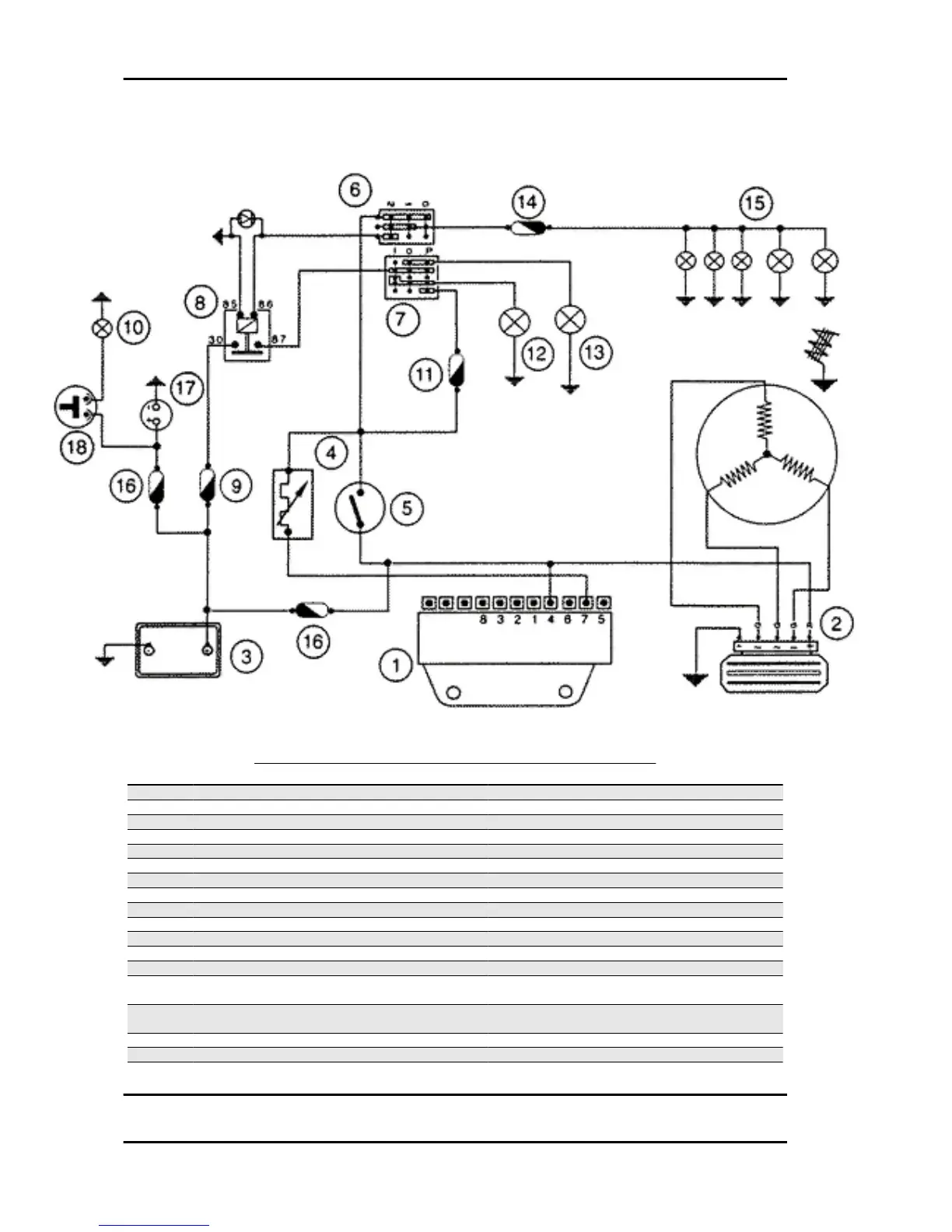

HEADLIGHTS AND AUTOMATIC STARTER SECTION
Specification
Desc./Quantity
1 Electronic control unit
2 Voltage regulator
3 Battery 12V 12Ah
4 Automatic starter
5 Key switch contacts
6 Light switch
7 Light switch
8 Light remote control switch
9 Fuse (headlight remote control protection) 10 A
10 Helmet compartment lamp bulb 12V-5W
11 Fuse (upper beam protection) 10 A
12 Bulb for upper beams 12V-55W
13 Bulb for dipped beams 12V-55W
14 Fuse (Rear position light protection, number plate light,
front position light)
7.5A
15 Bulbs N° 2 12v-3w front pos. Lights, n° 2 12v-5w rear pos.
Lights, n° 1 12v-5w number plate light
16 Fuse 15A
17 Socket for users 12V - 180W max
18 Helmet compartment lighting button
Electrical system MSS X9 Evolution 250
