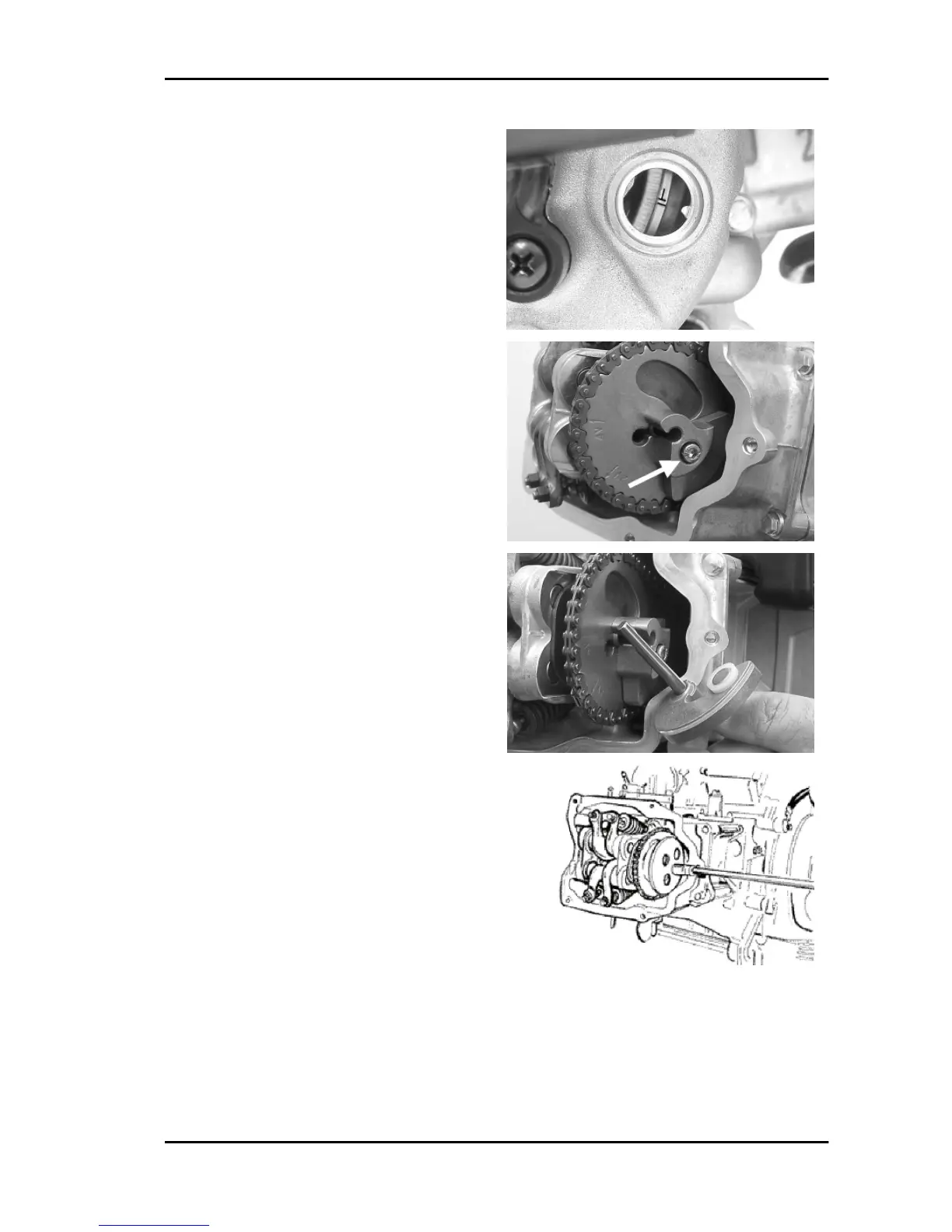

GREASE THE END STOP RING TO PREVENT IT COMING
OUT AND FALLING INTO THE ENGINE.
Locking torques (N*m)
Timing chain tensioner support screw 11 ÷ 13
Spark plug 12 ÷ 14 Starter ground screw 7 ÷ 8.5
Timing chain tensioner slider screw 10 ÷ 14
Starter ground support screw 11 ÷ 15 Timing
chain tensioner central screw 5 - 6 Camshaft re-
tention plate screw 4 ÷ 6
MSS X9 Evolution 250 Engine
ENG - 127
