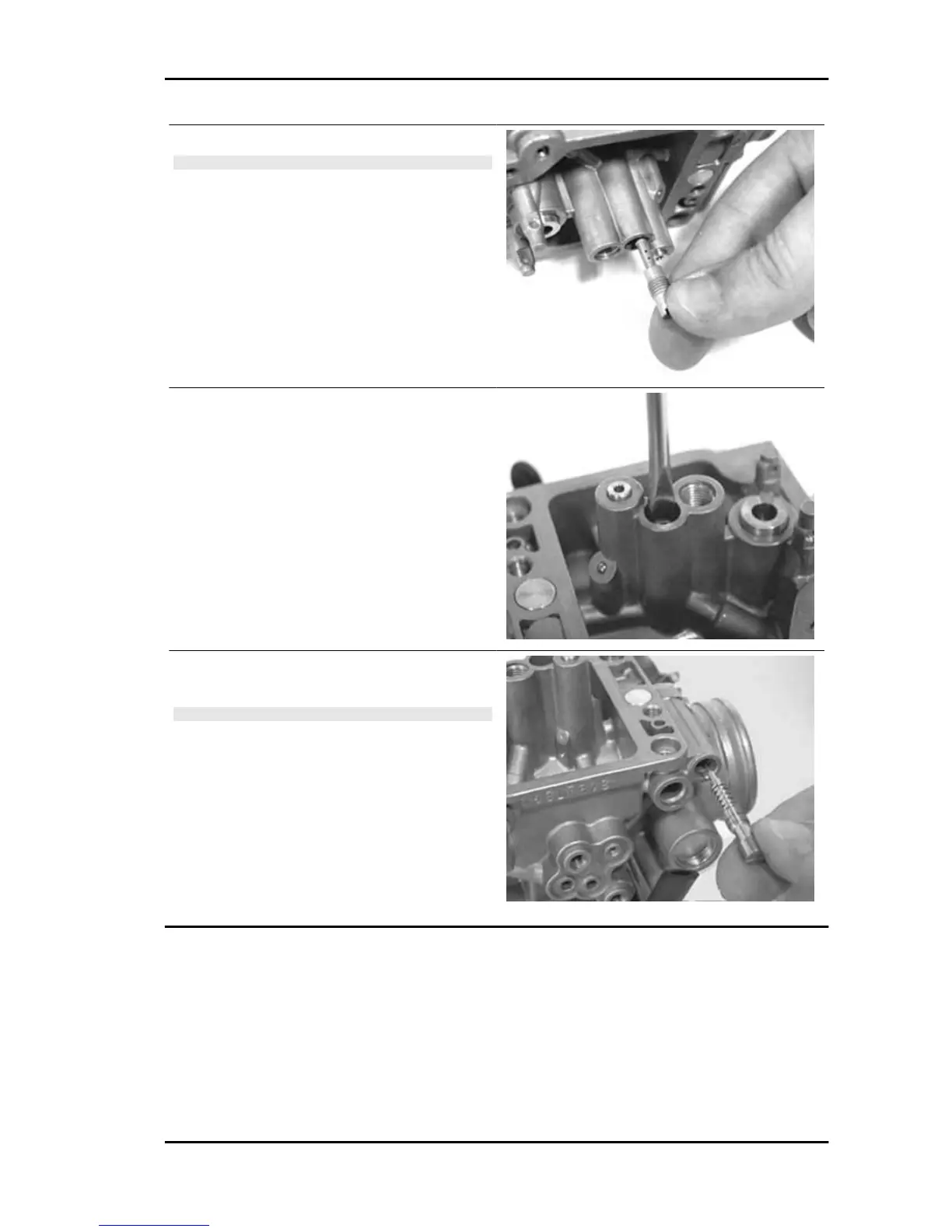

- Remove the sprayer.
N.B.
WHEN CLEANING THE CARBURETTOR BODY REMOVE
THE SPRAYER TO AVOID LOSING PARTS. IF THE SPRAY-
ER IS FORCED IN ITS HOUSING DO NOT ATTEMPT TO
REMOVE IT AS THIS WILL ONLY DAMAGE IT.
-Remove the minimum nozzle.
- Remove the minimum flow set screw and the
spring.
CAUTION
DO NOT ATTEMPT REMOVING PARTS EMBEDDED IN THE
CARBURETTOR BODY SUCH AS: FUEL SUPPLY PIPE,
PLUNGER HOUSING, STARTER NOZZLE, PIT COVER FOR
PROGRESSIONS AND INLET NOZZLE, MINIMUM AND
MAXIMUM AIR GAUGE, THROTTLE VALVE CONTROL
SHAFT. DO NOT REMOVE THROTTLE-SHAFT CONNEC-
TION SCREWS. THE FIXING SCREWS ARE CAULKED AF-
TER ASSEMBLY AND THEIR REMOVAL DAMAGES THE
SHAFT.
MSS X9 Evolution 250 Engine
ENG - 149
