Recovery of the Servo Firmware Program of the Drive Unit

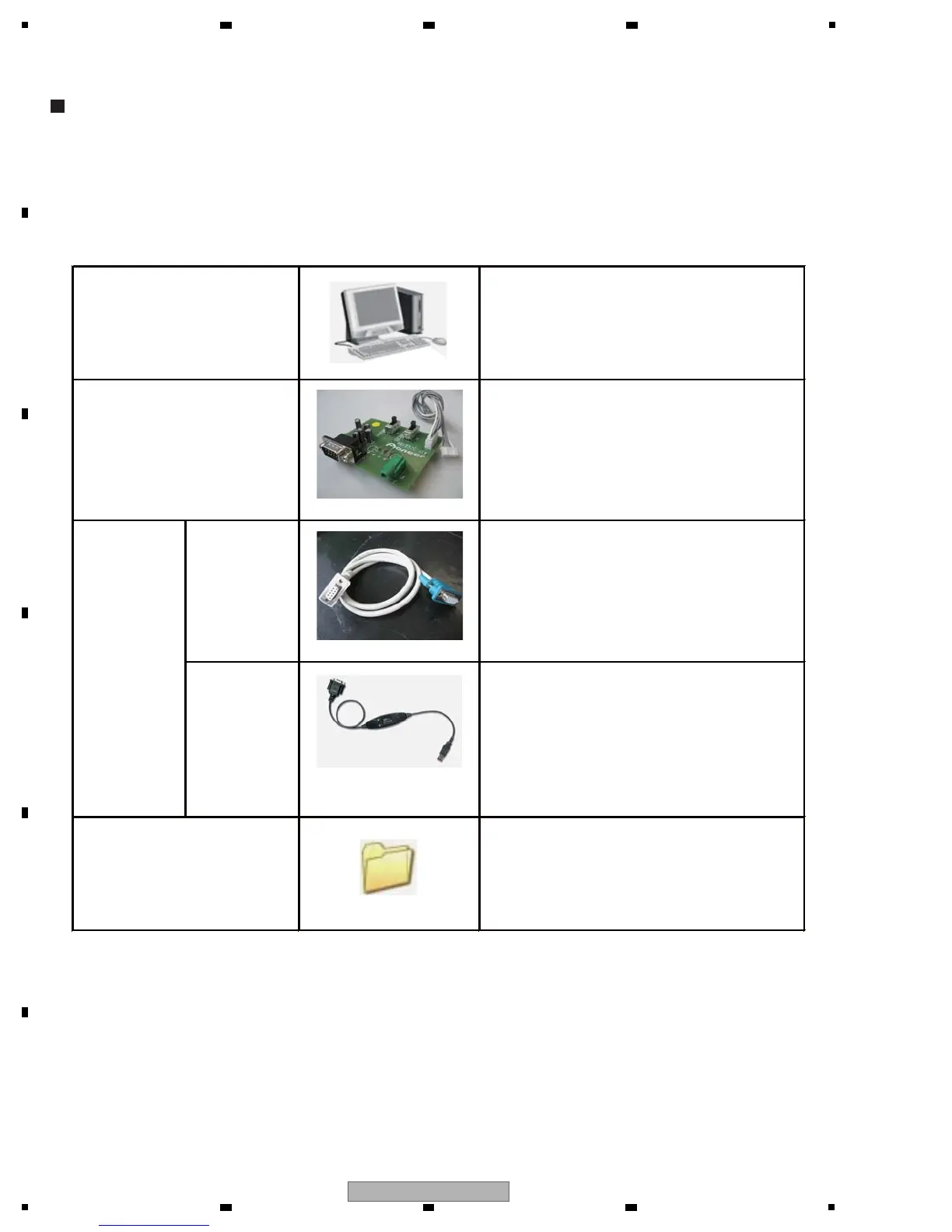

Items to be prepared
Recovery of the servo firmware program of the drive unit cannot be performed in a simple way using a USB storage
device. After recovering the flash memory to a normal state, using the serial download software, perform updating
again. The following items are required for recovery:
PC
Folder name: mep7000srv
Commercially available cable
Rs_dwl.exe
dl_01.bin
dl.bat
Mep7000srv.bin
RS-232C cable
Serial download software
RS-232C conversion board
USB serial
converter
GGD1583
(REX-USB60F by RATOC)
GGF1490
Conversion board for relaying the SRV 1/SRV 2
Assy with the PC (Cable for the PH connector
supplied)
Straight cable for DOS/V (9-pin female and 9-pin
female)
A USB connector of the PC can be used if a
USB-RS-232C conversion adaptor is used.
The dedicated USB driver software must be
downloaded from the Web site of RATOC Systems,
Inc.
Connecting
cable between
the RS-232C
conversion
board and the
PC
Windows 98, XP, 2000, or Vista must have been
installed on the PC. (Proper operation with the
English and Japanese versions of the above
operating systems has been confirmed.)
