Pioneer MEP-7000 Service Manual

130
MEP-7000
1
2 3 4
A
B
C
D
E
F
1
2 3 4

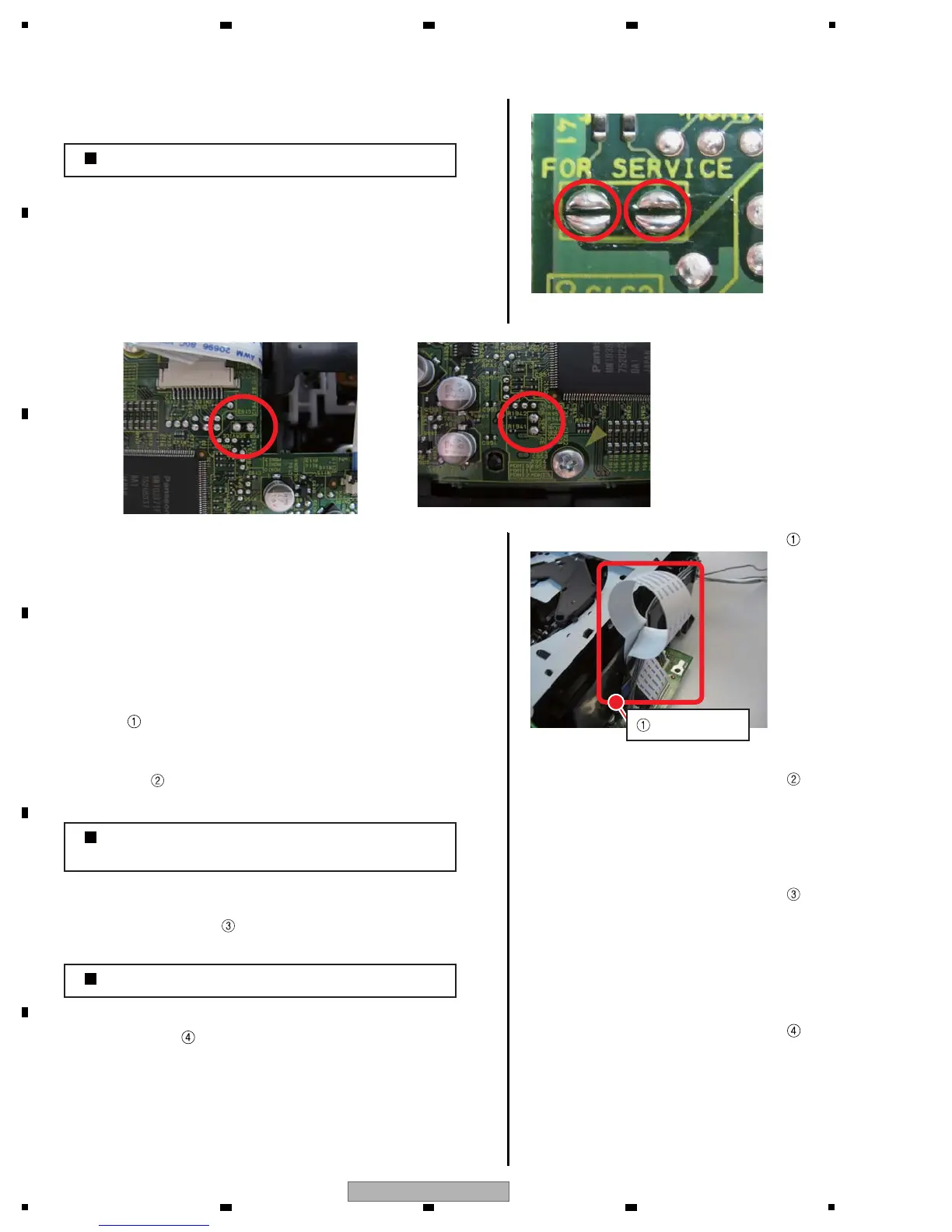

Short-circuit pads for recovery
Short-circuit pads on the SERVO 1 Assy Short-circuit pads on the SERVO 2 Assy
Turn the drive unit off, by pressing its POWER key.
Disconnect the control unit from the drive unit.
Dress the FFC cable (40-pin) so that it will not be damaged.
To connect to a USB connector of the PC
FFC (40pin)
Set SODC (IC106/IC906) to Writing mode.
For the SRV 2 Assy, use CN908.
Connect CN907 on the SRV 2 Assy with
CN353 on the SMAIN Assy.
Short-circuit the two short-circuit pads for recovery on the
SRV Assy.
Disconnect the SRV Assy on which the firmware you wish to
recover is mounted from the drive unit, with the DVD/CD
drive attached. Make connections as shown in “Connection
configuration for recovery” on the previous page.
Connect the PH connector (CN107) for power supply on the
SRV 1 Assy and the PH connector (CN352) on the SMAIN
Assy with the PH cable for power supply (cable of this
unit/5-pin).
Connect the connector for service (CN108) on the SRV 1
Assy and the connector on the RS-232C conversion board
with the PH cable (6-pin) supplied with the conversion
board.
Use a USB serial converter. The dedicated USB driver
software must have been downloaded from the Web site
of RATOC Systems, Inc.
Connect the RS-232C conversion board with the PC, using
an RS-232C cable .
in “Connection configuration for recovery”
in “Connection configuration for recovery”
in “Connection configuration for recovery”
in “Connection configuration for recovery”
Memo:
Memo:
Memo:

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
