24 - ATR244 - User manual
10 Reading and confi guration through NFC

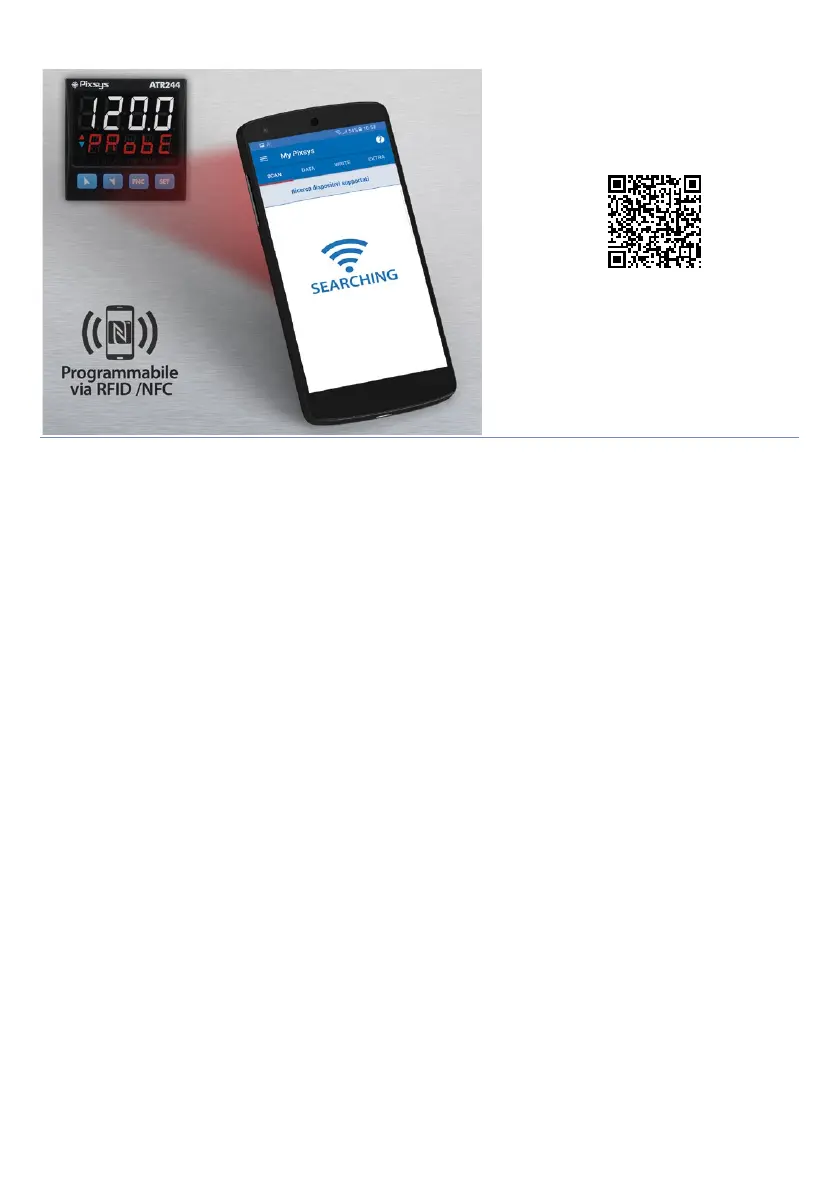

Scan the Qr-Code
to download the App
on Google Play Store®
The controller ATR244 is supported by the App MyPixsys: using an ANDROID smartphone with NFC
connection it is possible to program the device without using a dedicaded equipment. The App allows
to read, set and backup all parameters which are stored into the internal memory of Pixsys devices.
Procedure:
• Identify the position of the NFC antenna on the smartphone (usually central, behind the back cover)
or to one of the sides in case of metal chassis. The ATR244’s antenna is placed on the frontal panel,
under the function keys.
• Make sure that the NFC sensor of the phone is enabled or that there are no metal materials between
the phone and the device (ex. aluminium cover or with magnetic stand)
• It is useful to eneable the system sounds on the smartphone, as the notifi cation sound confi rms
that the device has correctly been detected.
The App interface is provided with four tabs: SCAN, DATA, WRITE, EXTRA.
Select the fi rst tab
“SCAN”
to read data stored into the internal memory of the device; place the
smartphone in contact with the controller frontal panel, making sure that the phone’s antenna
matched with that of the controller.
Once detected the device, the App emits a notifi cation sounds and proceeds with the model identifi -
cation and the reading of the parameters.
The graphic interface shows the advancement and switches to the second tab
“DATA”
. It is now poissbile
to move the smartphone away from the controller to make the required modifi cations more easily.
The device parameters are divided into collapsible groups and are displayed with name, current value
and reference index to the manual.
Click on a row to open the setting screen of the related parameter with the detailed view of available
options (in case of multiple choice parameters) or of the minimum/maximum/decimals limits (for
numeric parameters), included the text description (as per section n. 11 of the user manual). Once
selected the chosen value, the related row will be updated and underlined into the tab
“DATA”
(hold
down the line to cancel modifi cations).
To download the new confi guration on your device, select the third tab
“WRITE”
, place again the
smartphone in contact with the controller and wait for the notifi cation.
