User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
The page includes the following fields:
Object Description
• LAG
The LAG for the settings contained in the same row.
• Name
Display the current name.
• Type
Display the current type.
• Link State
Display the link state.
• Active Member
Display the active member.
• Standby Member
Display the standby member.
• Modify
Click
to modify LAG configuraiton.
4.4.3 LAG Port Setting

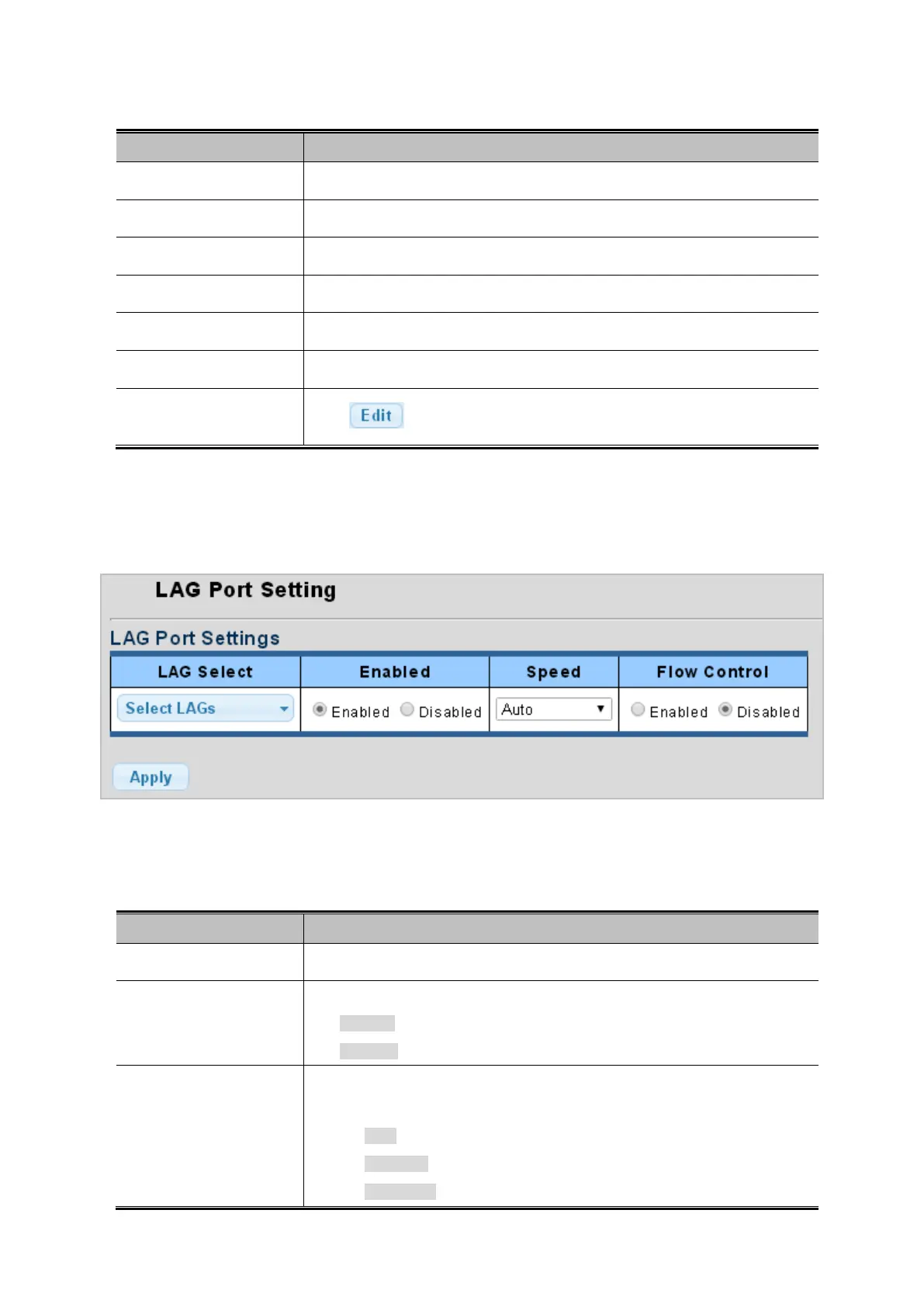

This page allows setting configuration for per LAG. The LAG Port setting screens in Figure 4-4-6 and Figure 4-4-7 appear.
Figure 4-4-6: LAG Port Setting Information Page Screenshot
The page includes the following fields:
Object Description
• LAG Select
Select LAG number for this drop down list.
• Enabled
Indicates the LAG Port Setting operation. Possible state are:
Enabled - Start up the LAG manually.
Disabled - Shutdown the LAG manually.
• Speed
Select any available link speed for the given switch port. Draw the menu bar to
select the mode.
Auto - Setup Auto negotiation.
Auto-10M - Setup 10M Auto negotiation.
Auto-100M - Setup 100M Auto negotiation.
