Planet GS-4210-24T2S User Manual

User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
260
The page includes the following fields:
Object Description
• DHCP Snooping
Indicates the DHCP snooping mode operation. Default mode is Disabled and
possible modes are:
 Enabled: Enable DHCP snooping mode operation.
When enable DHCP snooping mode operation, the request
DHCP messages will be forwarded to trusted ports and only
allowed reply packets from trusted ports.
 Disabled: Disable DHCP snooping mode operation.
Button
: Click to apply changes.

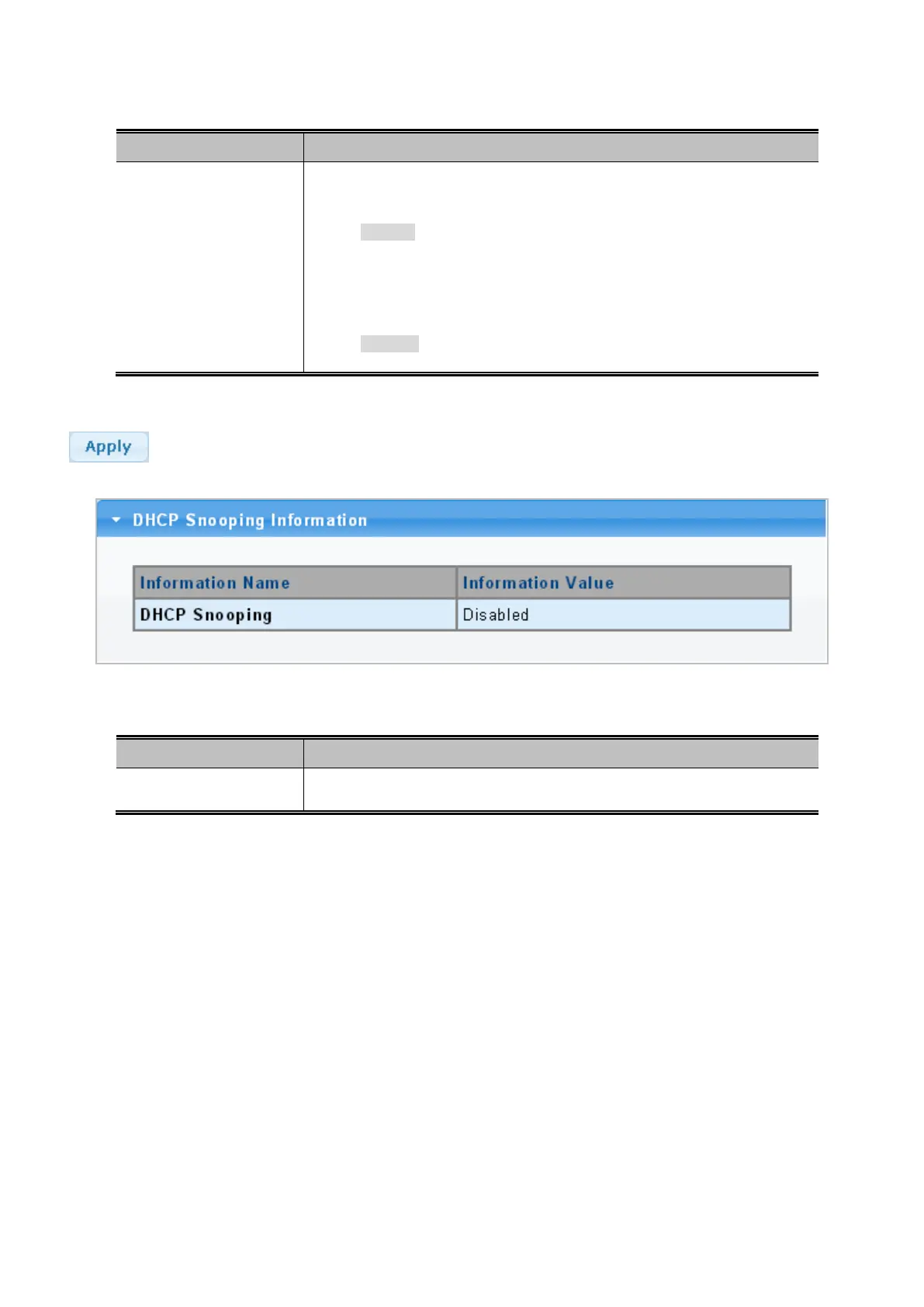

Figure 4-9-15: DHCP Snooping Information Page Screenshot
The page includes the following fields:
Object Description
• DHCP Snooping
Display the current DHCP snooping status.
4.9.3.3 VLAN Setting
Command Usage
• When DHCP snooping is enabled globally on the switch, and enabled on the specified VLAN, DHCP packet filtering will be
performed on any untrusted ports within the VLAN.
• When the DHCP snooping is globally disabled, DHCP snooping can still be configured for specific VLANs, but the changes
will not take effect until DHCP snooping is globally re-enabled.
• When DHCP snooping is globally enabled, and DHCP snooping is then disabled on a VLAN, all dynamic bindings learned for
this VLAN are removed from the binding table.
The DHCP Snooping VLAN Setting screens in Figure 4-9-16 and Figure 4-9-17 appear.

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
