4.7.4.3 MLD Group Table
This page provides MLD Group Table. The MLD Group Table screen in Figure 4-7-27 appears.

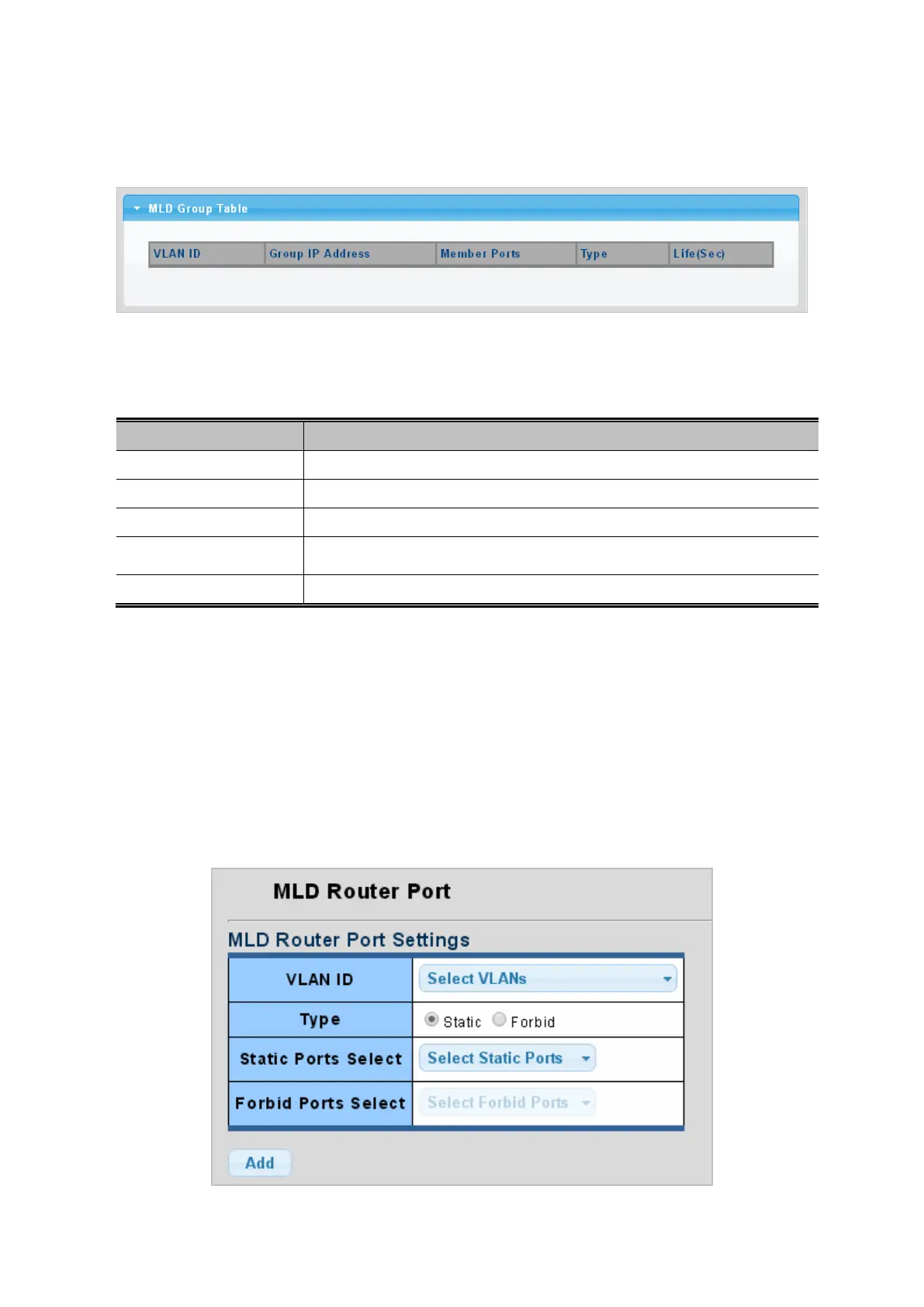

Figure 4-7-27: MLD Group Table Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
Display the current VID.
• Group IP Address
Display multicast IP address for a specific multicast service.
• Member Port
Display the current member port.
• Type
Member types displayed include Static or Dynamic, depending on selected
options.
• Life(Sec)
Display the current life.
4.7.4.4 MLD Router Setting
Depending on your network connections, MLD snooping may not always be able to locate the MLD querier. Therefore, if the
MLD querier is a known multicast router/ switch connected over the network to an interface (port or trunk) on your Managed
Switch, you can manually configure the interface (and a specified VLAN) to join all the current multicast groups supported by the
attached router. This can ensure that multicast traffic is passed to all the appropriate interfaces within the Managed Switch.
The MLD Router Setting screens in Figure 4-7-28 and Figure 4-7-29 appear.
Figure 4-7-28: Add Router Port Page Screenshot

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
