4.8.4.2 Class Mapping

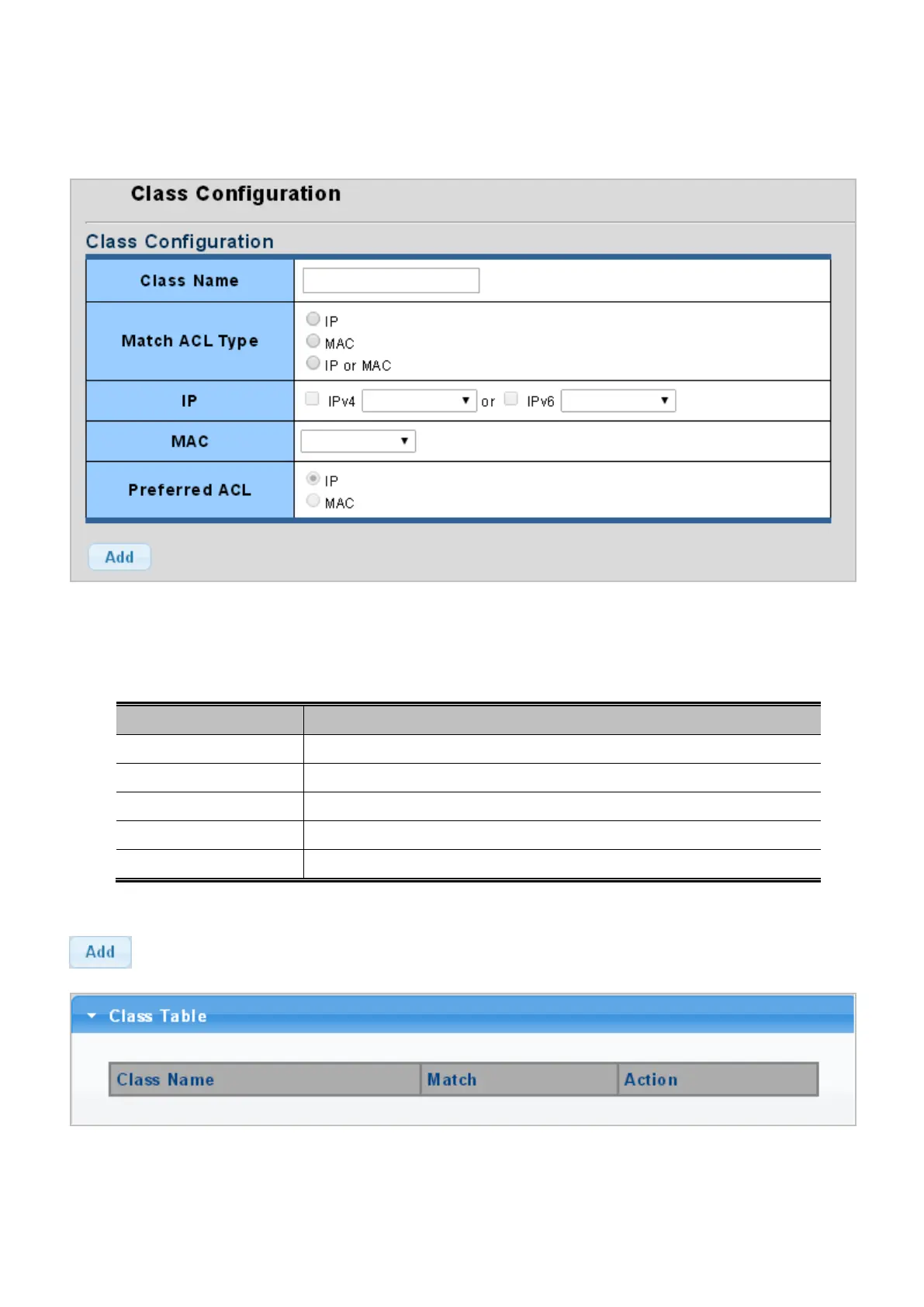

The QoS Class Mapping and Class Mapping status screens in Figure 4-8-19 and Figure 4-8-20 appear.
Figure 4-8-19: QoS Class Mapping Page Screenshot
The page includes the following fields:
Object Description
• Class Name
Input the class name and 32 characters allowed.
• Match ACL Type
Choose “IP”, “MAC” or “IP or MAC” as match ACL type.
• IP
Choose “IPv4” or “IPv6”.
• MAC
Choose specific MAC adrress.
• Preferred ACL
Choose “IP” or “MAC” for preferred ACL.
Button
: Click to add Class Mapping profile entry.
Figure 4-8-20: QoS Class Mapping Table Page Screenshot

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
