Planet GS-4210-24T2S User Manual

User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
41
3.3 Administration Console
The administration console is an internal, character-oriented, and command line user interface for performing system
administration such as displaying statistics or changing option settings. Using this method, you can view the administration
console from a terminal, personal computer, Apple Macintosh, or workstation connected to the Managed Switch's console port.
There are two ways to use this management method: via direct access or modem port access. The following sections describe
these methods. For more information about using the console, refer to Chapter 5 Command Line Interface Console
Management.

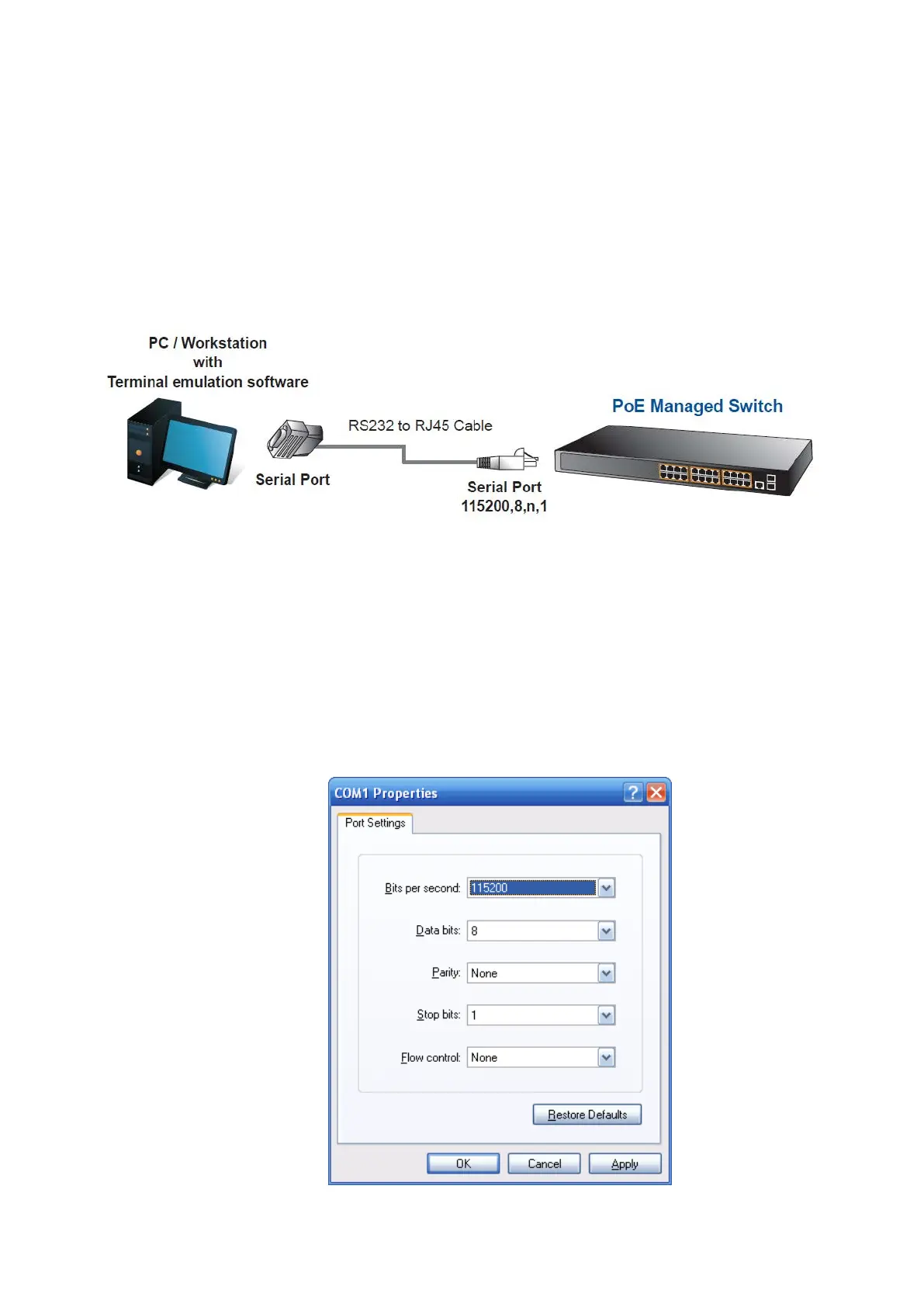

Figure 3-1: Console Management
Direct Access
Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a
terminal-emulation program (such as HyperTerminal) to the Managed Switch console (serial) port. When using this
management method, a straight RS-232 to RJ45 cable is required to connect the switch to the PC. After making this
connection, configure the terminal-emulation program to use the following parameters:
The default parameters are:
 115200 bps
 8 data bits
 No parity
 1 stop bit
Figure 3-2: Terminal Parameter Settings

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
