User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
137

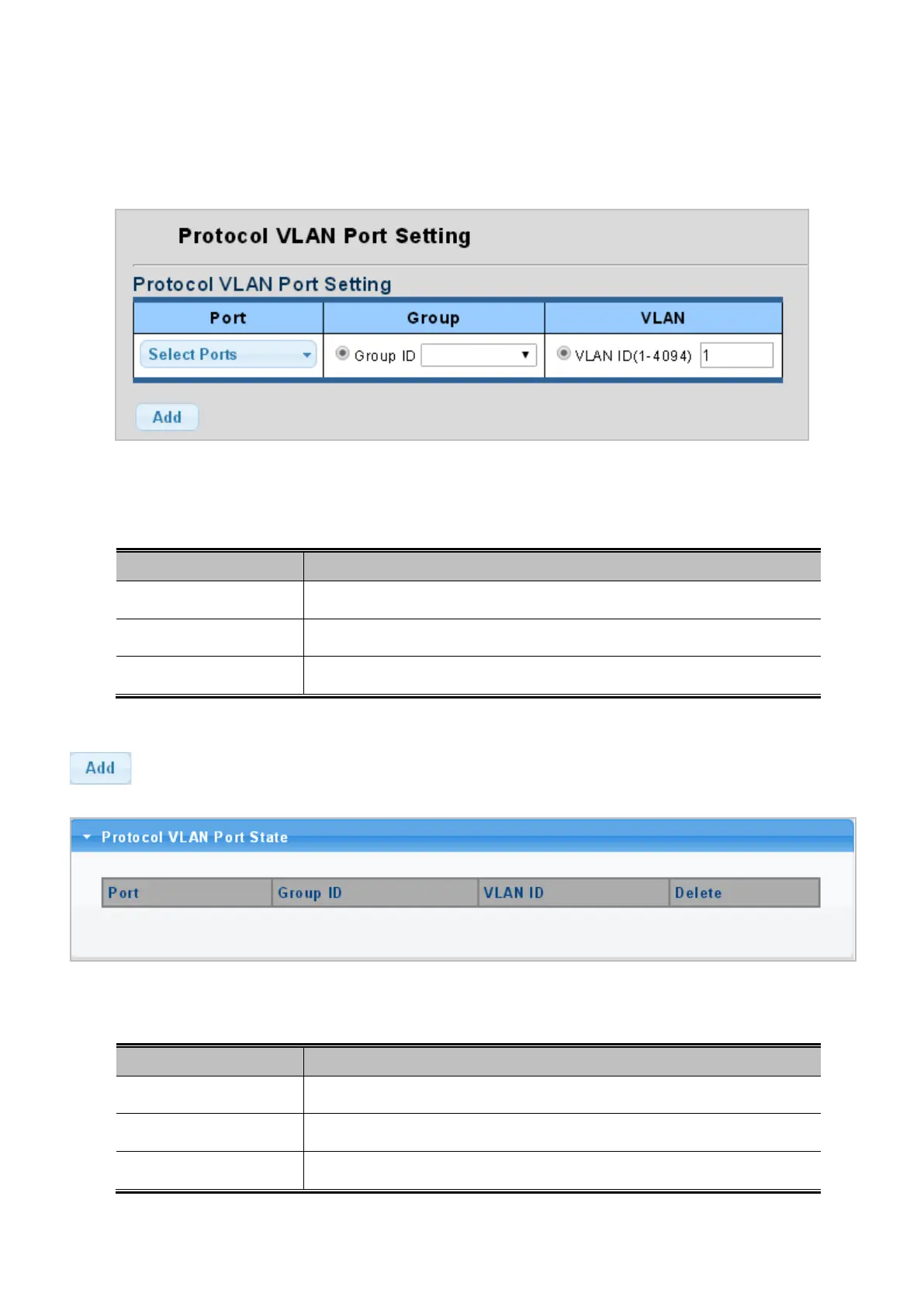

4.5.9 Protocol VLAN Port Setting
This Page allows you to map a already configured Group Name to a VLAN/port for the switch. The Protocol VLAN Port
Setting/State screens in Figure 4-5-11 and Figure 4-5-12 appear.
Figure 4-5-11: Protocol VLAN Port Setting Page Screenshot
The page includes the following fields:
Object Description
• Port
Select port for this drop down list to assign protocol VLAN port.
• Group
Select group ID for this drop down list to protocol VLAN group.
• VLAN
VLAN ID assigned to the Special Protocol VLAN Group.
Button
: Click to add protocol VLAN port entry.
Figure 4-5-12: Protocol VLAN Port State Page Screenshot
The page includes the following fields:
Object Description
• Port
Display the current port.
• Group ID
Display the current group ID.
• VLAN ID
Display the current VLAN ID.

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
