The page includes the following fields:
Object Description
• Group ID
Protocol Group ID assigned to the Special Protocol VLAN Group.
• Frame Type
Frame Type can have one of the following values:
 Ethernet II
 IEEE802.3_LLC_Other
 RFC_1042
Note: On changing the Frame type field, valid value of the following text field will
vary depending on the new frame type you selected.
• Protocol Value
(0x0600-0xFFFE)
Valid value that can be entered in this text field depends on the option selected
from the the preceding Frame Type selection menu.
Valid values for frame type ranges from 0x0600-0xfffe
Button
: Click to apply changes.

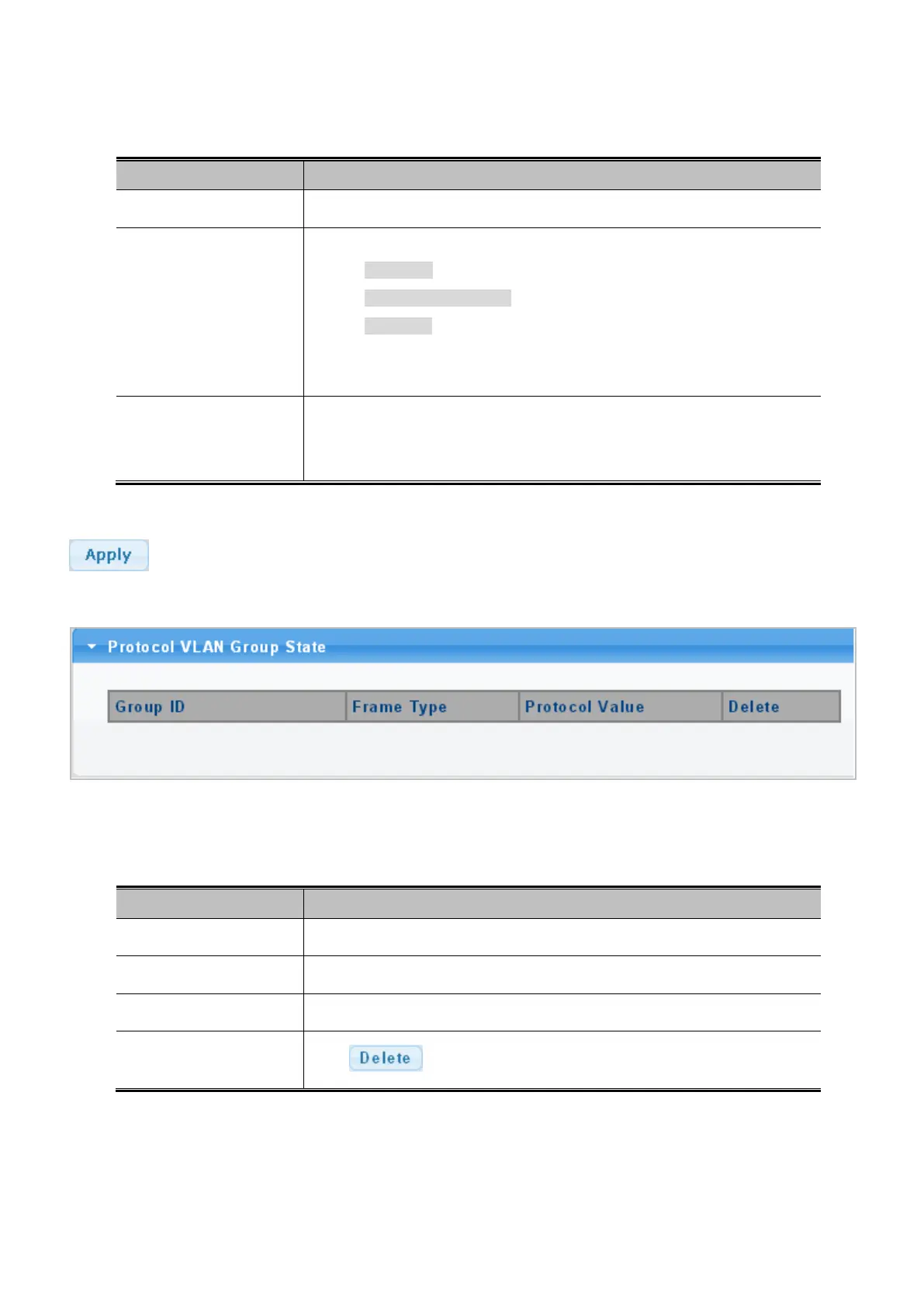

Figure 4-5-10: Protocol VLAN Group State Page Screenshot
The page includes the following fields:
Object Description
• Group ID
Display the current group ID.
• Frame Type
Display the current frame type.
• Protocol Value
Display the current protocol value.
• Delete
Click
to delete the group ID entry.

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
