Users Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
285
4.9.7 DoS
The DoS is short for Denial of Service, which is a simple but effective destructive attack on the internet. The server under DoS
attack will drop normal user data packet due to non-stop processing the attacker’s data packet, leading to the denial of the
service and worse can lead to leak of sensitive data of the server.
Security feature refers to applications such as protocol check which is for protecting the server from attacks such as DoS. The
protocol check allows the user to drop matched packets based on specified conditions. The security features provide several
simple and effective protections against Dos attacks while acting no influence on the linear forwarding performance of the
switch.
4.9.7.1 Global DoS Setting

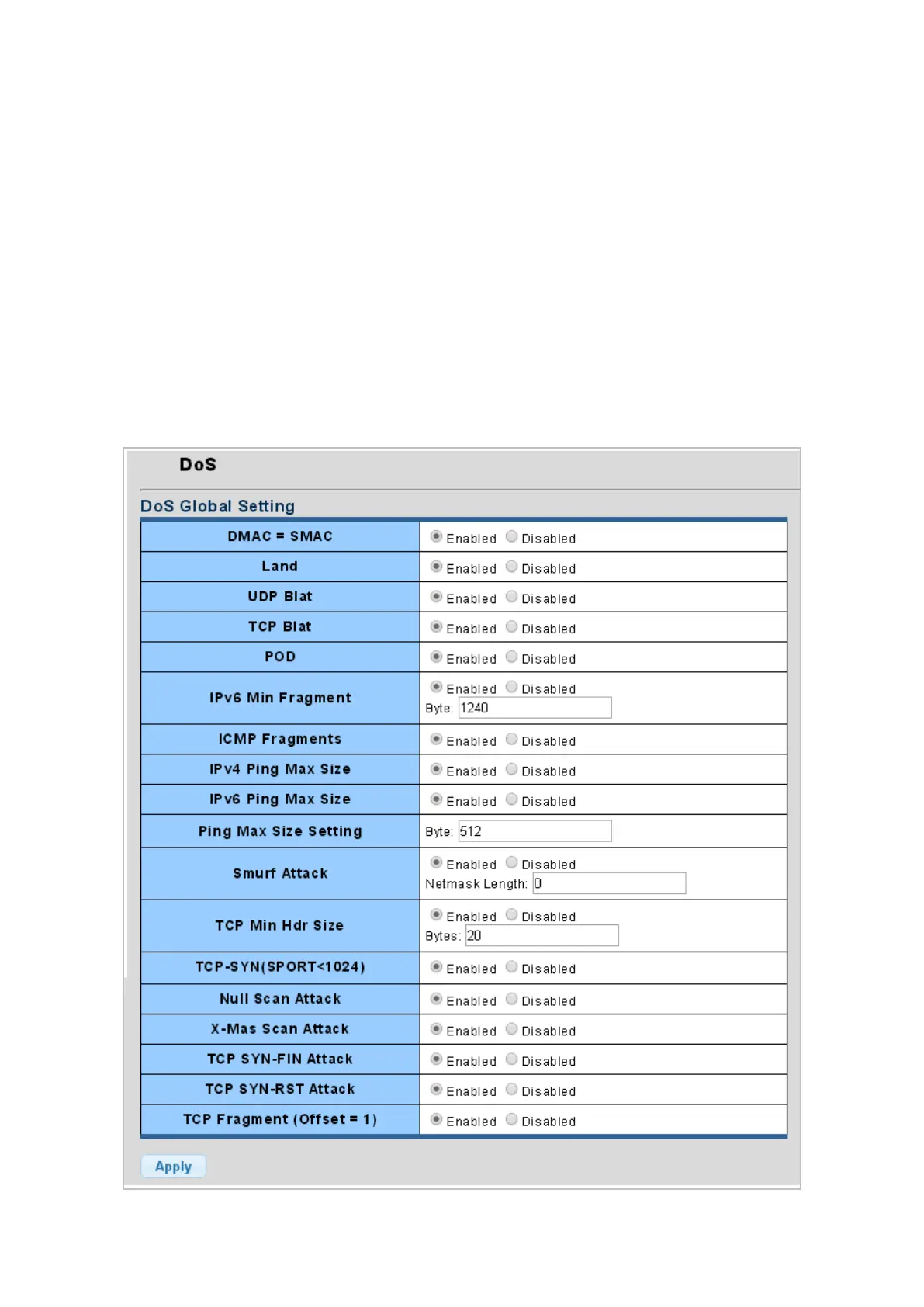

The Global DoS Setting and Information screens in Figure 4-9-44 and Figure 4-9-45 appear.
Figure 4-9-44: Global DoS Setting Page Screenshot

Table of Contents

Other manuals for Planet GS-4210-24T2S

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Planet GS-4210-24T2S and is the answer not in the manual?

Planet GS-4210-24T2S Specifications

General IconGeneral
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo
Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithmsHTTPS, SNMP
Throughput38.6 Mpps
Jumbo frames9216
MAC address table8000 entries
Supported network protocolsIPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable-
Form factor1U
CertificationFCC Part 15 Class A, CE
Product colorBlue
LED indicatorsLink, Power, System
Housing materialMetal
Input current0.8 A
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)14 W
Heat dissipation47 BTU/h
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 95 %
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth207 mm
Width445 mm
Height45 mm
Weight2100 g
