Users Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
278

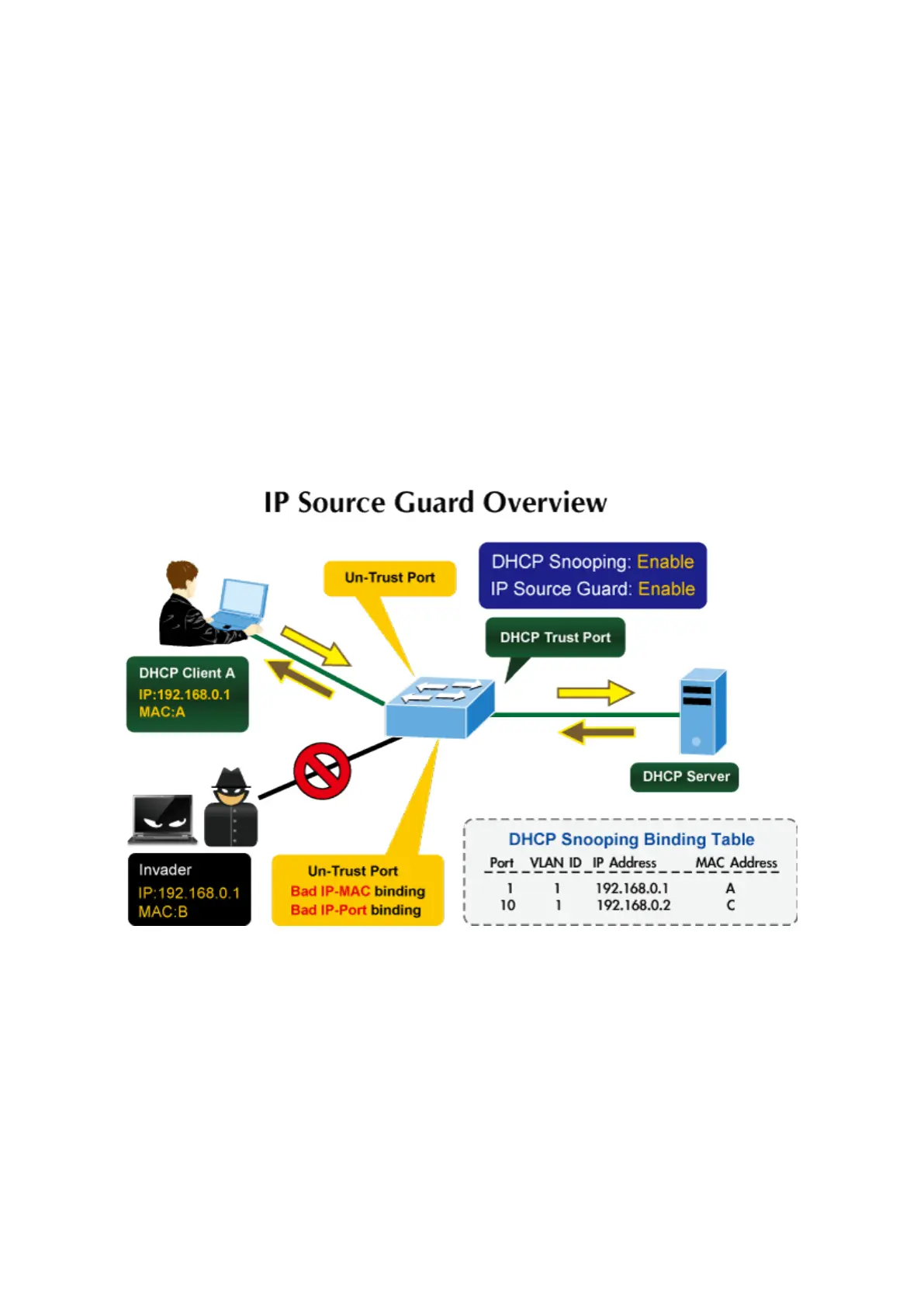

4.9.5 IP Source Guard
IP Source Guard is a secure feature used to restrict IP traffic on DHCP snooping untrusted ports by filtering traffic based on the
DHCP Snooping Table or manually configured IP Source Bindings. It helps prevent IP spoofing attacks when a host tries to
spoof and use the IP address of another host.
After receiving a packet, the port looks up the key attributes (including IP address, MAC address and VLAN tag) of the packet in
the binding entries of the IP source guard. If there is a matching entry, the port will forward the packet. Otherwise, the port will
abandon the packet.
IP source guard filters packets based on the following types of binding entries:
IP-port binding entry
MAC-port binding entry
IP-MAC-port binding entry

Table of Contents

Other manuals for Planet GS-4210-24T2S

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Planet GS-4210-24T2S and is the answer not in the manual?

Planet GS-4210-24T2S Specifications

General IconGeneral
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo
Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithmsHTTPS, SNMP
Throughput38.6 Mpps
Jumbo frames9216
MAC address table8000 entries
Supported network protocolsIPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable-
Form factor1U
CertificationFCC Part 15 Class A, CE
Product colorBlue
LED indicatorsLink, Power, System
Housing materialMetal
Input current0.8 A
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)14 W
Heat dissipation47 BTU/h
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 95 %
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth207 mm
Width445 mm
Height45 mm
Weight2100 g
