4.4.6 LAG Status

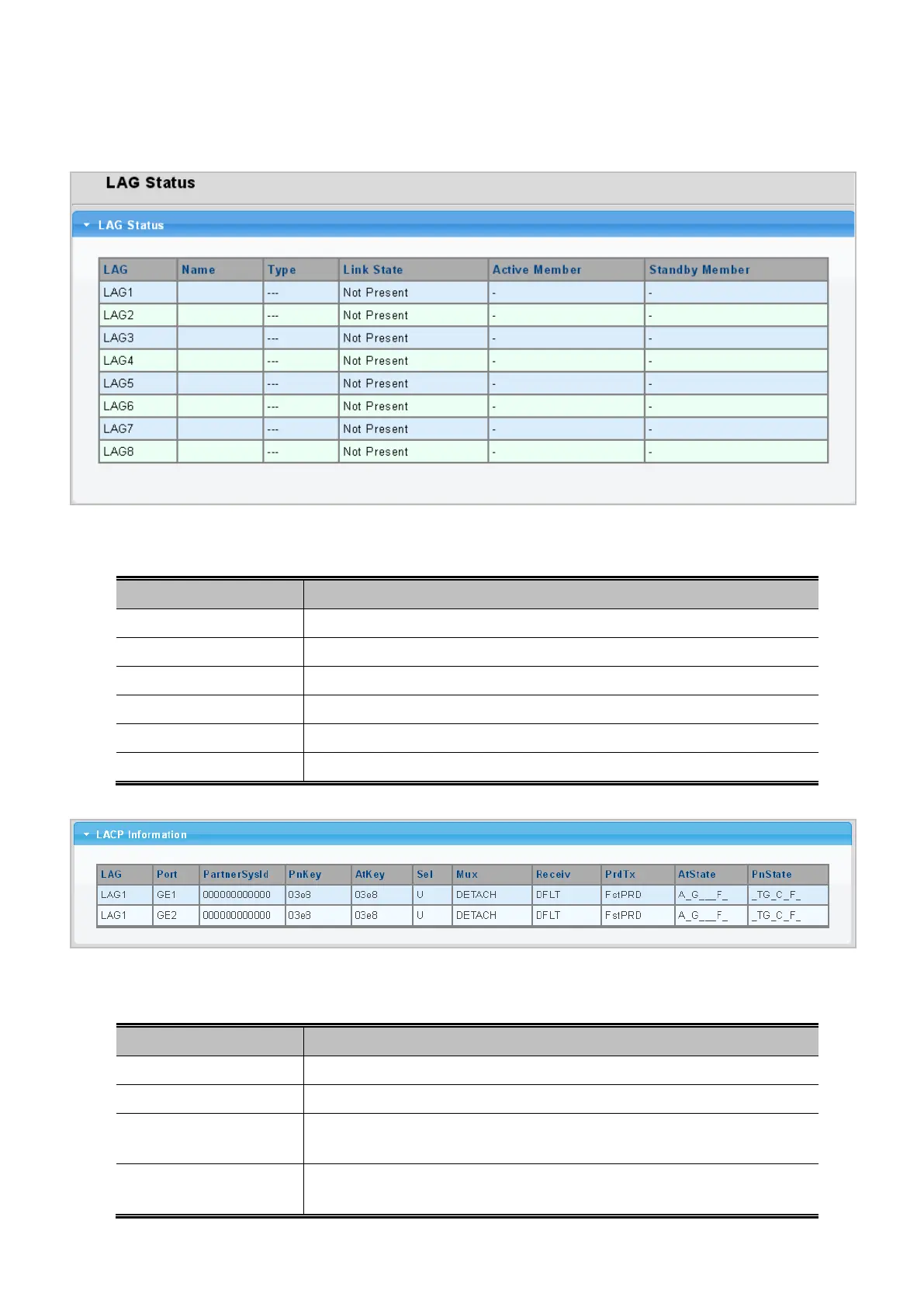

This page displays LAG status. The LAG Status screens in Figure 4-4-12 and Figure 4-4-13 appear.
Figure 4-4-12: LAG Status Page Screenshot
The page includes the following fields:
Object Description
• LAG
Display the current trunk entry.
• Name
Display the current LAG name.
• Type
Display the current trunk type.
• Link State
Display the current link state.
• Active Member
Display the current active member.
• Standby Member
Display the current standby member.
Figure 4-4-13: LACP Information Page Screenshot
The page includes the following fields:
Object Description
• LAG
Display the current LAG ID.
• Port
Display the current port number.
• PartnerSysId
The system ID of link partner. This field would be updated when the port receives
LACP PDU from link partner.
• PnKey
Port key of partner. This field would be updated when the port receives LACP
PDU from link partner.

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
